Pinpoint Test K: Poor Vehicle Tracking During Anti-Lock Function

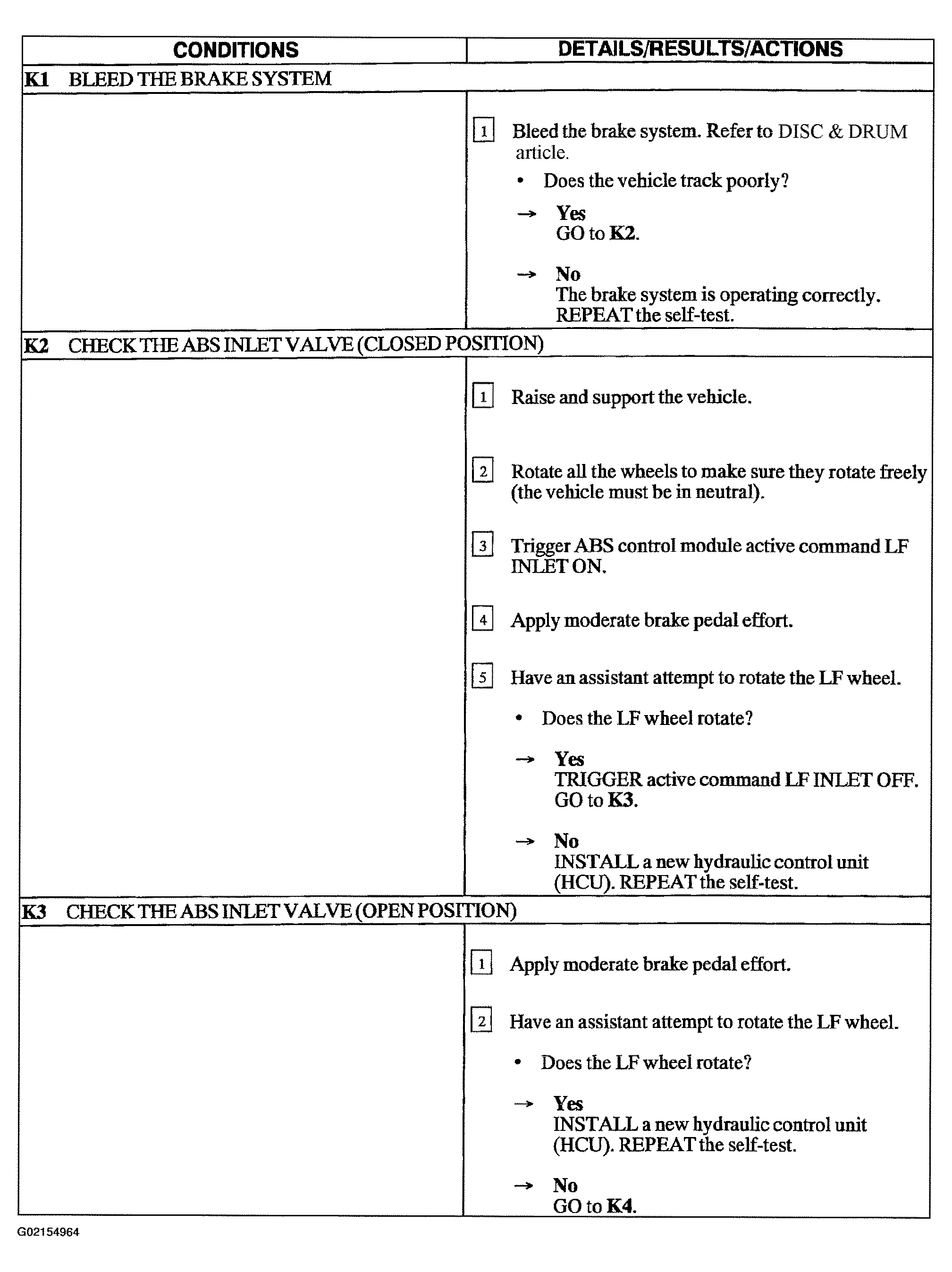

Fig 1: Pinpoint Test K: Poor Vehicle Tracking During Anti-Lock Function (Steps K1-K3)

Courtesy of FORD MOTOR CO.

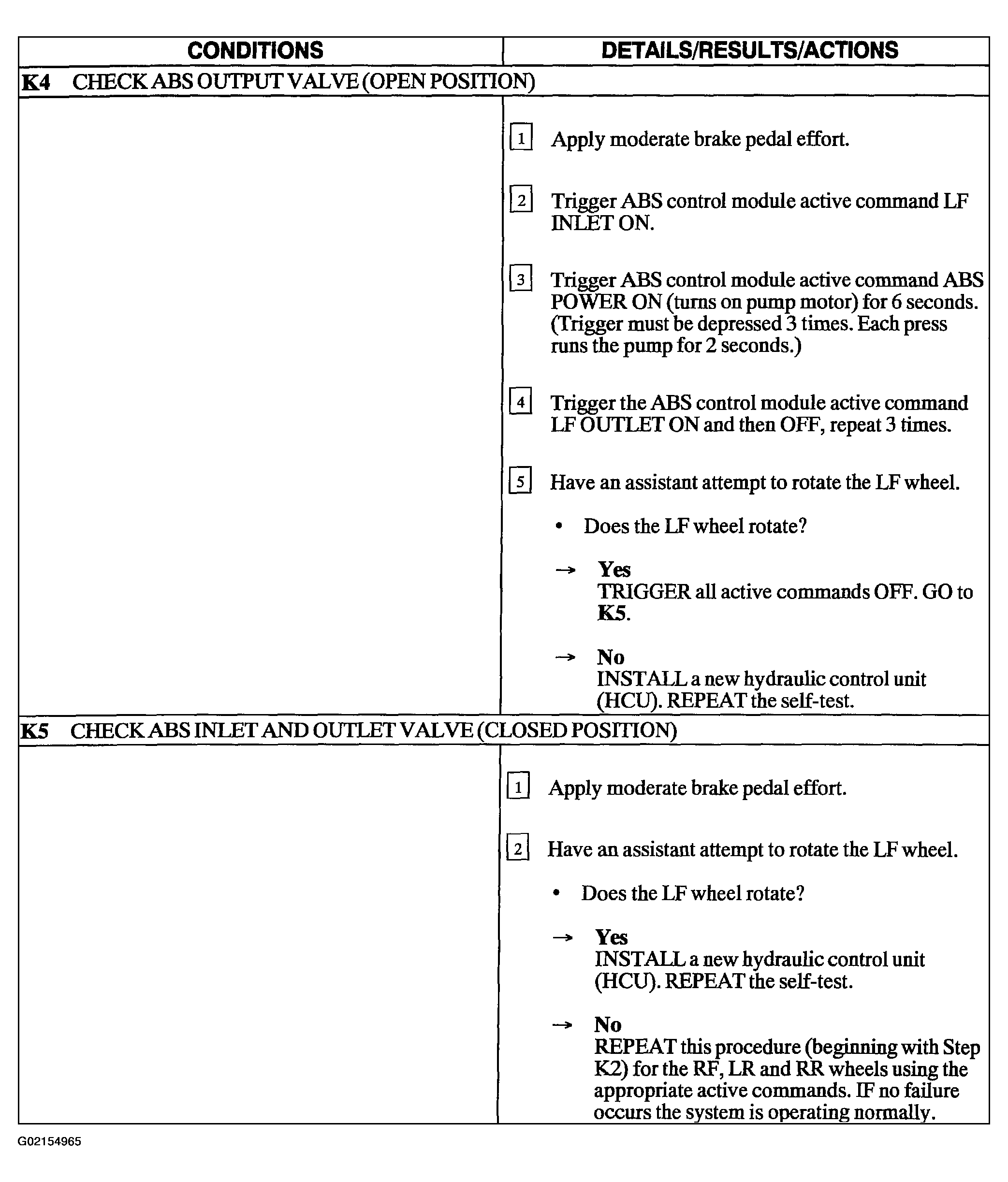

Fig 2: Pinpoint Test K: Poor Vehicle Tracking During Anti-Lock Function (Steps K4 & K5)

Courtesy of FORD MOTOR CO.
