Wiper/Washer Portion

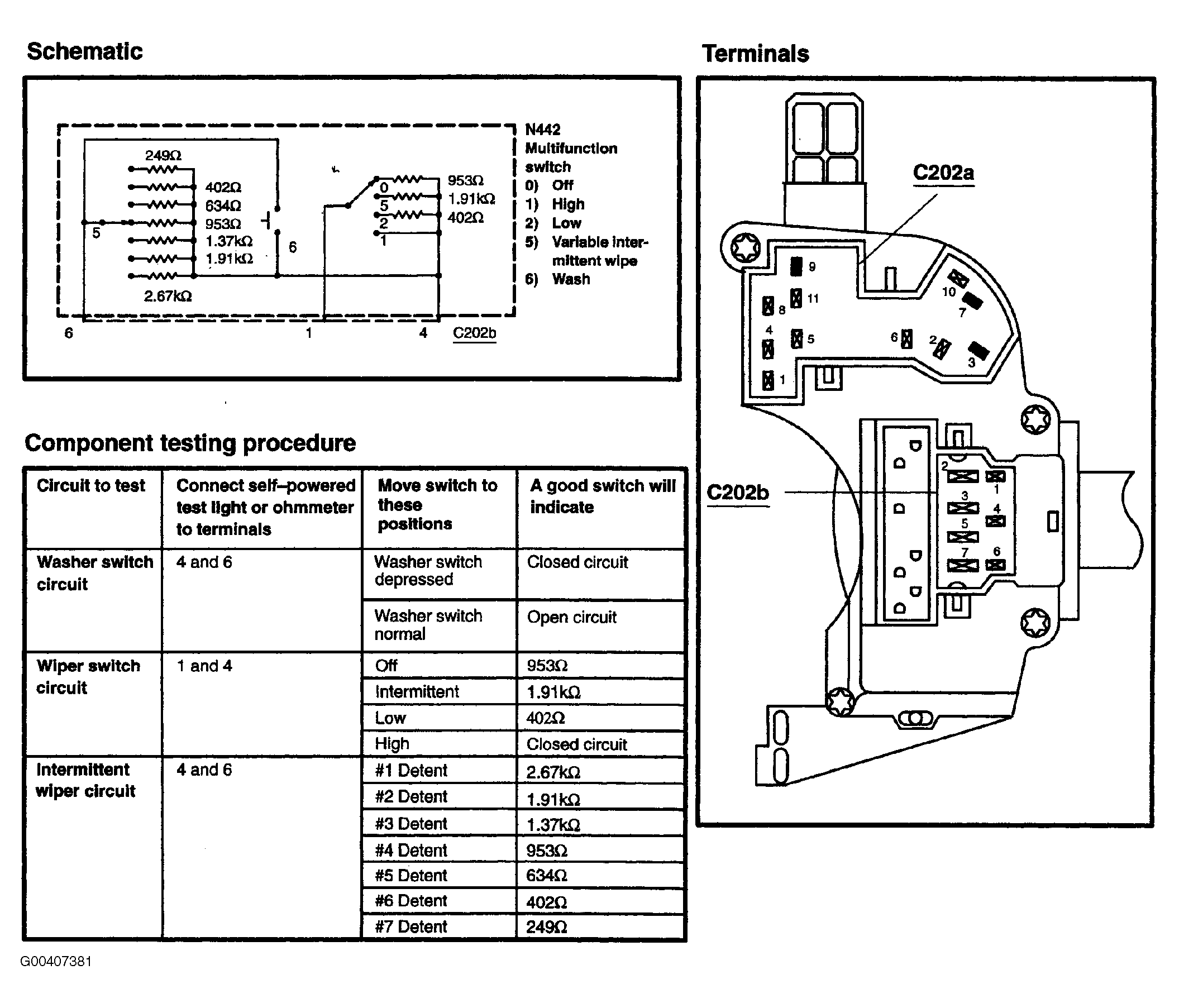

Fig 1: Testing Multifunction Switch (Wiper/Washer Portion)

G00407381

Courtesy of FORD MOTOR CO.
