Pinpoint Test D: No Communication With The Central Security Module

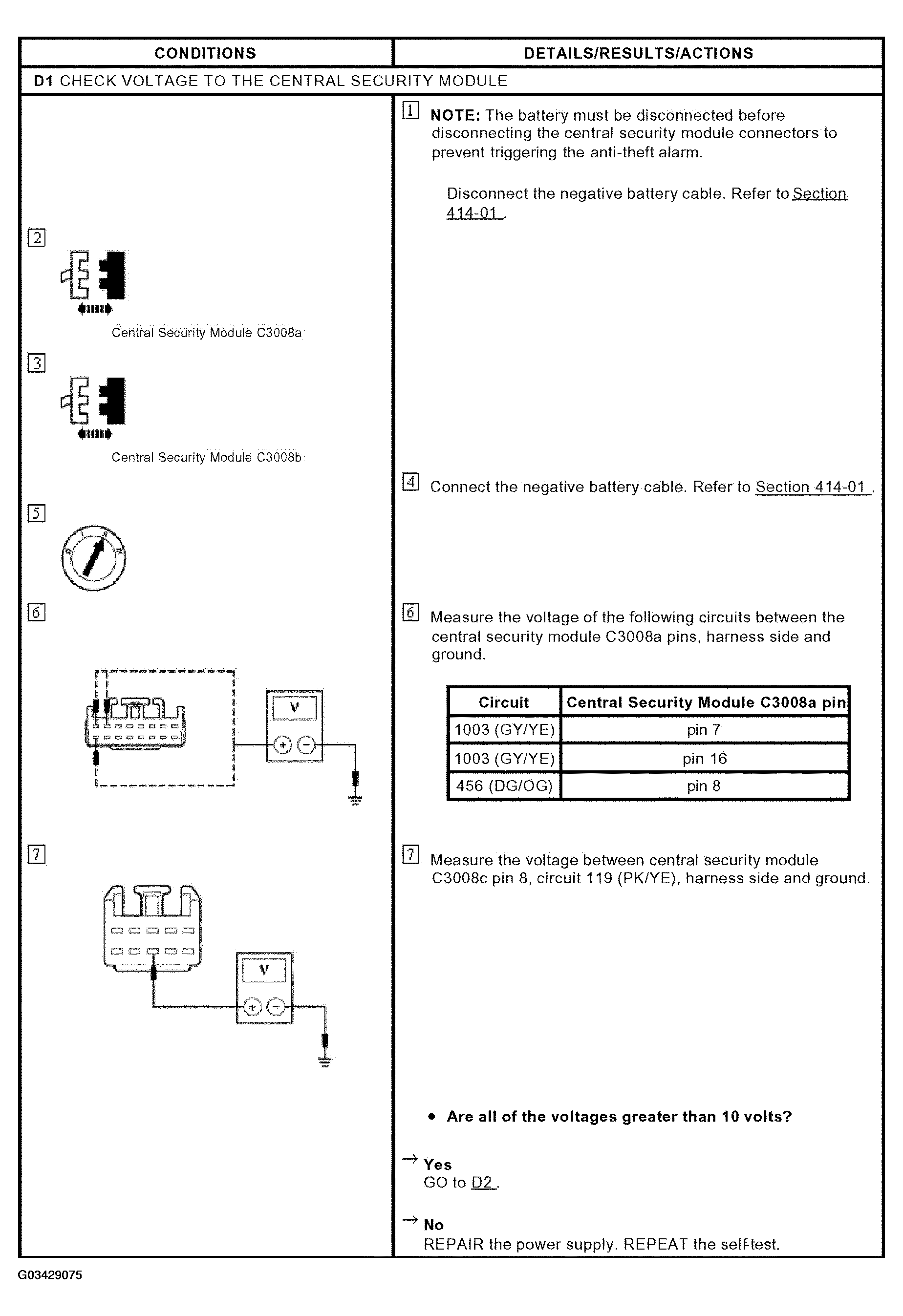

Fig 1: Identifying Pinpoint Test D: No Communication With Central Security Module (D1)
G03429075Courtesy of FORD MOTOR CO.

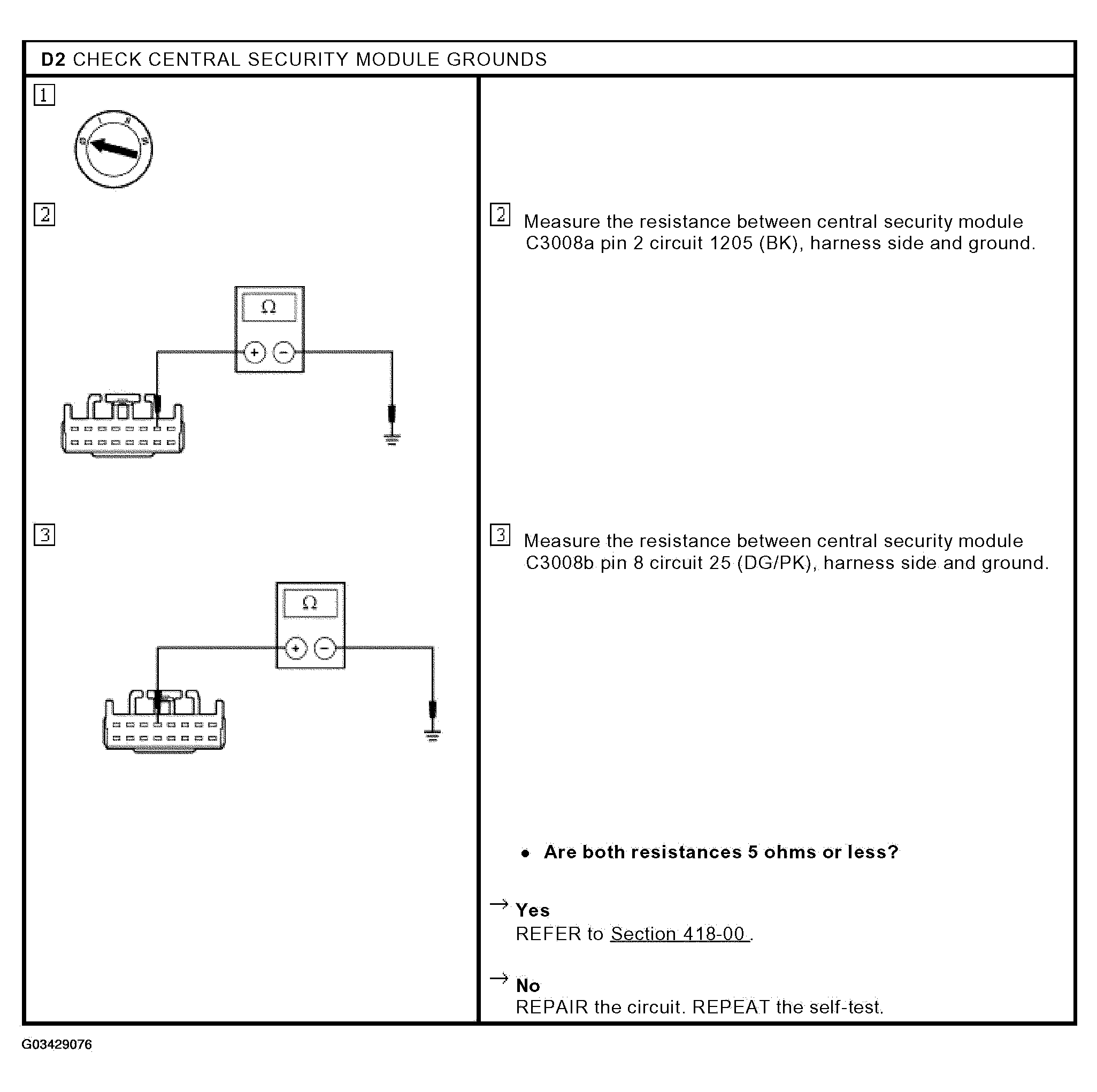

Fig 2: Identifying Pinpoint Test D: No Communication With Central Security Module (D2)
G03429076Courtesy of FORD MOTOR CO.
