Digital Transmission Range (Tr) Sensor: Installation

  1. Install the digital TR sensor and loosely install the bolts.
    Fig 1: Identifying Digital TR Sensor Bolts
    G01940313Courtesy of FORD MOTOR CO.
    2. NOTE: Manual shift lever shaft must be in the neutral position.
    Fig 2: Aligning Digital TR Sensor
    G01940314Courtesy of FORD MOTOR CO.
  2. Using the special tool, align the digital TR sensor slots. The tool is designed to fit snugly.
  3. Tighten the bolts and remove the special tool.
    Fig 3: Tightening Digital TR Sensor Bolts
    G01940315Courtesy of FORD MOTOR CO.
  4. With the manual lever in overdrive, connect the shift lever control cable.

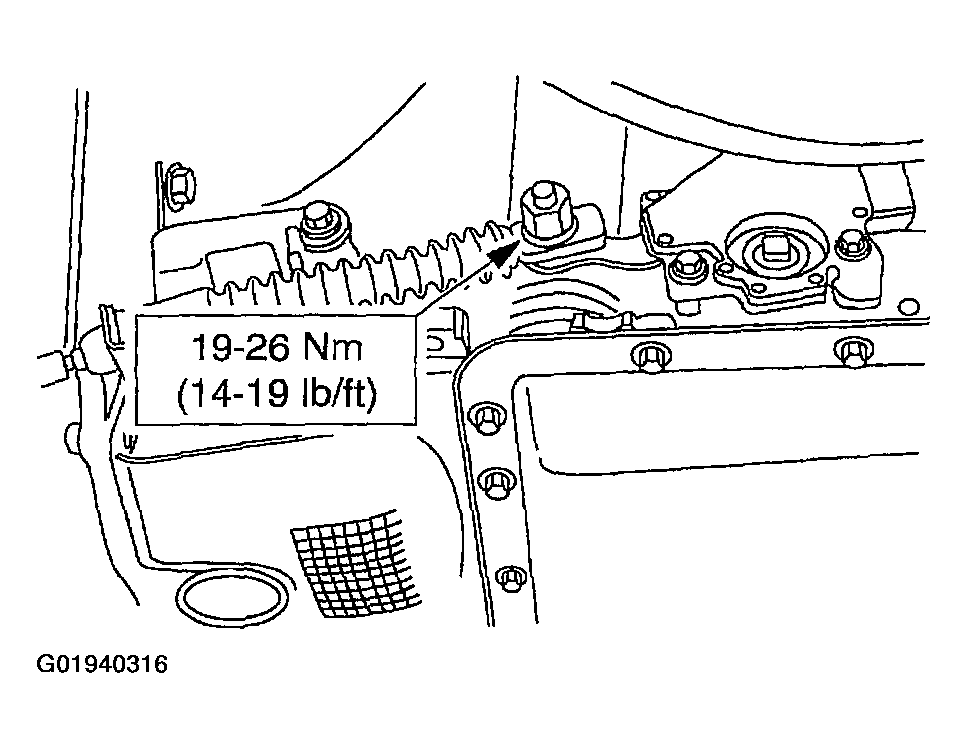

    Fig 4: Tightening Shift Lever Control Cable Nut
    G01940316Courtesy of FORD MOTOR CO.
  5. Connect the digital TR sensor electrical connector.

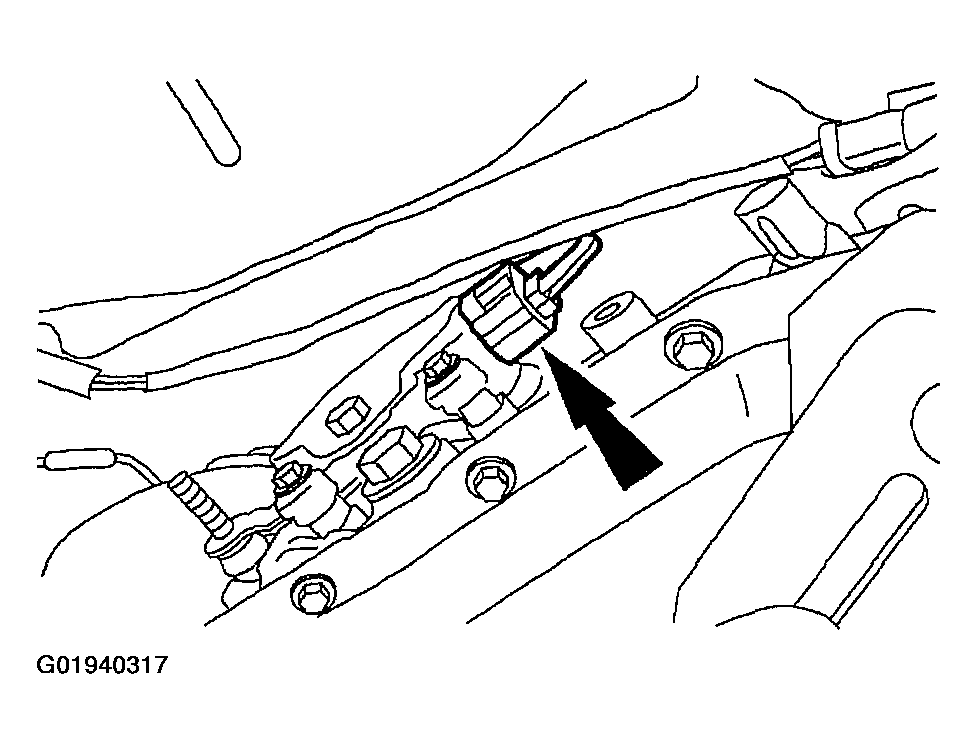

    Fig 5: Identifying Digital TR Sensor Electrical Connector
    G01940317Courtesy of FORD MOTOR CO.
  6. Lower the vehicle.
  7. Connect the battery ground cable.
