Sensor-A/C Sunload: Removal

WARNING: This page is about a different car, the 2002 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel upper finish panel.

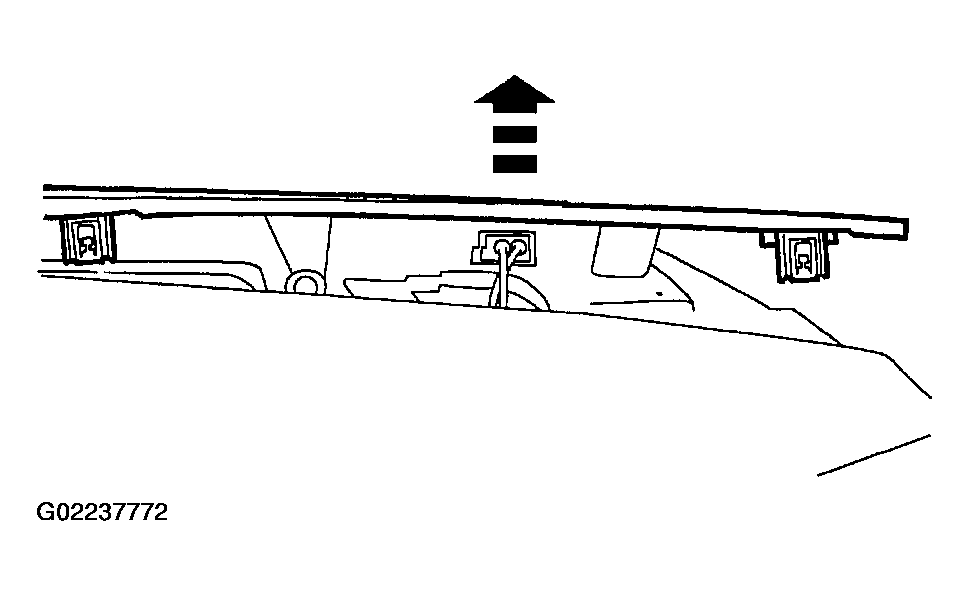

    Fig 1: Removing Instrument Panel Upper Finish Panel
    G02237772Courtesy of FORD MOTOR CO.
  2. Disconnect the wire harness connector.

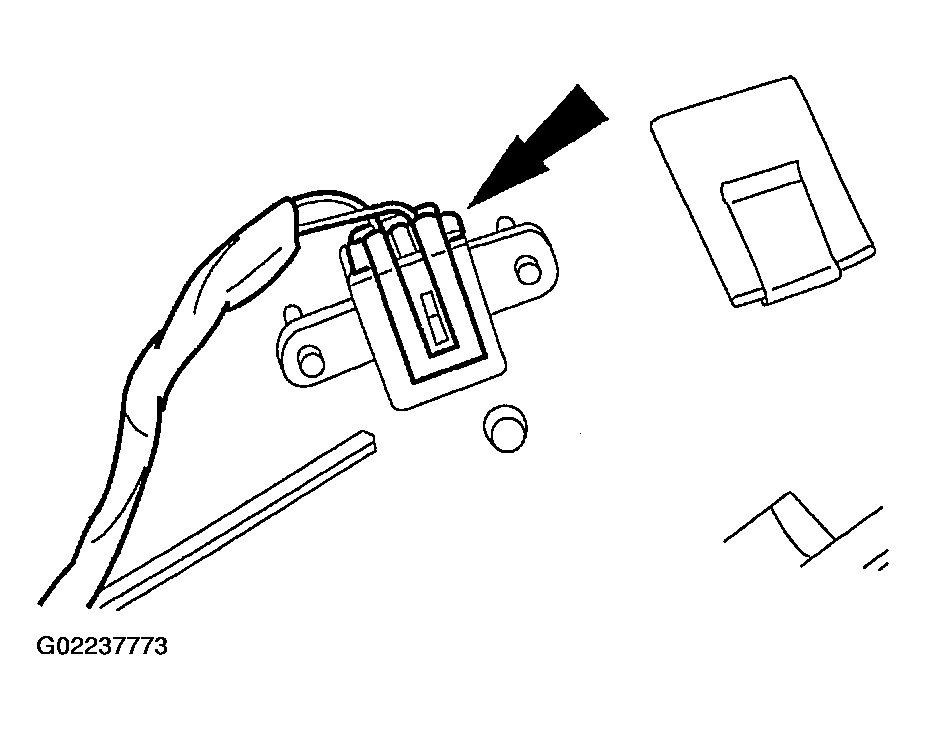

    Fig 2: Disconnecting Wire Harness Connector
    G02237773Courtesy of FORD MOTOR CO.
  3. Remove the A/C sunload sensor from the instrument panel upper finish panel.

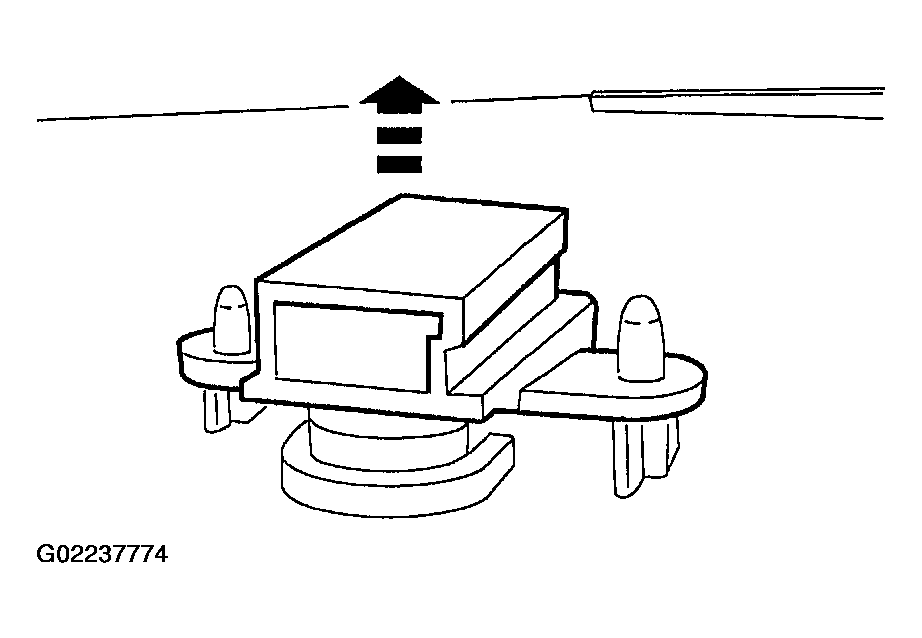

    Fig 3: Removing A/C Sunload Sensor From Instrument Panel Upper Finish Panel
    G02237774Courtesy of FORD MOTOR CO.
