Disassembly And Assembly Of Subassemblies: Synchronizers: Disassembly

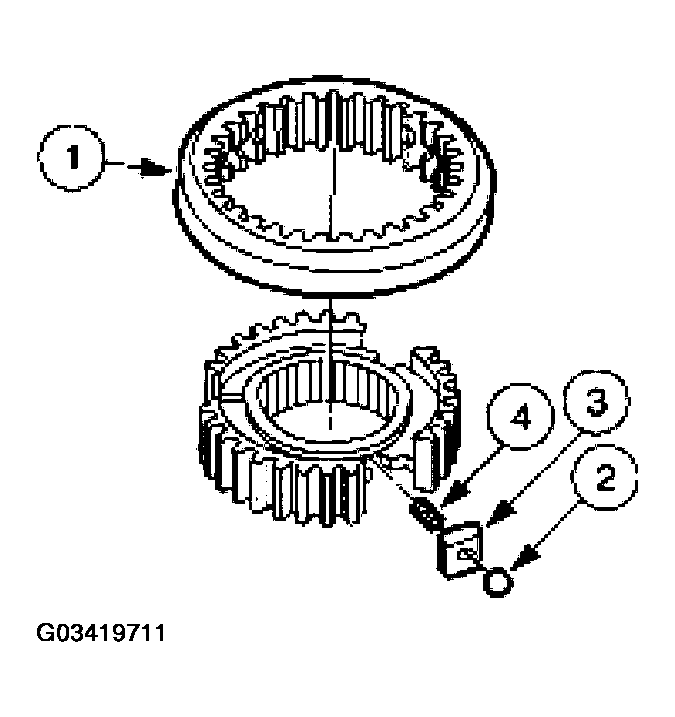

- Disassemble the synchronizer.
- Synchronizer outer ring.
- Detent ball.
- Blocker bar.
- Compression spring.
CAUTION:
Use care when disassembling the synchronizer assembly. The detent balls are spring loaded and may be ejected from the assembly.
