Steering Wheel: Removal

  1. Remove the air bag module. For additional information, refer to AIR BAG RESTRAINT SYSTEMS article .
  2. Disconnect the speed control electrical connector.

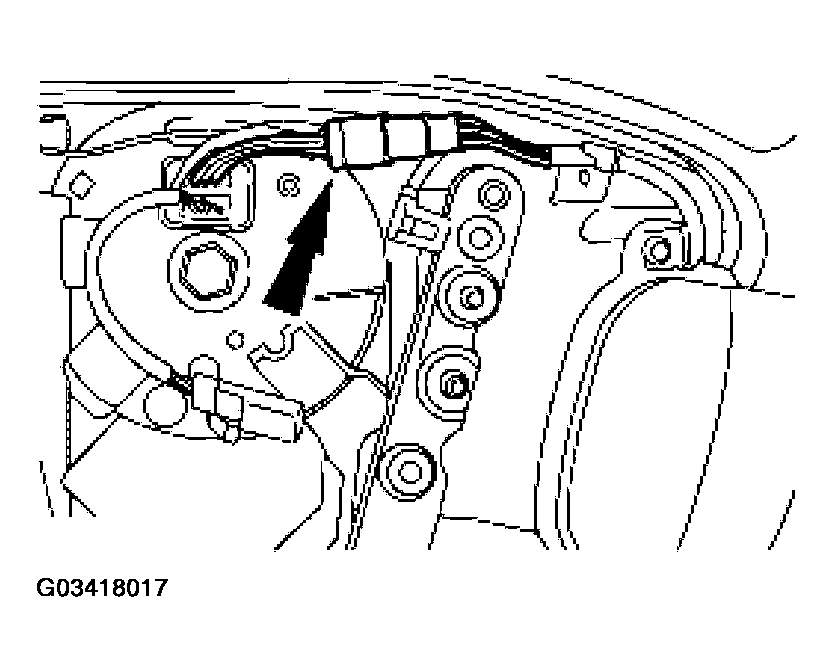

    Fig 1: Disconnecting Speed Control Electrical Connector
    G03418017Courtesy of FORD MOTOR CO.
  3. Remove the steering wheel.

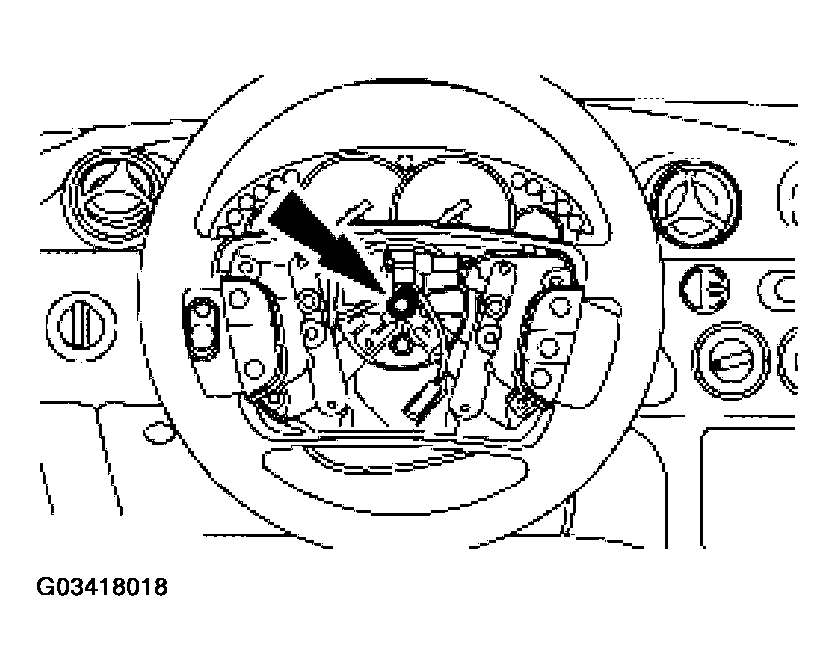

    Fig 2: Removing Steering Wheel
    G03418018Courtesy of FORD MOTOR CO.
