Pinpoint Test E: The Indicator Lamp Is Not Operating Properly

WARNING: This page is about a different variant/trim than selected.

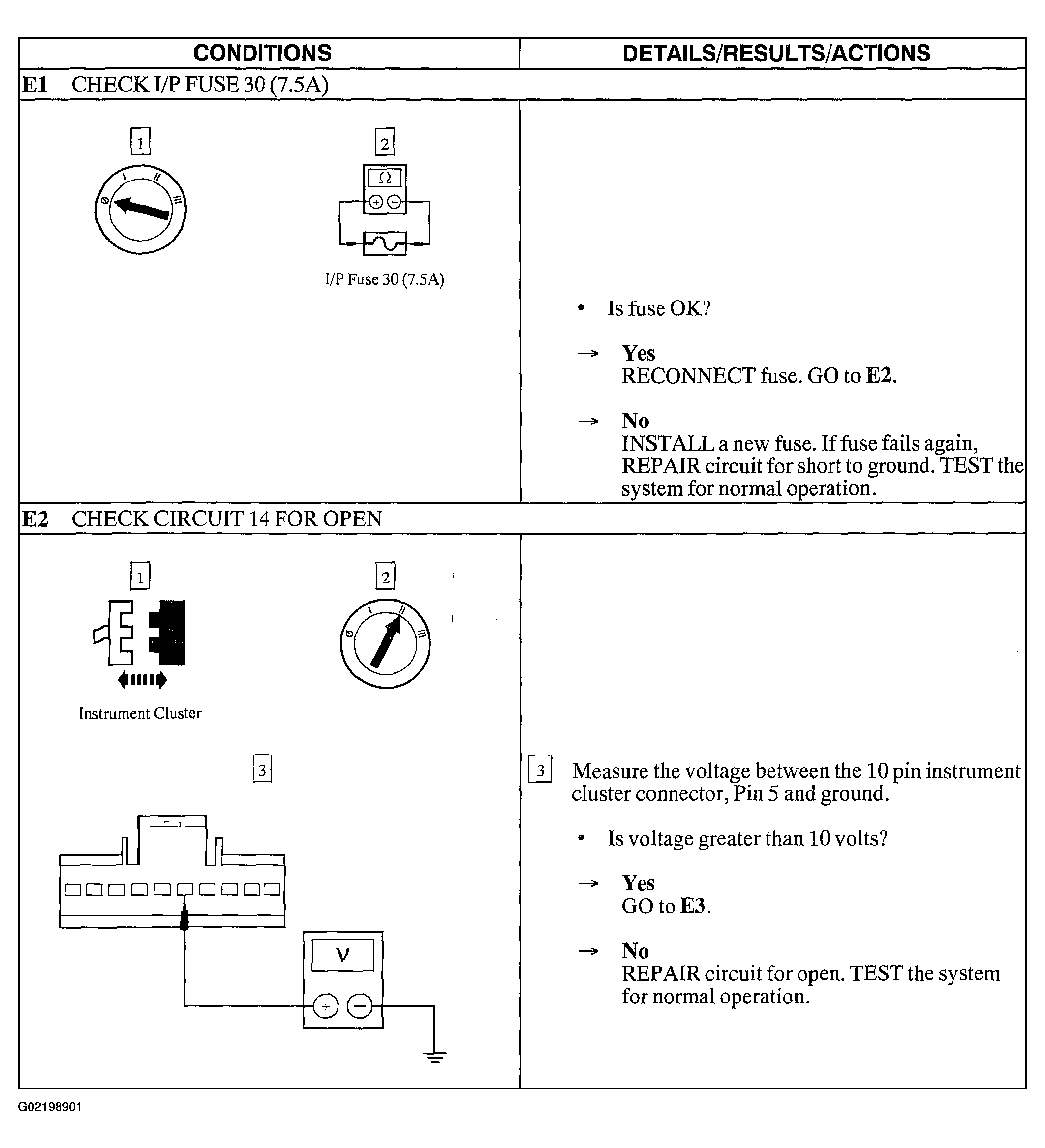

Fig 1: Pinpoint Test E: Indicator Lamp Is Not Operating Properly (E1 & E2)

Courtesy of FORD MOTOR CO.

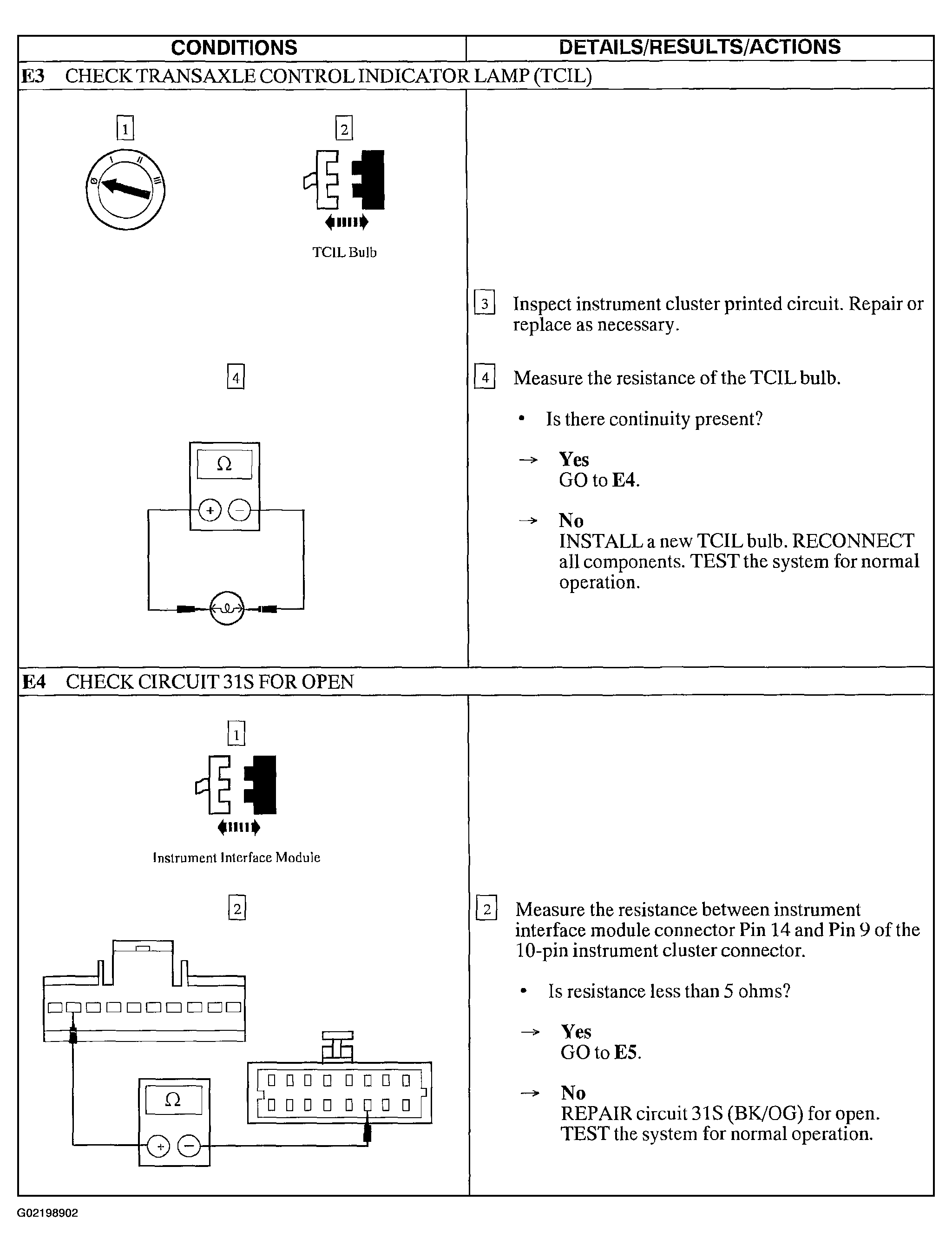

Fig 2: Pinpoint Test E: Indicator Lamp Is Not Operating Properly (E3 & E4)

Courtesy of FORD MOTOR CO.

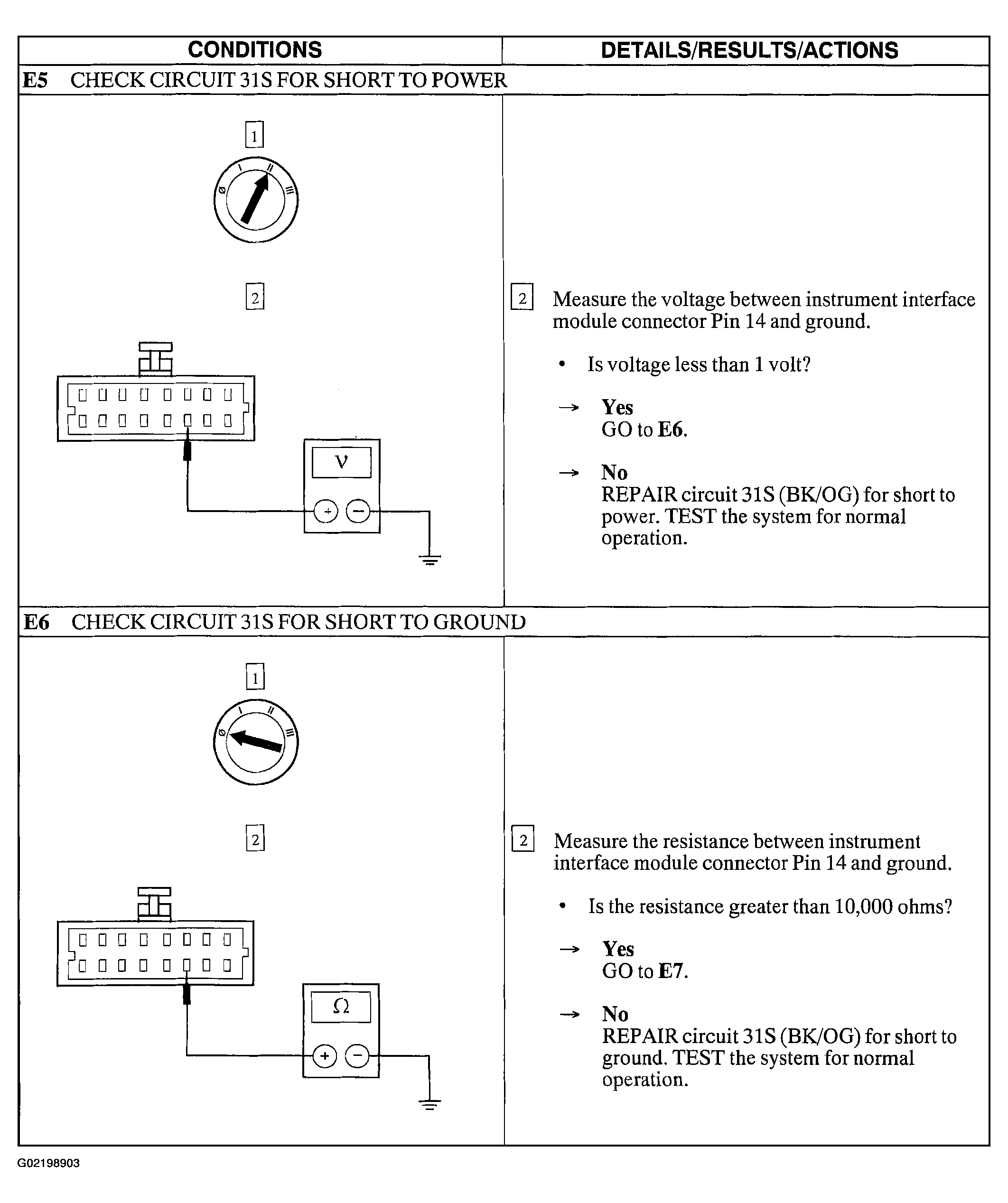

Fig 3: Pinpoint Test E: Indicator Lamp Is Not Operating Properly (E5 & E6)

Courtesy of FORD MOTOR CO.

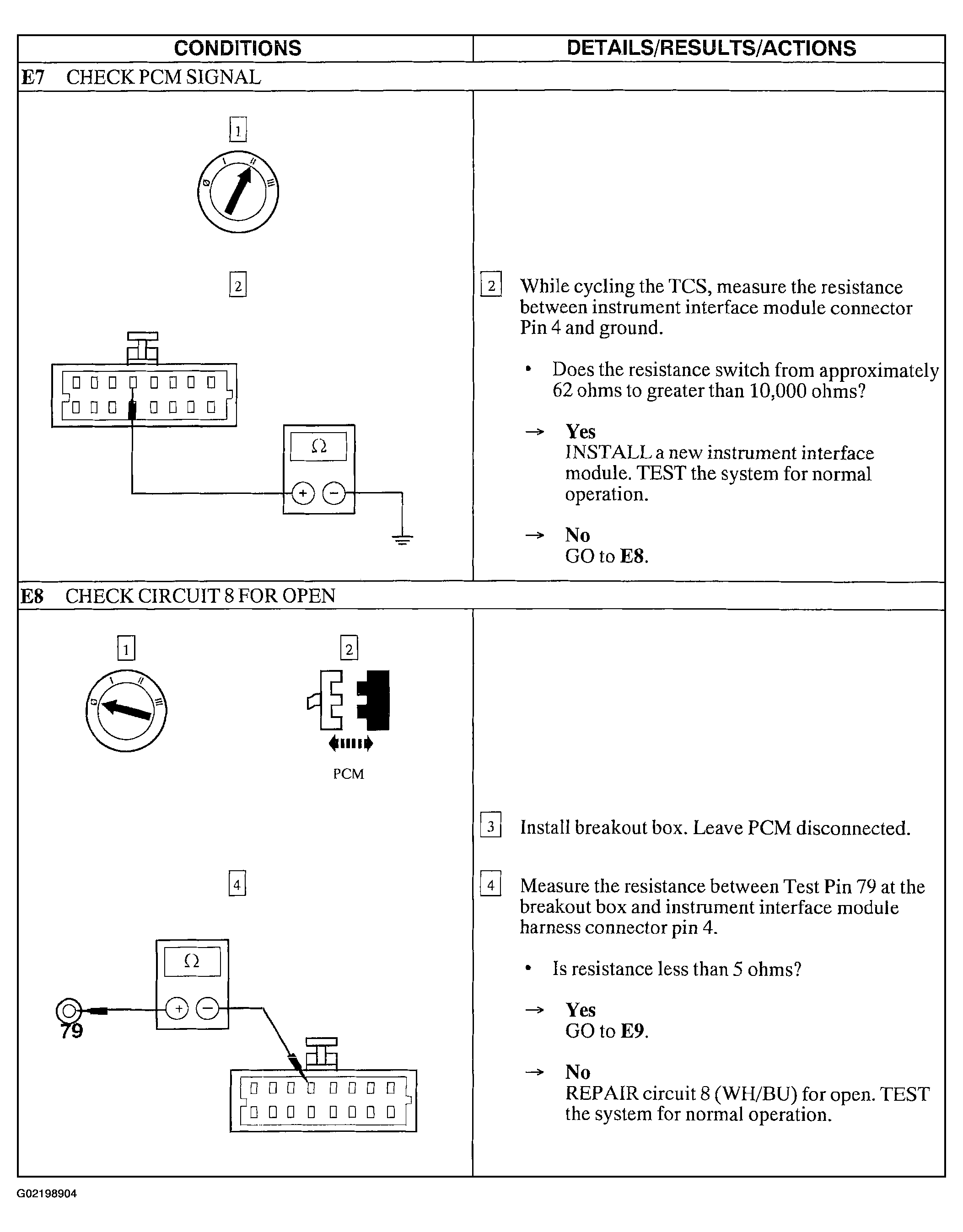

Fig 4: Pinpoint Test E: Indicator Lamp Is Not Operating Properly (E7 & E8)

Courtesy of FORD MOTOR CO.

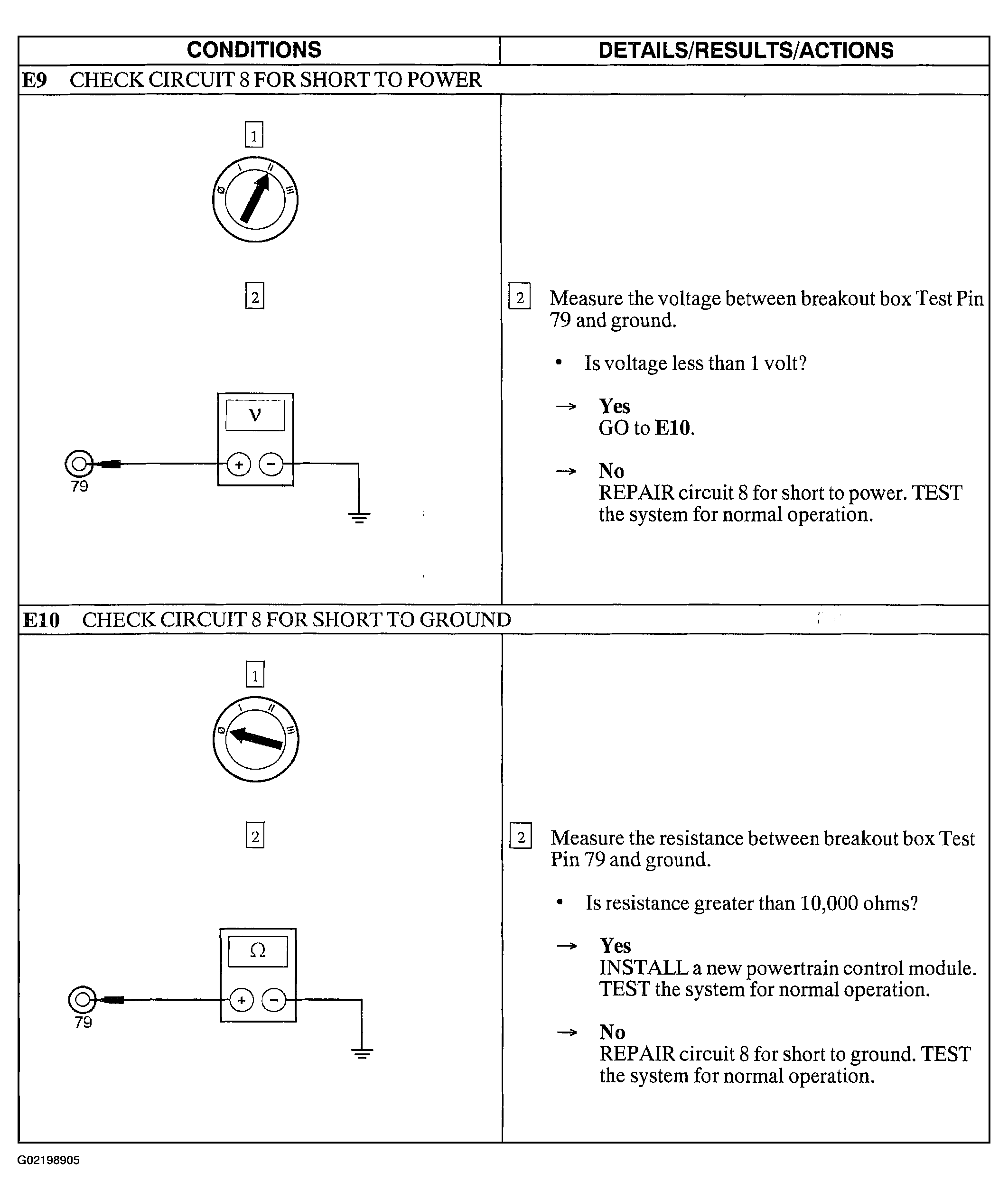

Fig 5: Pinpoint Test E: Indicator Lamp Is Not Operating Properly (E9 & E10)

Courtesy of FORD MOTOR CO.
