Hydraulic Control Unit (HCU) - Vehicles With 2.0L Engine: Installation

NOTE: After installation, bleed the brake system. For additional information, refer to BRAKE SYSTEM-GENERAL INFORMATION .

NOTE: Ensure the hydraulic control unit is correctly fitted to the locating peg.

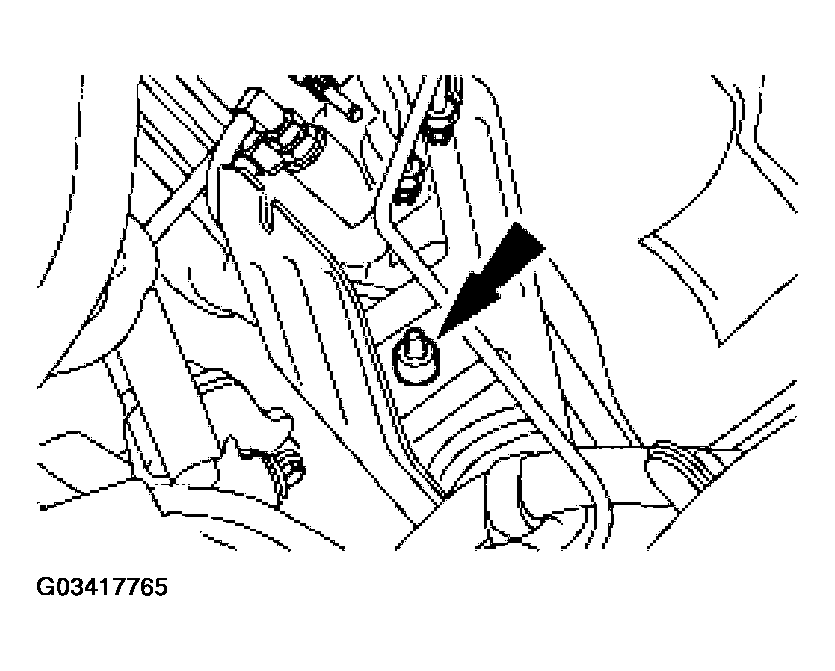

Fig 1: Locating Peg

Courtesy of FORD MOTOR CO.

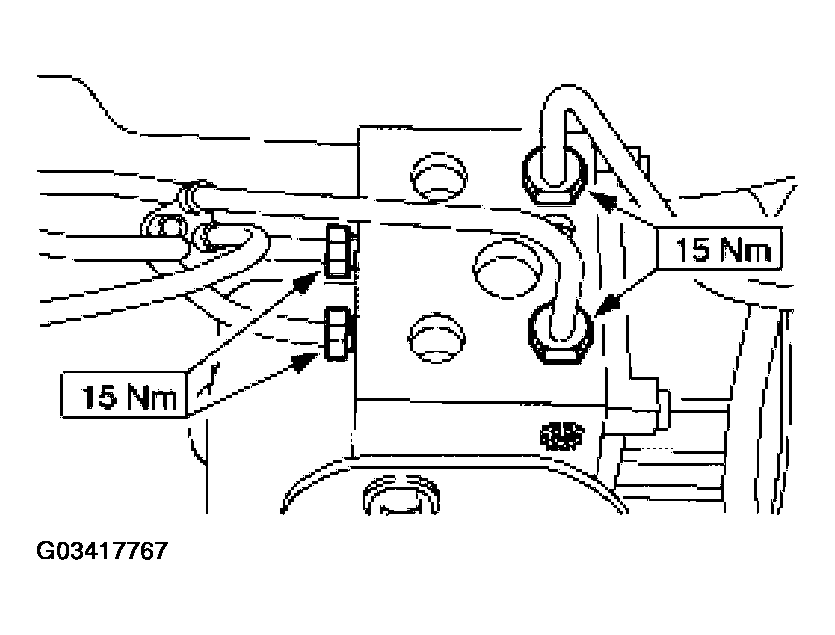

Fig 2: Tightening Nuts

Courtesy of FORD MOTOR CO.

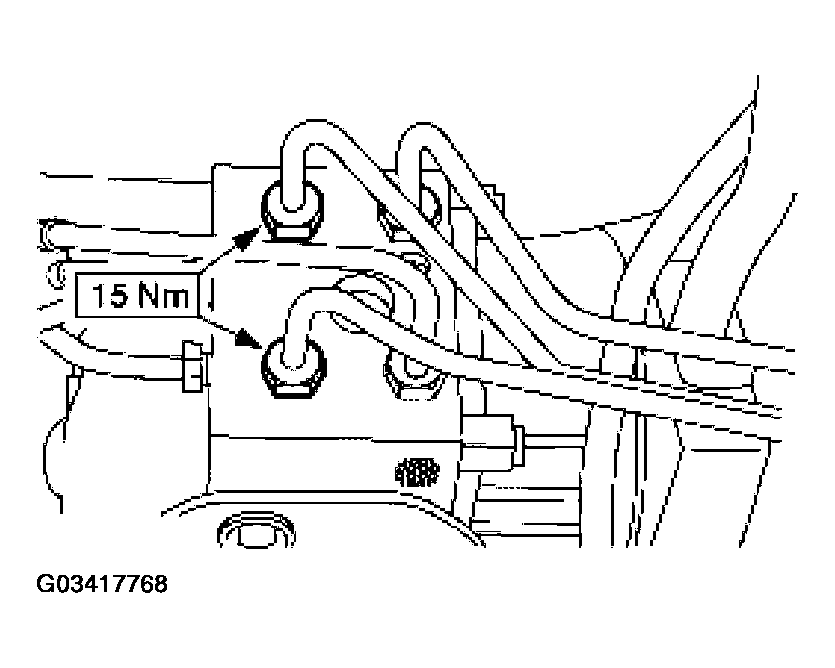

Fig 3: Connecting Hydraulic Unit Brake Tubes

Courtesy of FORD MOTOR CO.

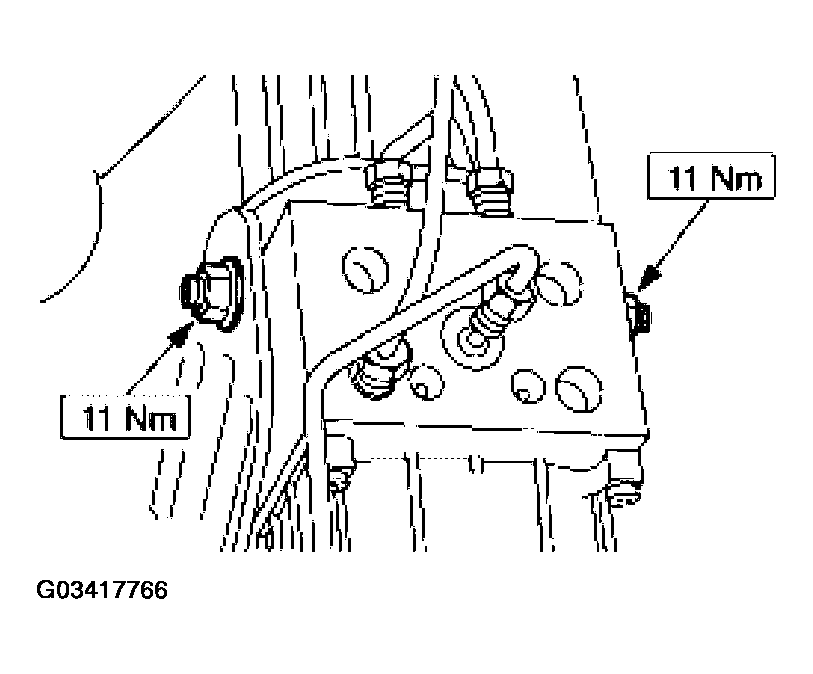

Fig 4: Installing Master Cylinder Fluid Feed Tubes

Courtesy of FORD MOTOR CO.

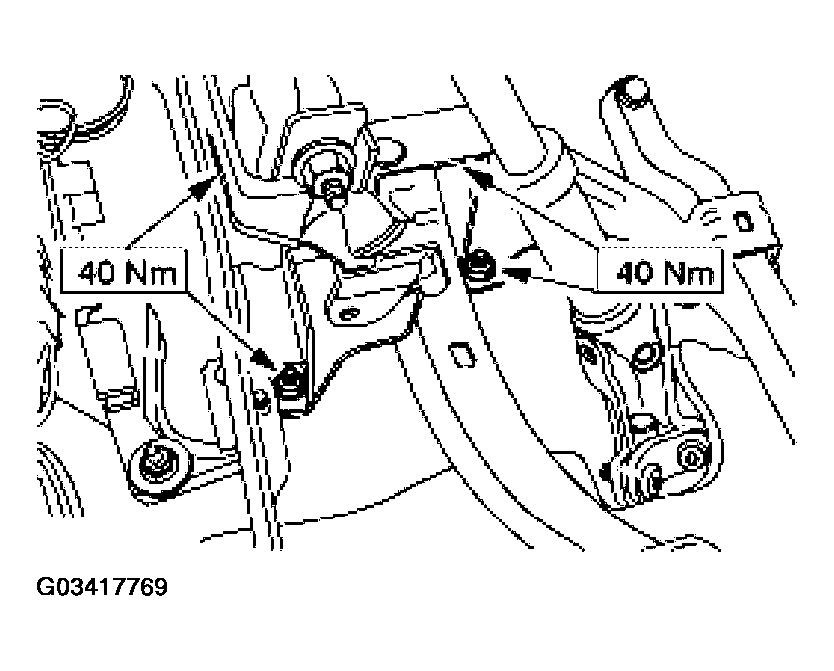

Fig 5: Attaching Brake Booster Support Brackets

Courtesy of FORD MOTOR CO.
