Home >> Mercury >> 2002 >> Cougar 2.5 L, Standard >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Control-Traction Control >> Diagnosis And Testing >> Anti-Lock Control - Traction Control >> Pinpoint Tests >> Pinpoint Test K: Poor Vehicle Tracking During Anti-Lock Function

Pinpoint Test K: Poor Vehicle Tracking During Anti-Lock Function

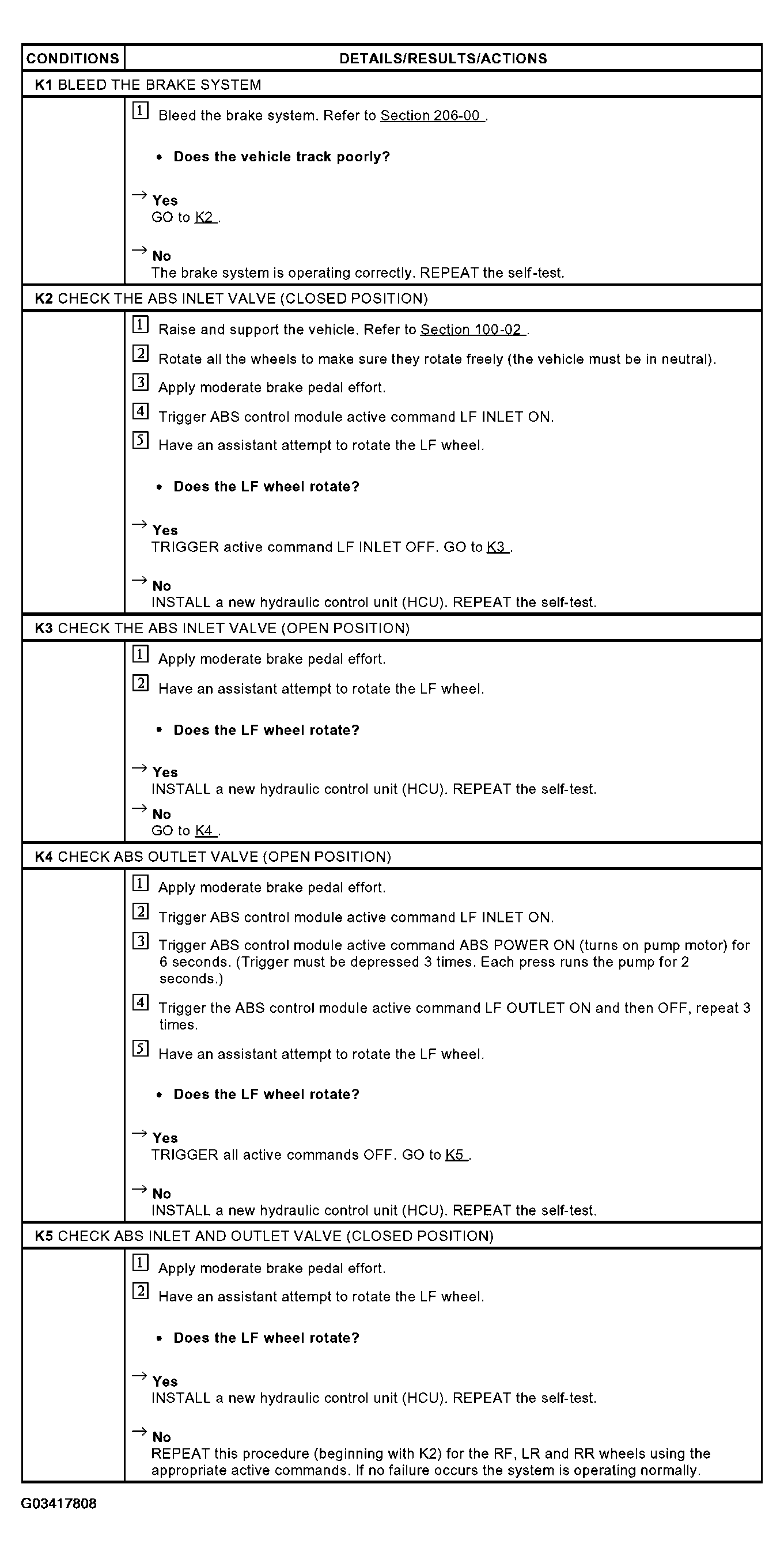

Fig 1: Pinpoint Test K: Poor Vehicle Tracking During Anti-Lock Function (K1 - K5)

G03417808

Courtesy of FORD MOTOR CO.
