Output Shaft Speed (OSS) Sensor: Installation

    NOTE: Apply a light coat of petroleum jelly to the O-ring before installation.
  1. Install the OSS sensor.
    • Connect the OSS sensor electrical connector.

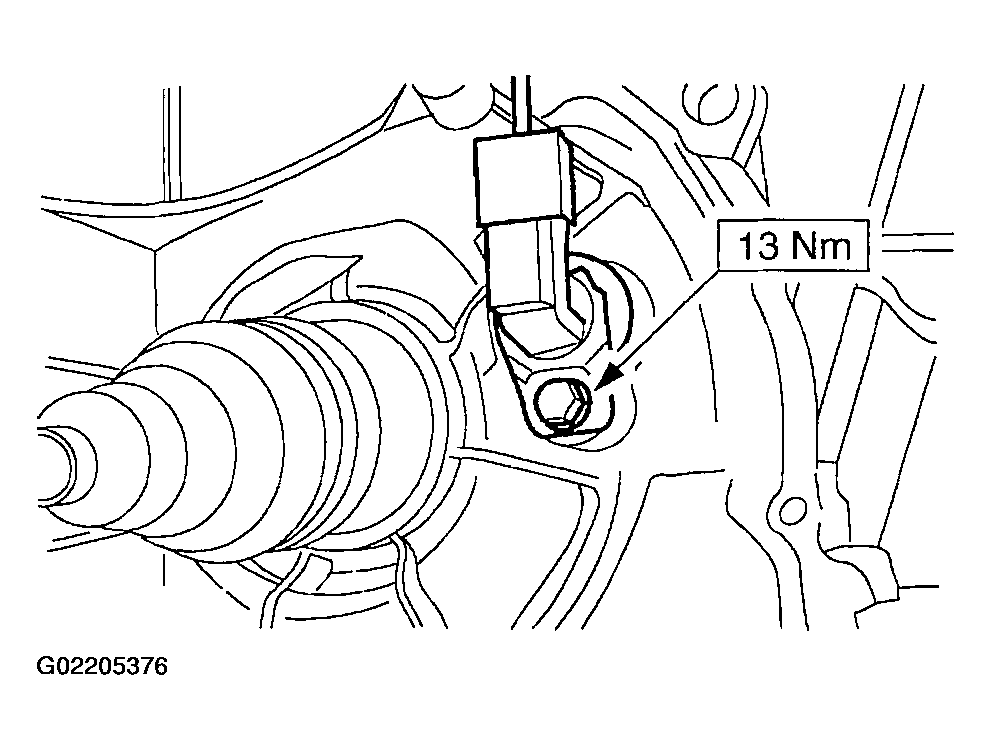

      Fig 1: Connecting OSS Sensor Electrical Connector
      G02205376Courtesy of FORD MOTOR CO.
  2. Lower vehicle.
  3. Check the transmission fluid level, add automatic transmission fluid.
    Fig 2: Checking Transmission Fluid Level
    G02205377Courtesy of FORD MOTOR CO.
  4. Start the engine and move the transaxle range selector lever through all gear positions.
    Fig 3: Identifying Transaxle Range Selector Lever
    G02205378Courtesy of FORD MOTOR CO.
