Torque Converter Housing: Assembly

Position a new differential lube tube in the torque converter housing.

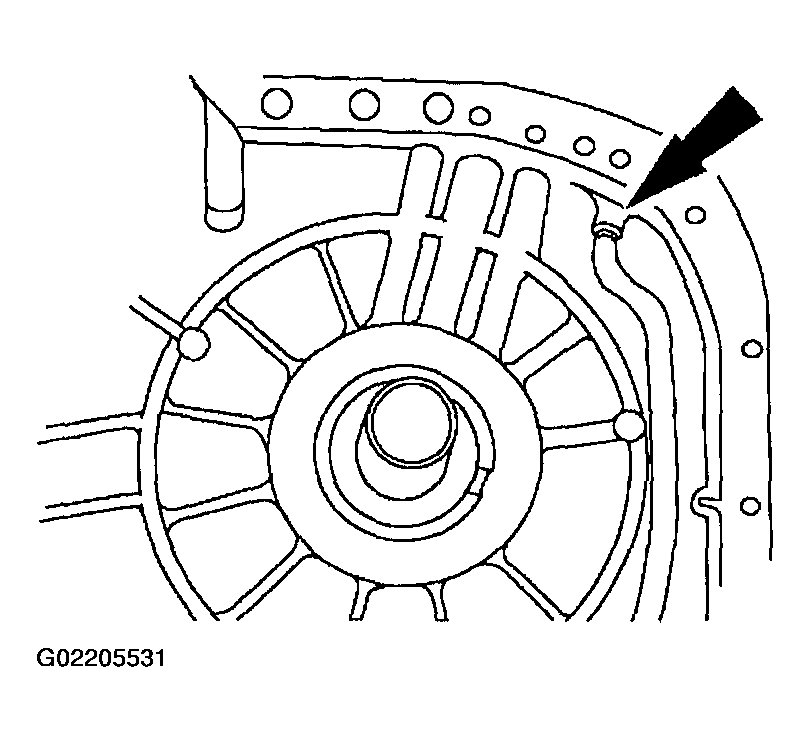

Fig 1: Positioning Differential Lube Tube In Torque Converter Housing
Courtesy of FORD MOTOR CO.
Using the special tool, install the differential lube tube.

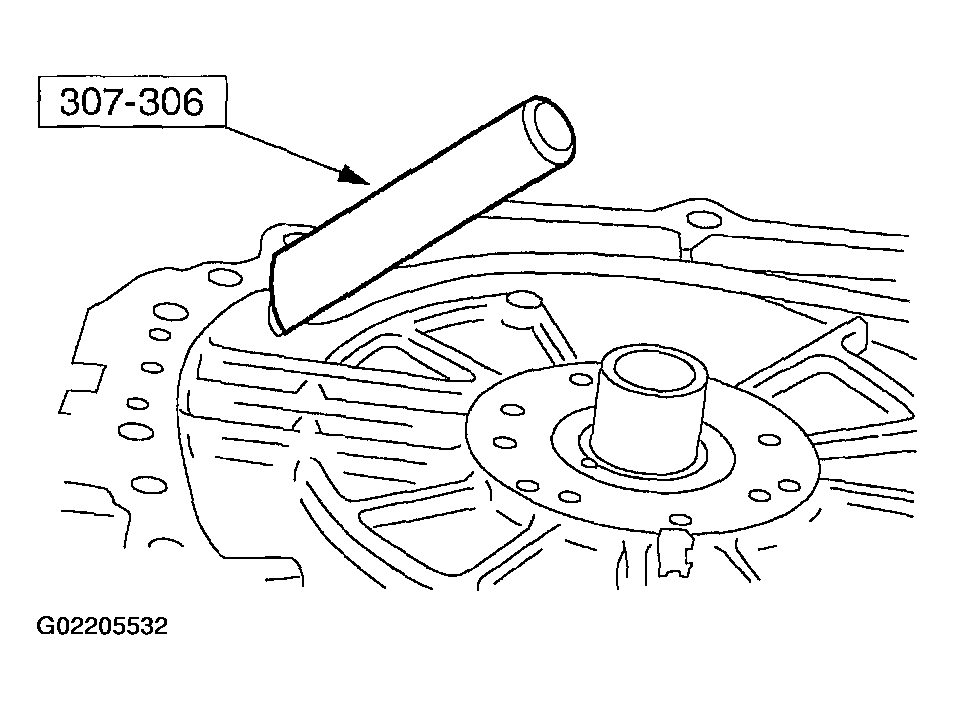

Fig 2: Installing Differential Lube Tube
Courtesy of FORD MOTOR CO.
Install the differential lube tube bolt.

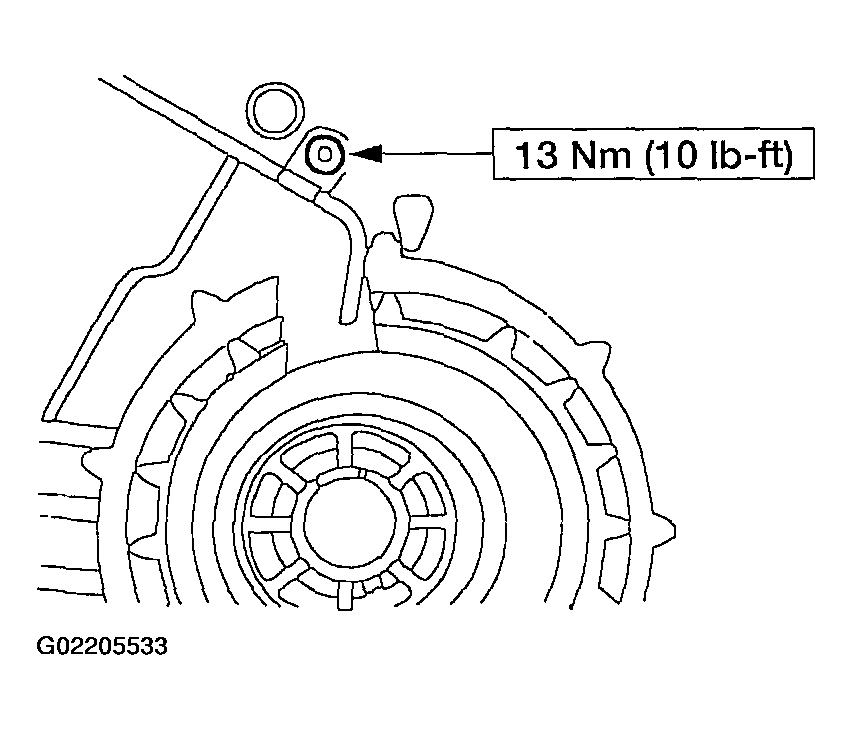

Fig 3: Installing Differential Lube Tube Bolt
Courtesy of FORD MOTOR CO.

NOTE: The final drive ring gear is installed with the lug end uppermost.

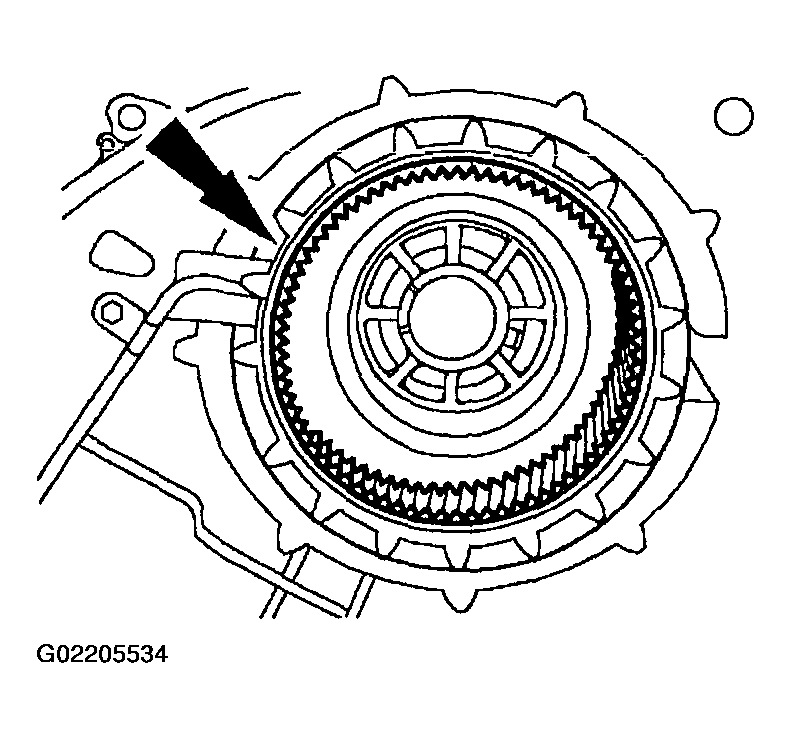

Fig 4: Installing Final Drive Ring Gear

G02205534

Courtesy of FORD MOTOR CO.

Install the final drive ring gear.
Install the final drive ring gear retaining ring.

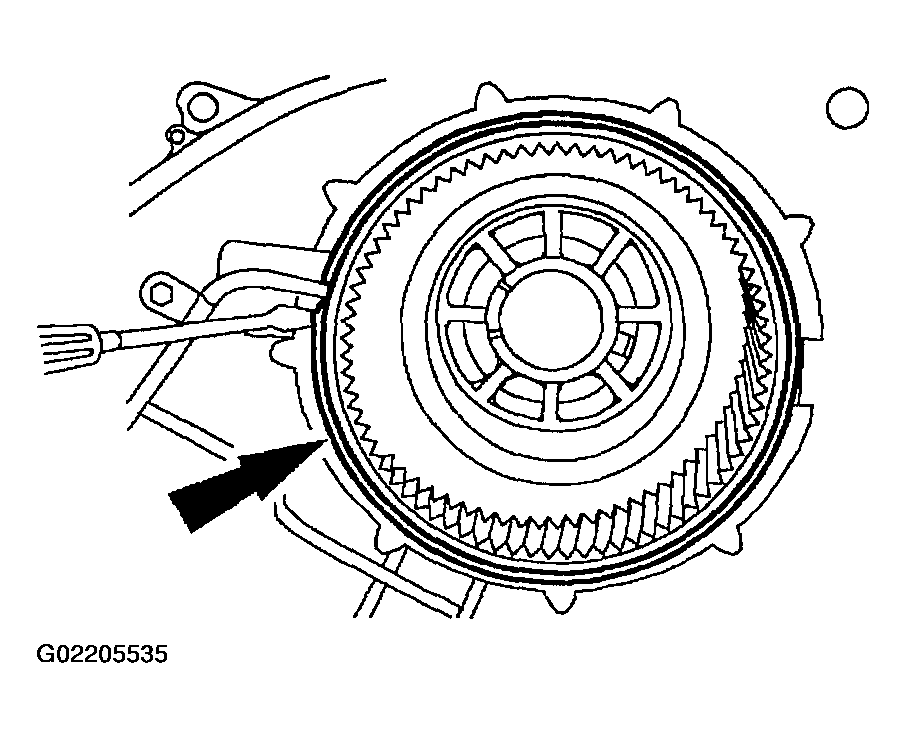

Fig 5: Installing Final Drive Ring Gear Retaining Ring
Courtesy of FORD MOTOR CO.
Install the cooler tube fitting.

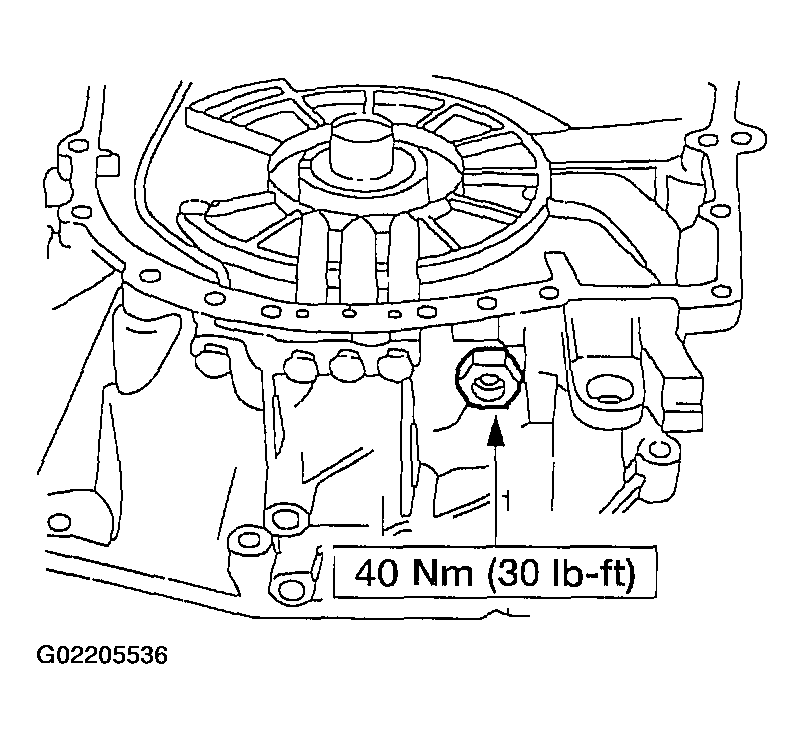

Fig 6: Installing Cooler Tube Fitting
Courtesy of FORD MOTOR CO.
