Low/Reverse Piston: Disassembly

  1. Remove and discard the low/reverse clutch piston outer seal on the low/reverse clutch piston.

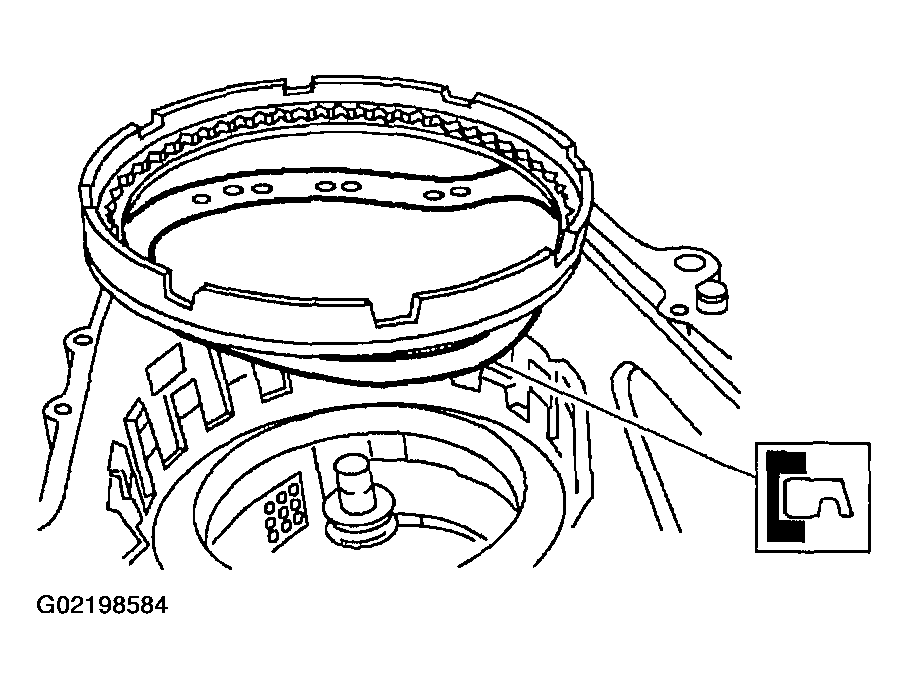

    Fig 1: Removing And Discarding Low/Reverse Clutch Piston Outer Seal On Low/Reverse Clutch Piston
    G02198584Courtesy of FORD MOTOR CO.
  2. Remove and discard the low/reverse clutch piston inner seal on the low/reverse clutch piston.
    Fig 2: Removing And Discard Low/Reverse Clutch Piston Inner Seal On Low/Reverse Clutch Piston
    G02198585Courtesy of FORD MOTOR CO.
