Low One-Way Clutch Assembly: Assembly

    NOTE: Outer tabs of the roller assembly must face up.

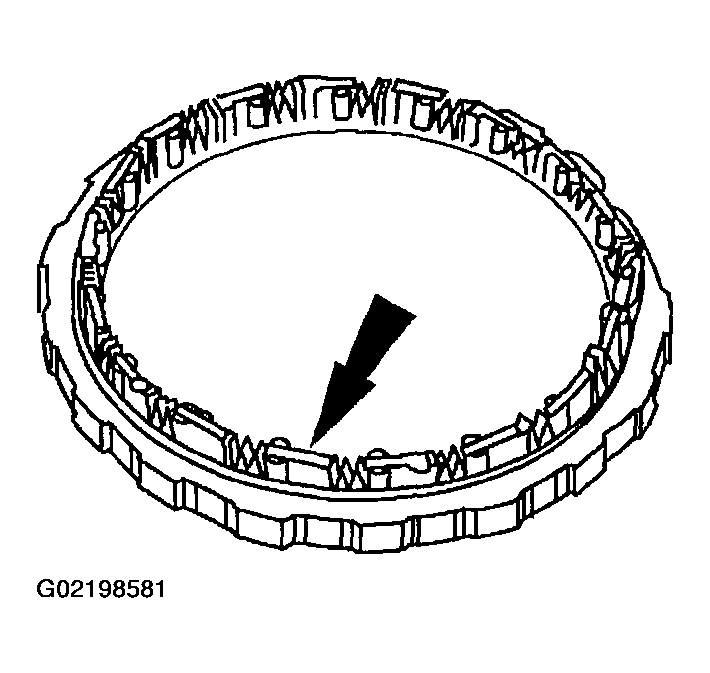

    Fig 1: Installing Roller Assembly Into Outer Race With Groove Facing Up
    G02198581Courtesy of FORD MOTOR CO.
  1. Install the roller assembly into the outer race with the groove facing up.
    2. NOTE: To aid in inner race installation, rotate the inner race clockwise during installation.

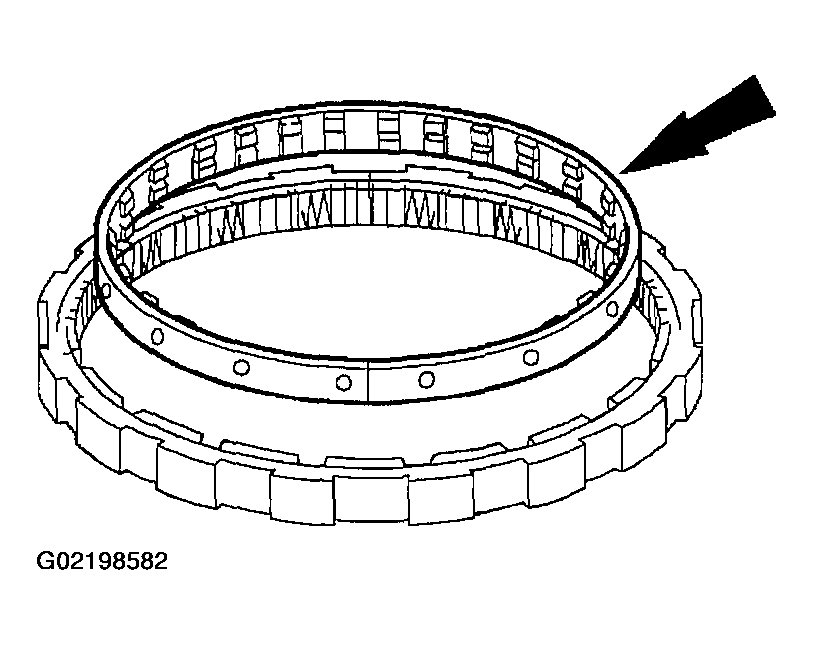

    Fig 2: Installing Inner Race With Grooves Facing Up
    G02198582Courtesy of FORD MOTOR CO.
  2. Install the inner race with the grooves facing up.
  3. Check the operation of the one-way clutch as follows:
    1. Hold the outer race.
    2. Rotate the inner race clockwise. It should rotate with a slight drag without attempting to rotate the outer race.
    3. Rotate the inner race counterclockwise. The inner race should rotate the outer race.

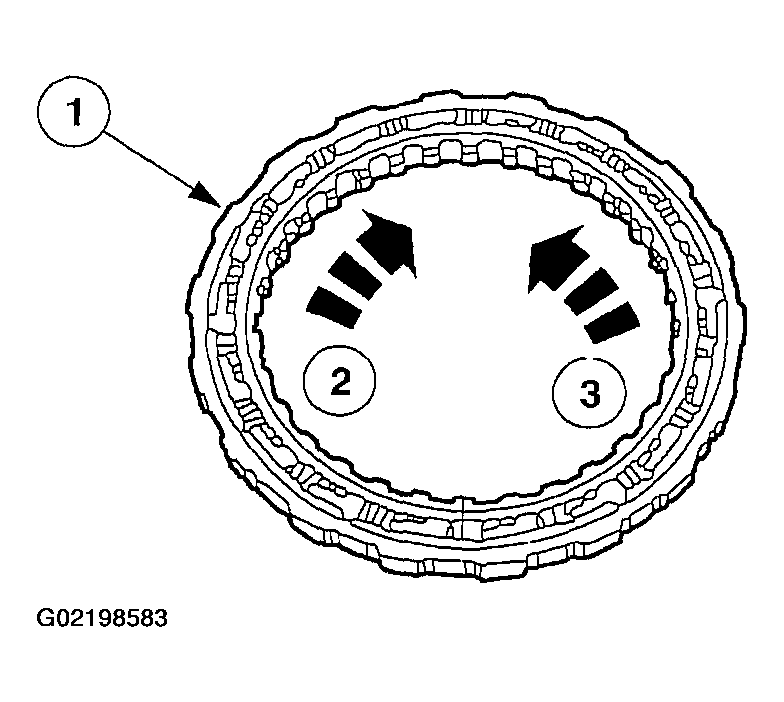

      Fig 3: Checking Operation Of One-Way Clutch
      G02198583Courtesy of FORD MOTOR CO.
