Selector Lever Cable: Installation

All vehicles

1. Attach the selector cable to the selector lever assembly.
   NOTE: Do not lock the selector cable adjusting cap.
   1. Insert the selector cable to the bracket.
   2. Clip the selector cable in place.

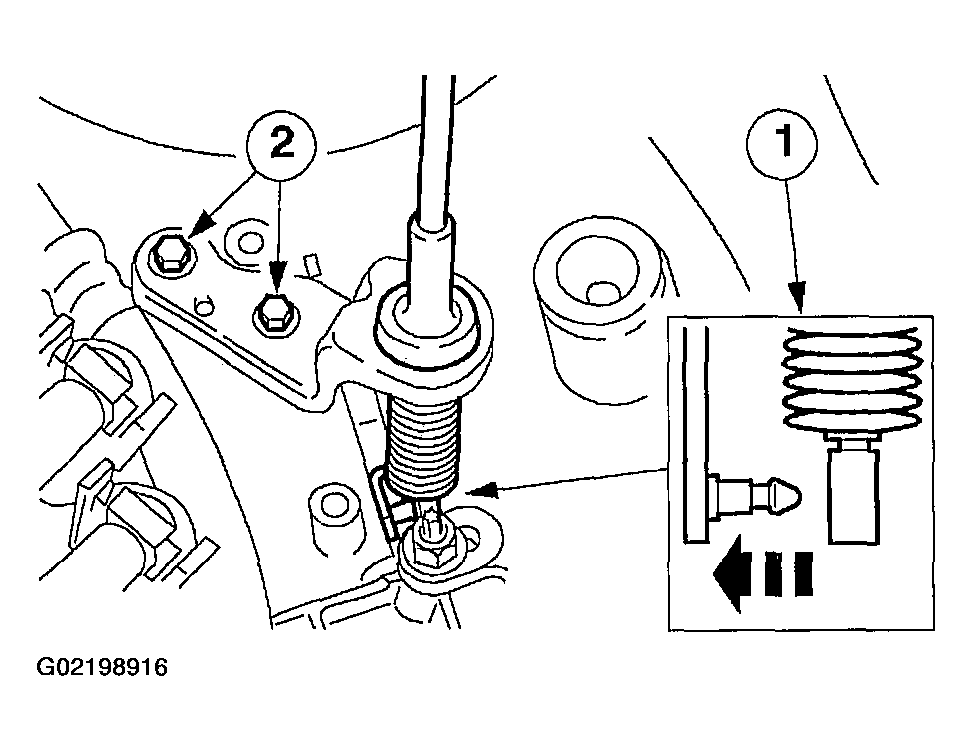

      Fig 1: Attaching Selector Cable To Selector Lever Assembly

      Courtesy of FORD MOTOR CO.
2. Install the heat shield.
3. Lower the vehicle.
4. Connect the shifter cable.
   1. Position the cable.
   2. Install the bolts.

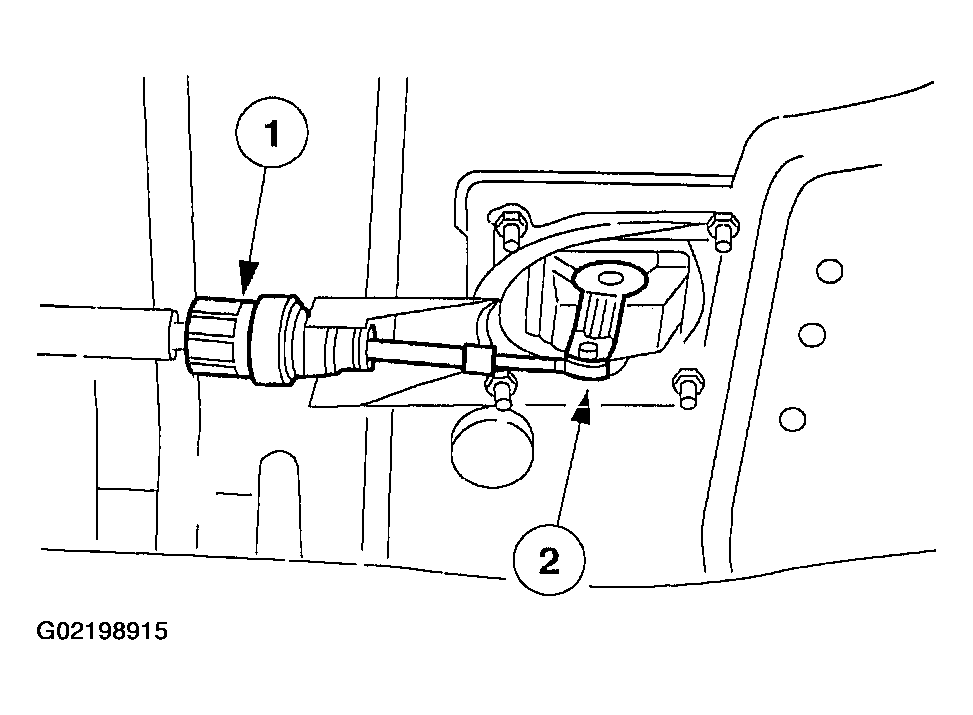

      Fig 2: Connecting Shifter Cable

      Courtesy of FORD MOTOR CO.
5. Adjust the selector cable. Refer to SELECTOR LEVER INDICATOR ADJUSTMENT .

   Vehicles with 2.5L engine

6. Install the air cleaner (AC).
