Selector Lever Cable Adjustment: Adjustment

    NOTE: The selector lever has its own detent mechanism. There is no need to hold it after engaging a gear.
    Fig 1: Moving Selector Lever To Position "D"
    G02198906Courtesy of FORD MOTOR CO.
  1. Move the selector lever to position "D".
  2. Raise and support the vehicle.
  3. Adjust the selector cable.
      NOTE: The marks line up in position "D". It is not necessary to hold it after engaging a gear because it has its own detent mechanism.
    1. Move the selector lever to position "D".
    2. Lock the selector cable adjusting cap.

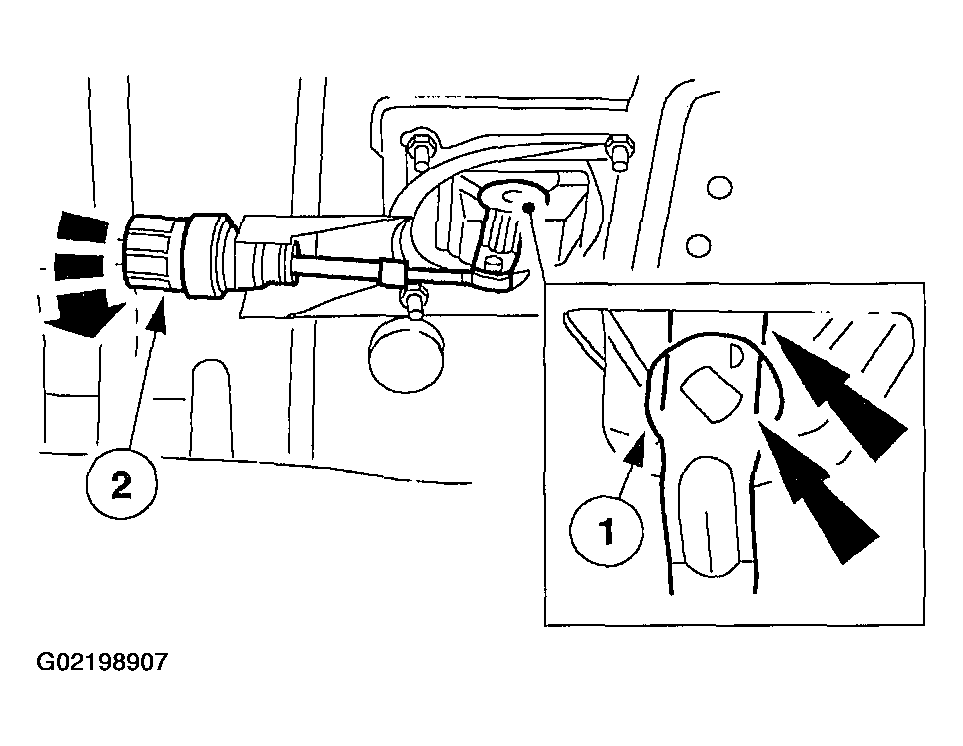

      Fig 2: Identifying Selector Cable Adjusting Cap
      G02198907Courtesy of FORD MOTOR CO.
  4. Lower the vehicle.
