Transmission Range Selector Lever: Disassembly

NOTE: Use a vise with vise jaw protectors for all work to be done in the vise.

Disconnect the connector.
- Push in the retaining tab.

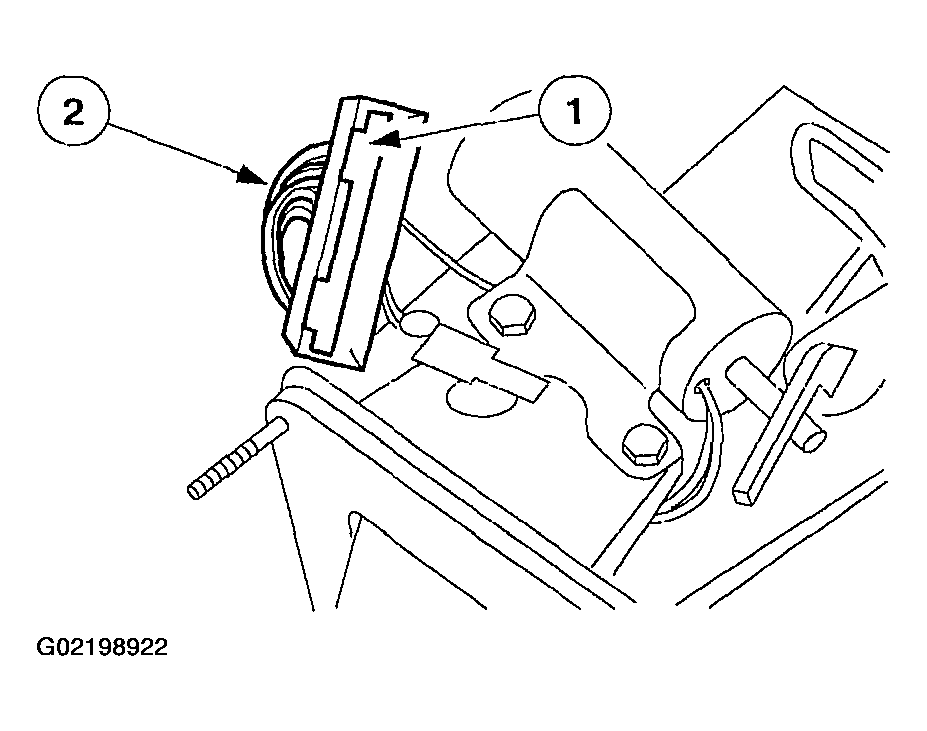

  Fig 1: Disconnecting Connector
  Courtesy of FORD MOTOR CO.
Pull the cables out of the connector.
1. Pull the cable retainer out of the connector.
2. Disconnect each cable and pull it out.

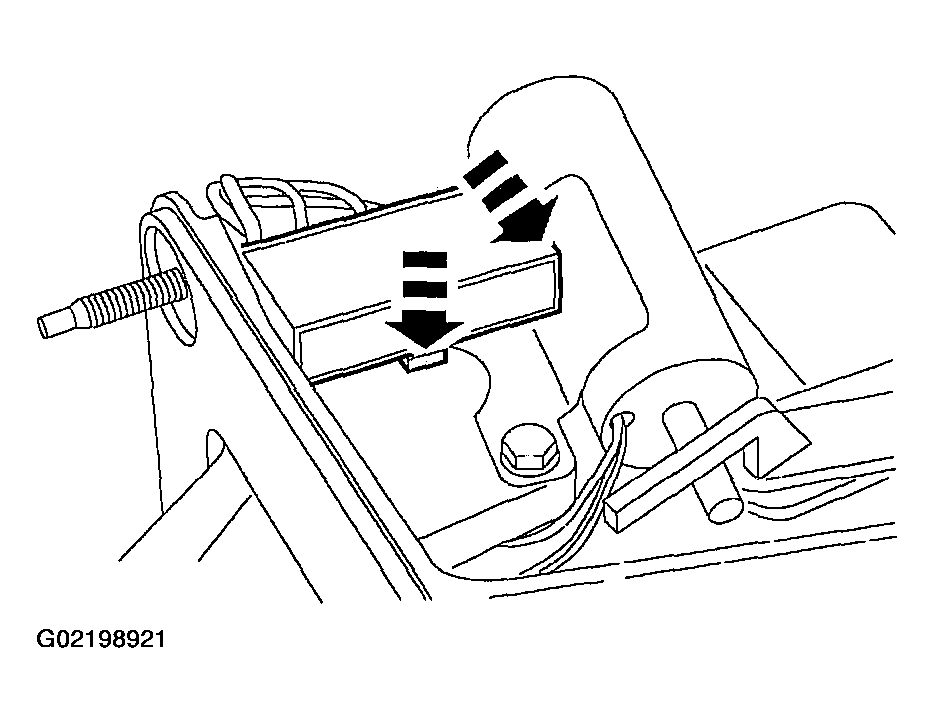

  Fig 2: Pulling Cables Out Of Connector
  Courtesy of FORD MOTOR CO.
Remove the selector lever knob.

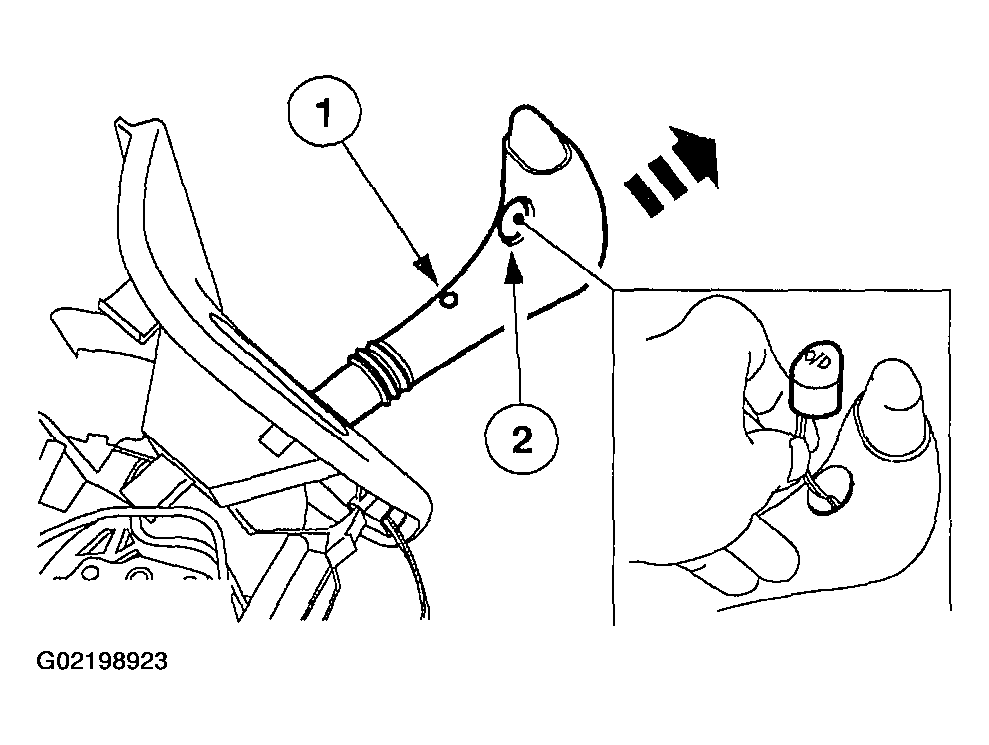

1. Remove the screw and pull off the selector lever knob.
2. Carefully remove the O/D switch and wiring.
Remove the cover.
1. Remove the lamp.
2. Lift off the shifter cover.

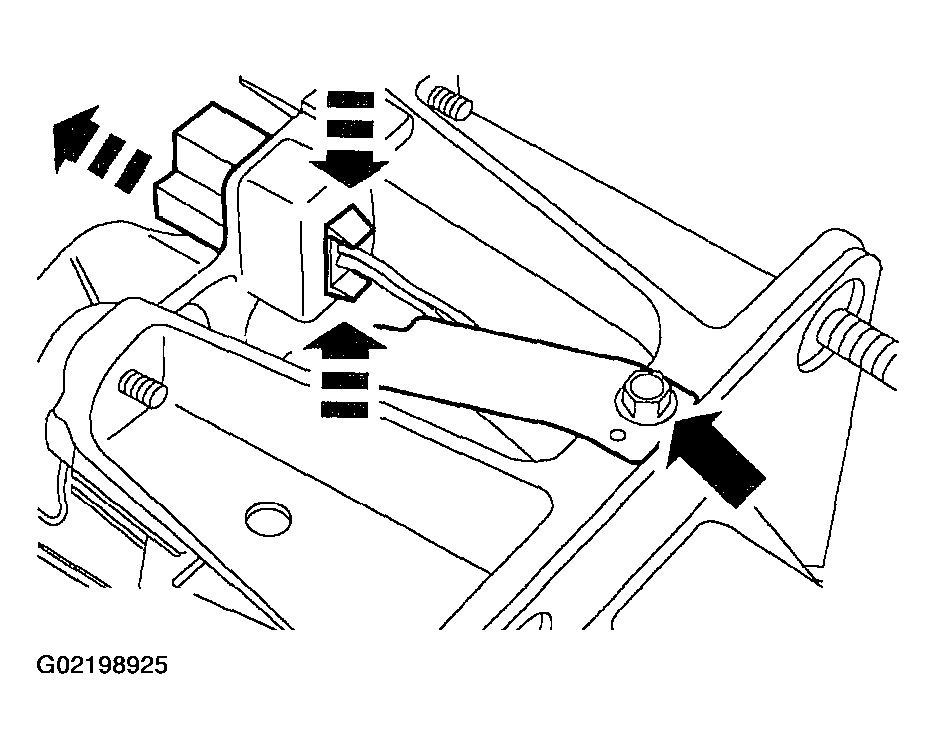

  Fig 4: Removing Cover
  Courtesy of FORD MOTOR CO.
Remove the park position switch and selector lever detent spring.

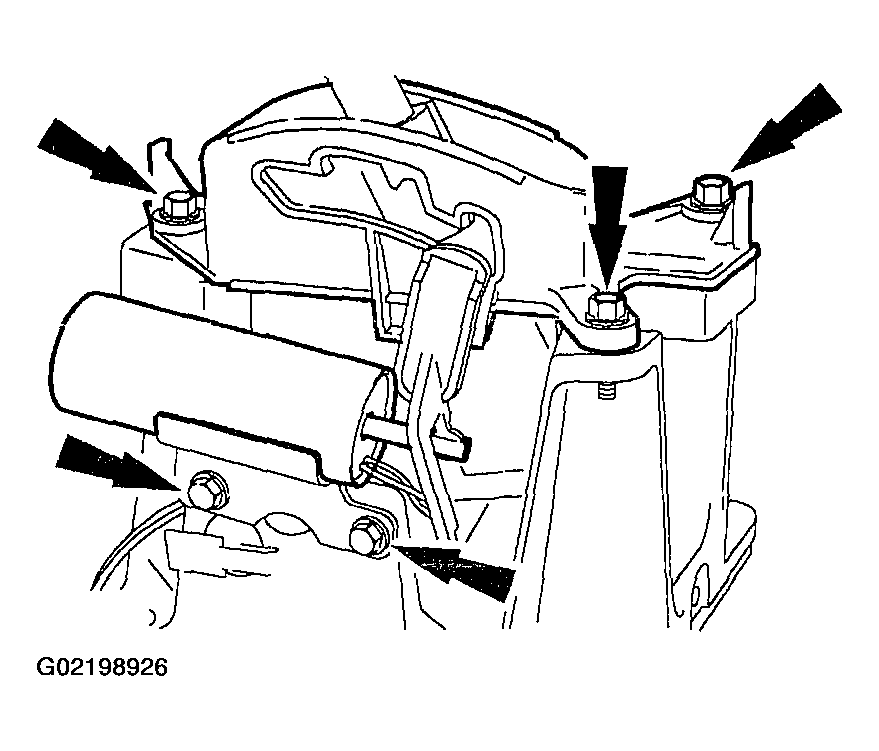

Fig 5: Removing Park Position Switch And Selector Lever Detent Spring
Courtesy of FORD MOTOR CO.
Remove the solenoid switch and the upper part of the body.

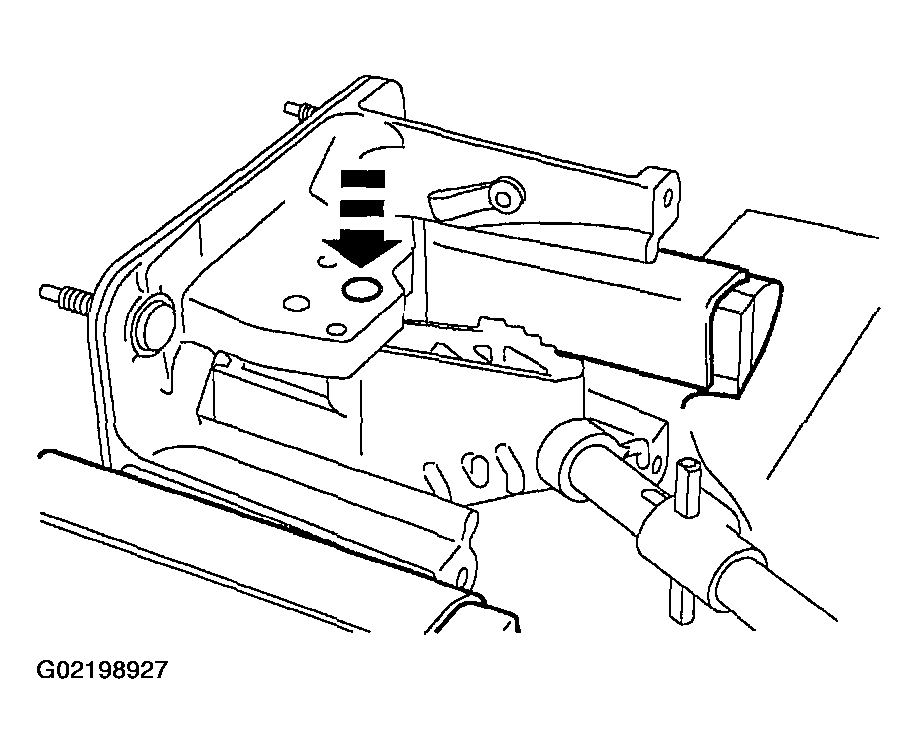

Fig 6: Removing Solenoid Switch And Upper Part Of Body
Courtesy of FORD MOTOR CO.
Remove the selector lever.
- Drive out the pivot pin.
- Pull out the selector lever.

  Fig 7: Removing Selector Lever
  Courtesy of FORD MOTOR CO.
Remove the spring.
1. Secure the spring.
2. Drive out the retaining pin.
  - Pull out the plunger and spring.
  - Pull off the sleeve.

    Fig 8: Removing Spring
    Courtesy of FORD MOTOR CO.
