Pinpoint Test D: The Transaxle Control Switch Is Not Operating Properly

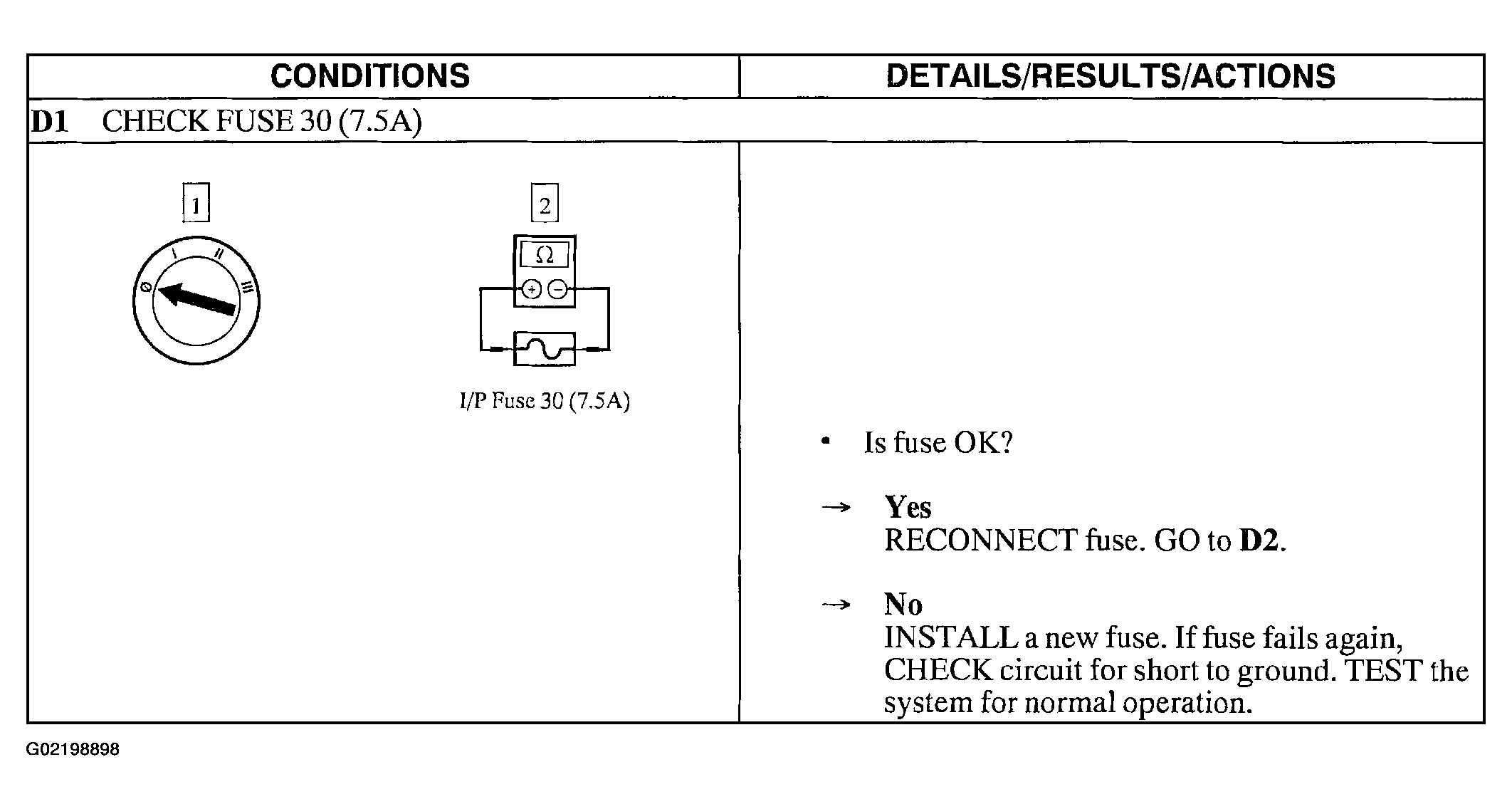

Fig 1: Pinpoint Test D: Transaxle Control Switch Is Not Operating Properly (D1)
G02198898Courtesy of FORD MOTOR CO.

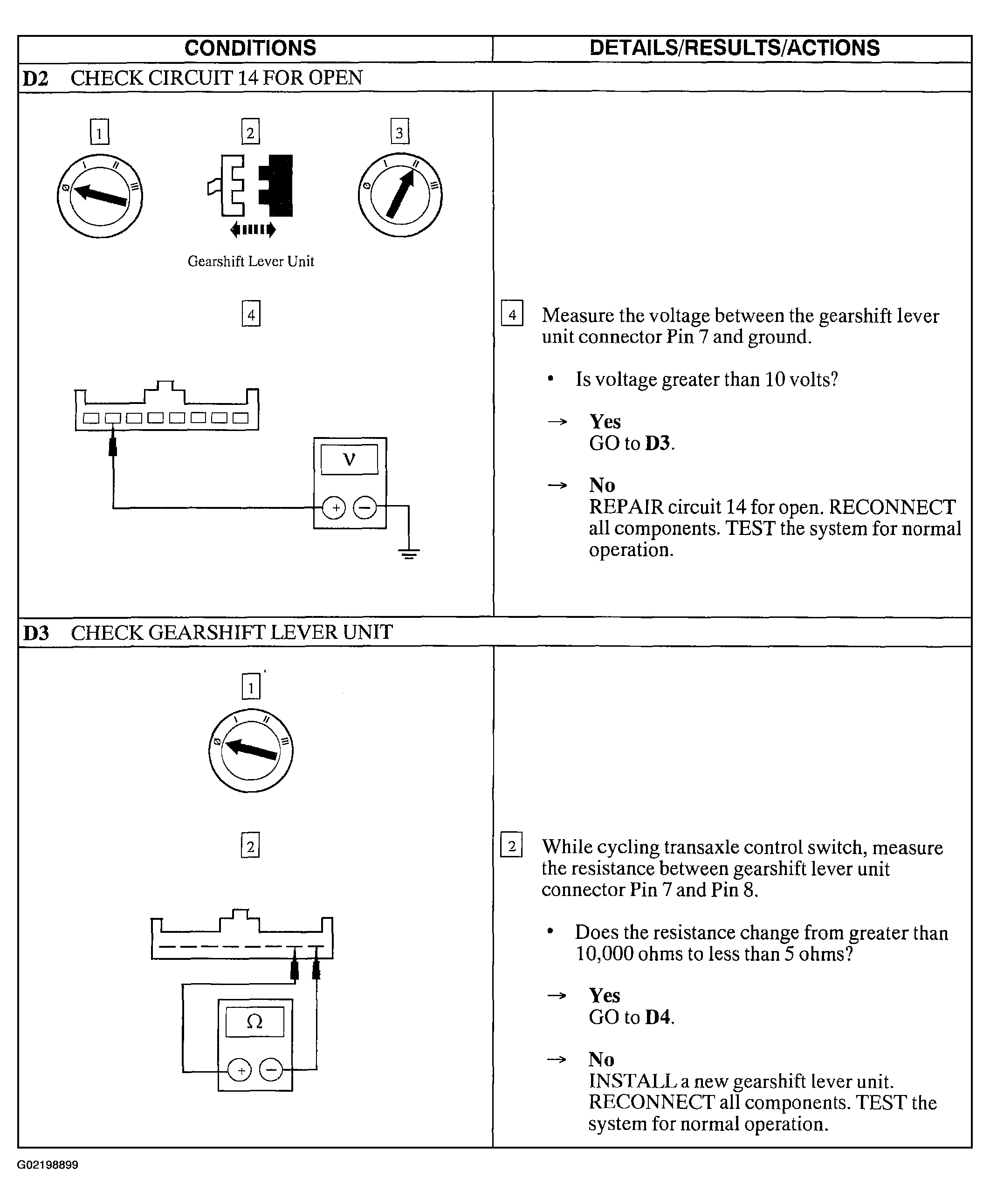

Fig 2: Pinpoint Test D: Transaxle Control Switch Is Not Operating Properly (D2 & D3)
G02198899Courtesy of FORD MOTOR CO.

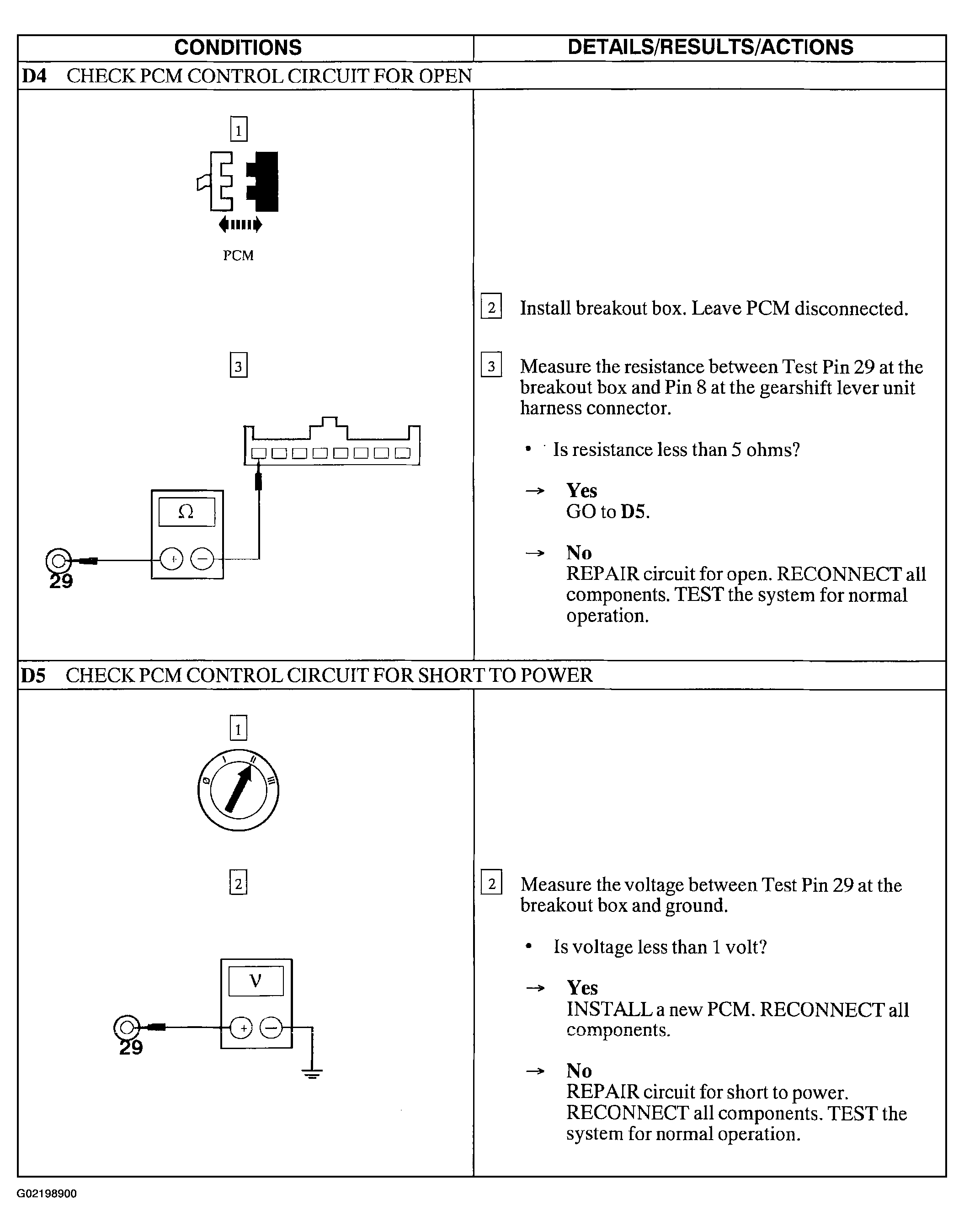

Fig 3: Pinpoint Test D: Transaxle Control Switch Is Not Operating Properly (D4 & D5)
G02198900Courtesy of FORD MOTOR CO.
