Selector Lever Lock

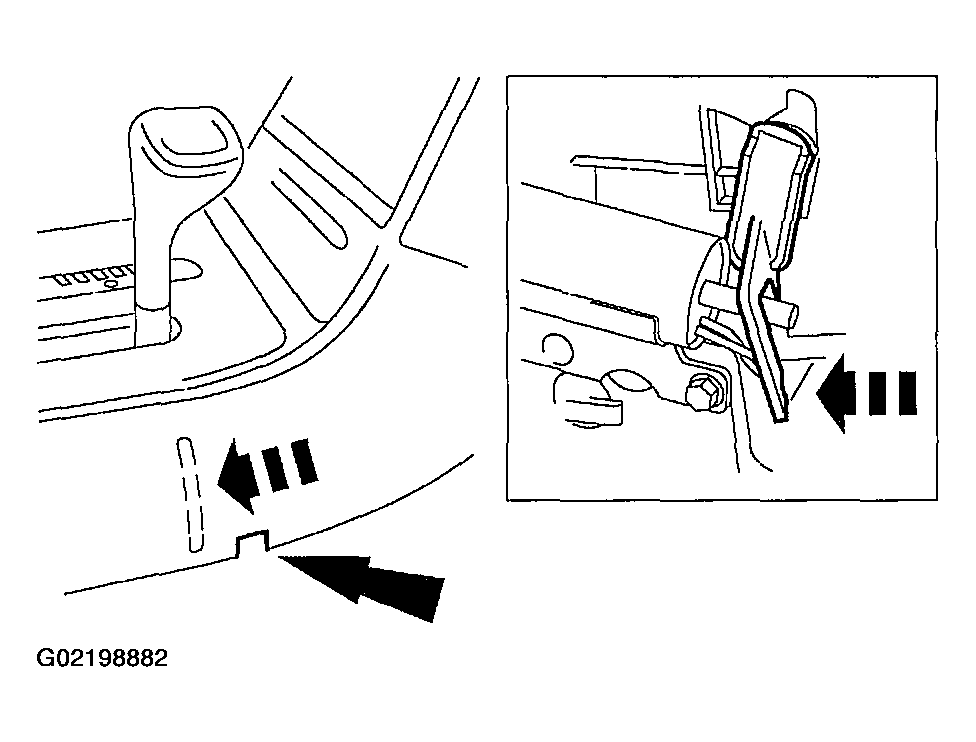

Fig 1: Identifying Selector Lever Lock
G02198882Courtesy of FORD MOTOR CO.
NOTE: If the selector lever is moved back to "P" it is re-locked.

The selector lever lock can be moved mechanically out of position "P" when for example the battery is disconnected or completely discharged.

Using a ball point pen or similar item as an unlocking lever, push forwards and hold in position.

Move the selector lever out of position "P".
