Toe-In Adjustment: Rear

Loosen nut on eccentric subframe bolt. See Fig 1 . Turn eccentric bolt and washer to achieve required setting. See WHEEL ALIGNMENT SPECIFICATIONS  . While holding bolt, tighten nut to specification. See TORQUE SPECIFICATIONS  .

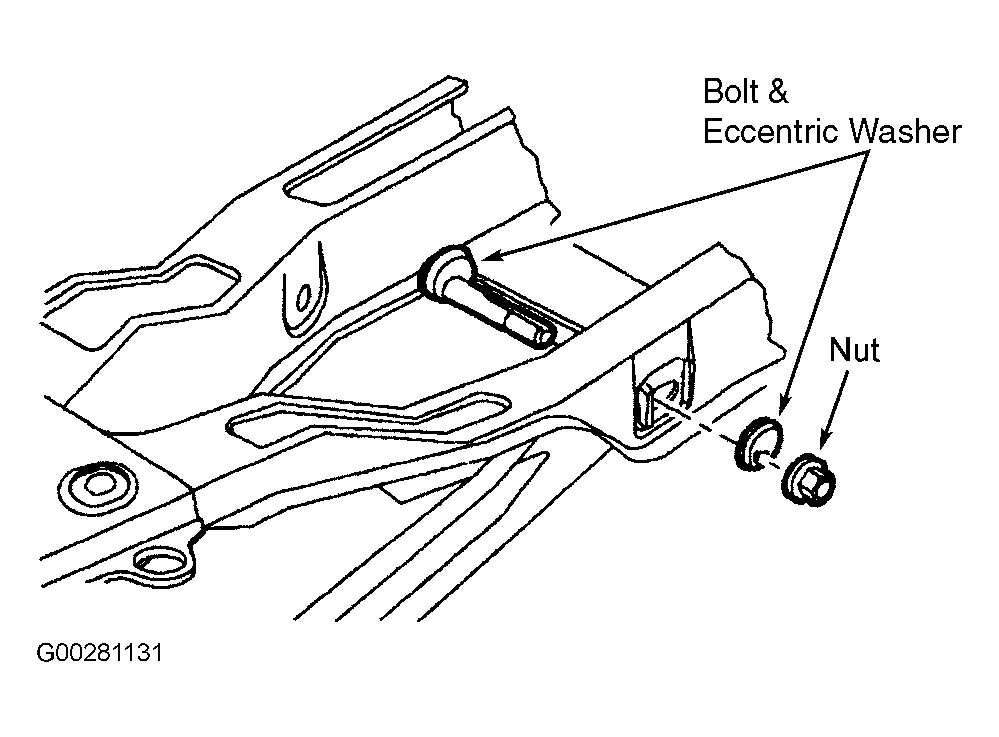

Fig 1: Adjusting Rear Toe

Courtesy of FORD MOTOR CO.
