Front Wheel Speed Sensor: Removal

  1. Loosen the wheel nuts.
  2. Raise and support the vehicle.
  3. Remove the wheel.
  4. Remove the wheel sensor.

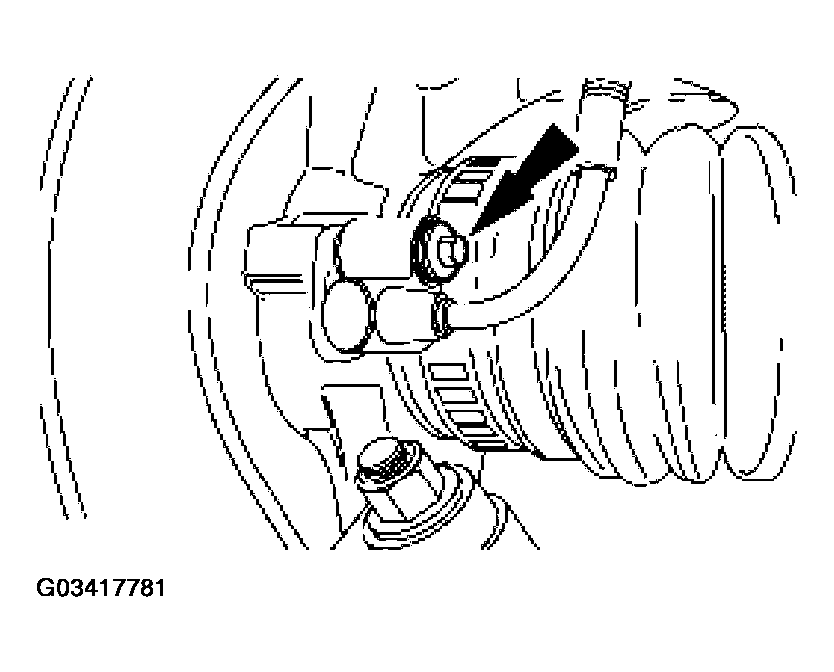

    Fig 1: Removing Wheel Sensor
    G03417781Courtesy of FORD MOTOR CO.
  5. Disconnect the wheel sensor wiring from the support bracket and clips.

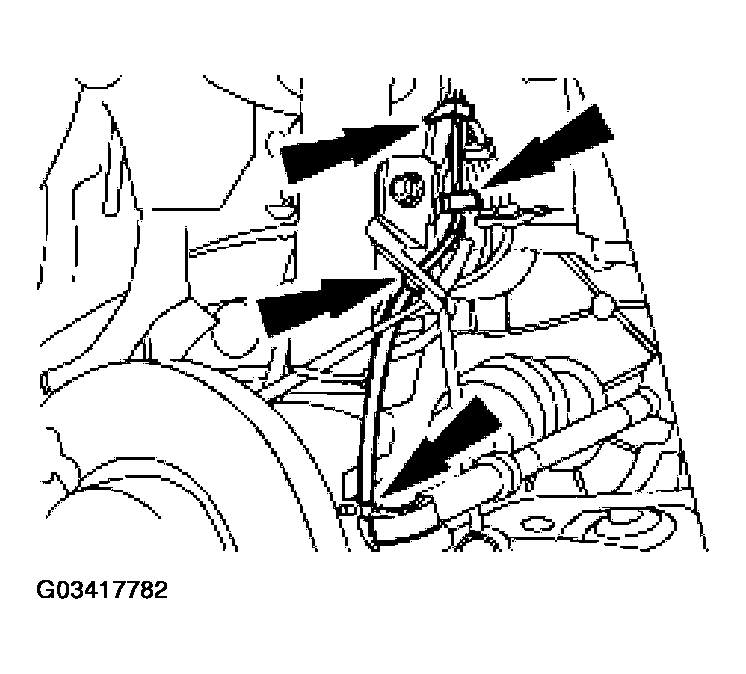

    Fig 2: Disconnecting Wheel Sensor Wiring
    G03417782Courtesy of FORD MOTOR CO.
  6. Remove the fender splash shield.
  7. Disconnect the wheel sensor electrical connector.
    Fig 3: Disconnecting Wheel Sensor Electrical Connector
    G03417783Courtesy of FORD MOTOR CO.
