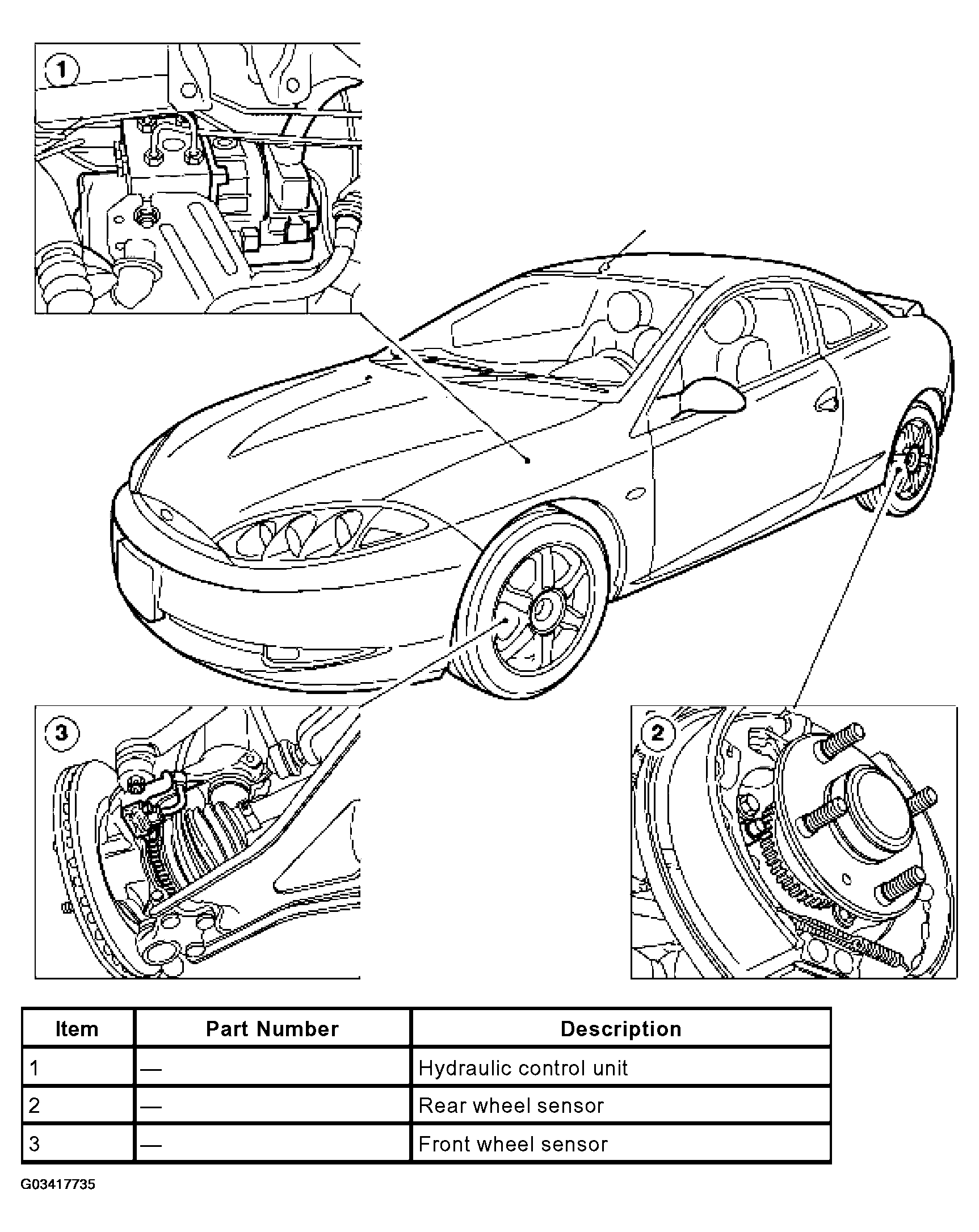

Hydraulic Control Unit
The Hydraulic Control Unit (HCU) is an integrated unit and is located below the brake booster. The HCU consists of the following components:
- An electronic control unit with relays.
- An eight solenoid valve body.
- A pump motor.
- An anti-lock control module.
- An anti-lock brake relay.
The HCU is a non-repairable unit.
