Pinpoint Test L: The Traction Control Is Inoperative

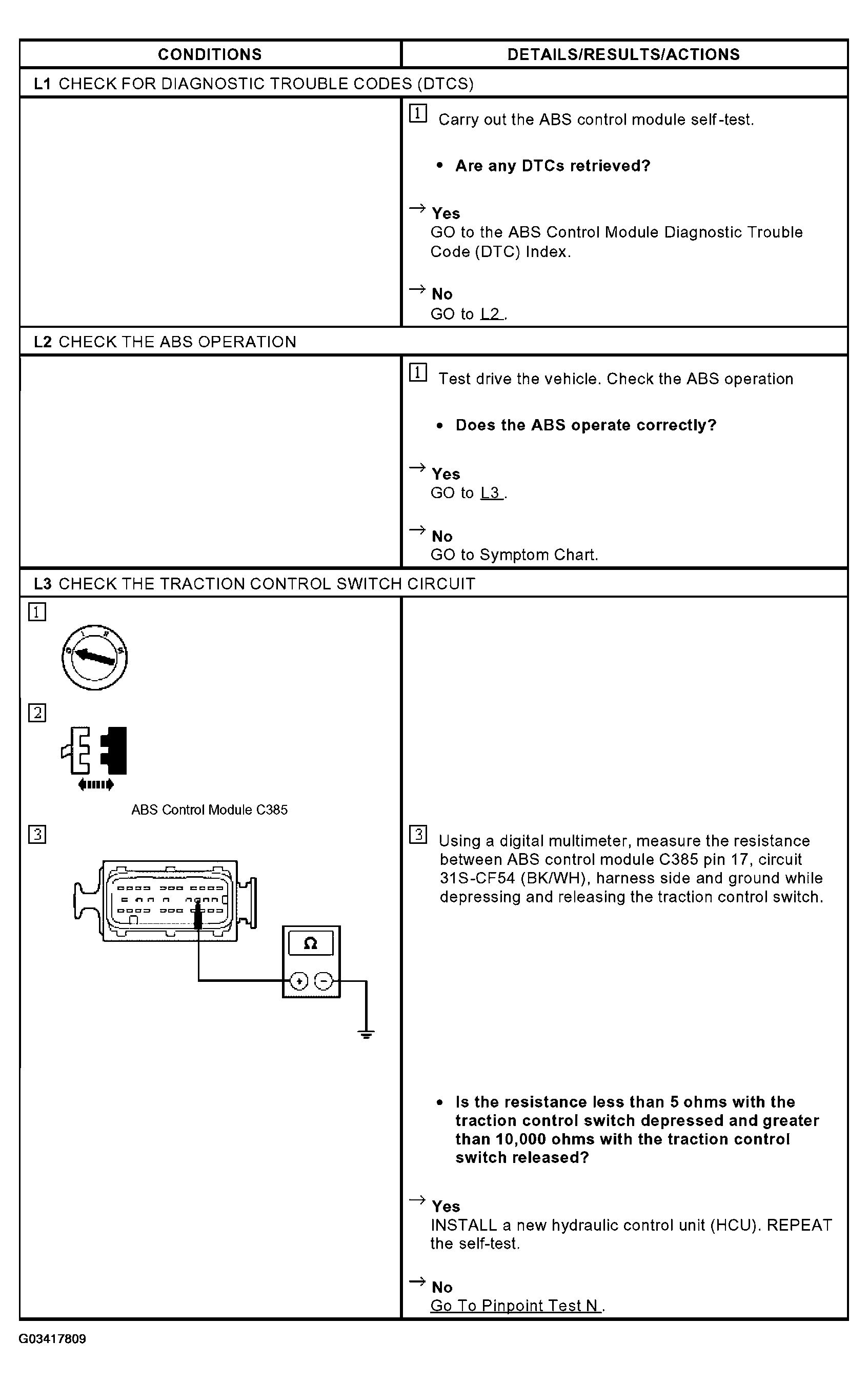

Fig 1: Pinpoint Test L: Traction Control Is Inoperative (L1 - L3)

G03417809

Courtesy of FORD MOTOR CO.
