Mercury
>>
2002
>>
Cougar 2.5 L, Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Keyless Entry/Computer Operated Locks
>>
Diagnosis And Testing
>>
Keyless Entry
>>
Pinpoint Tests
>>
Pinpoint Test A: The Doors Do Not Lock/Unlock Using The Remote Transmitter
Pinpoint Test A: The Doors Do Not Lock/Unlock Using The Remote Transmitter

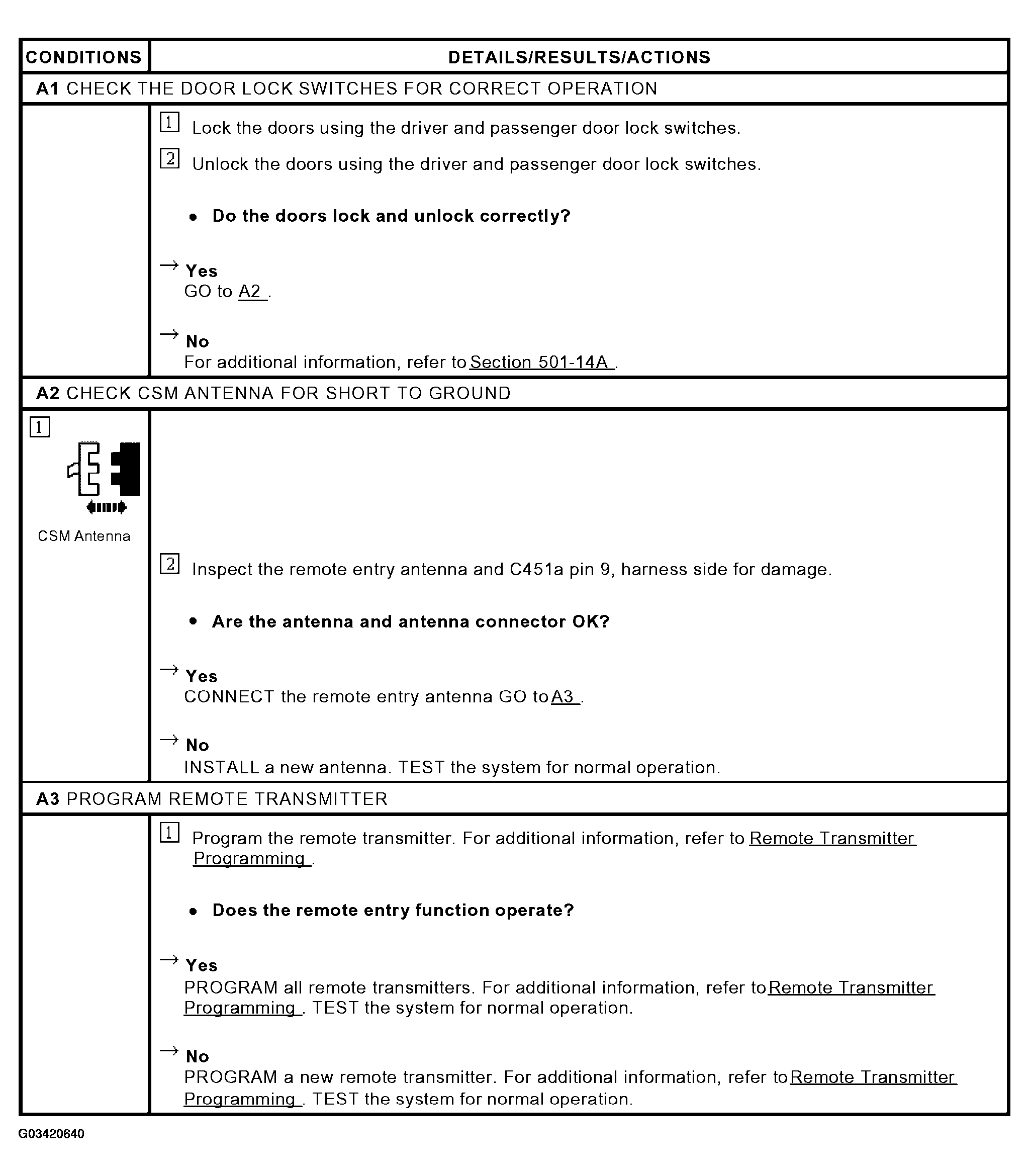

Fig 1: Pinpoint Test A: Doors Do Not Lock/Unlock Using Remote Transmitter
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
