Central Junction Box

NOTE: Central junction box may also be referred to as passenger compartment fuse panel.

NOTE: Central junction box is located under driver's side of instrument panel. See Figure and Figure .

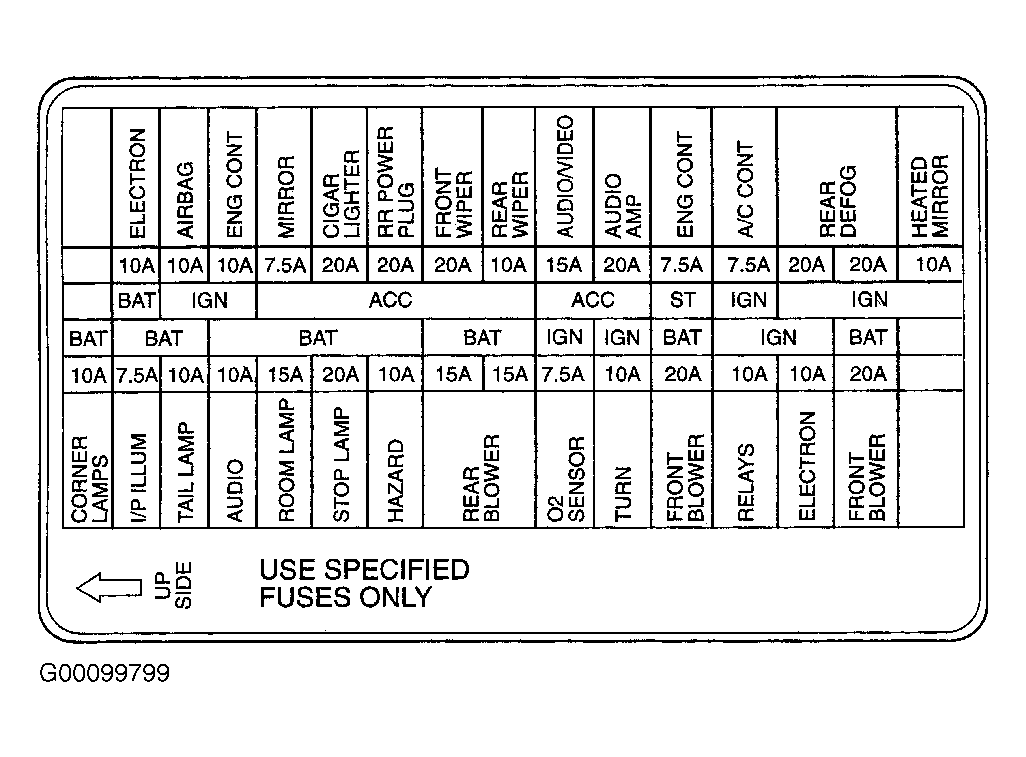

Fig 1: Identifying Central Junction Box Fuses

Courtesy of FORD MOTOR CO.

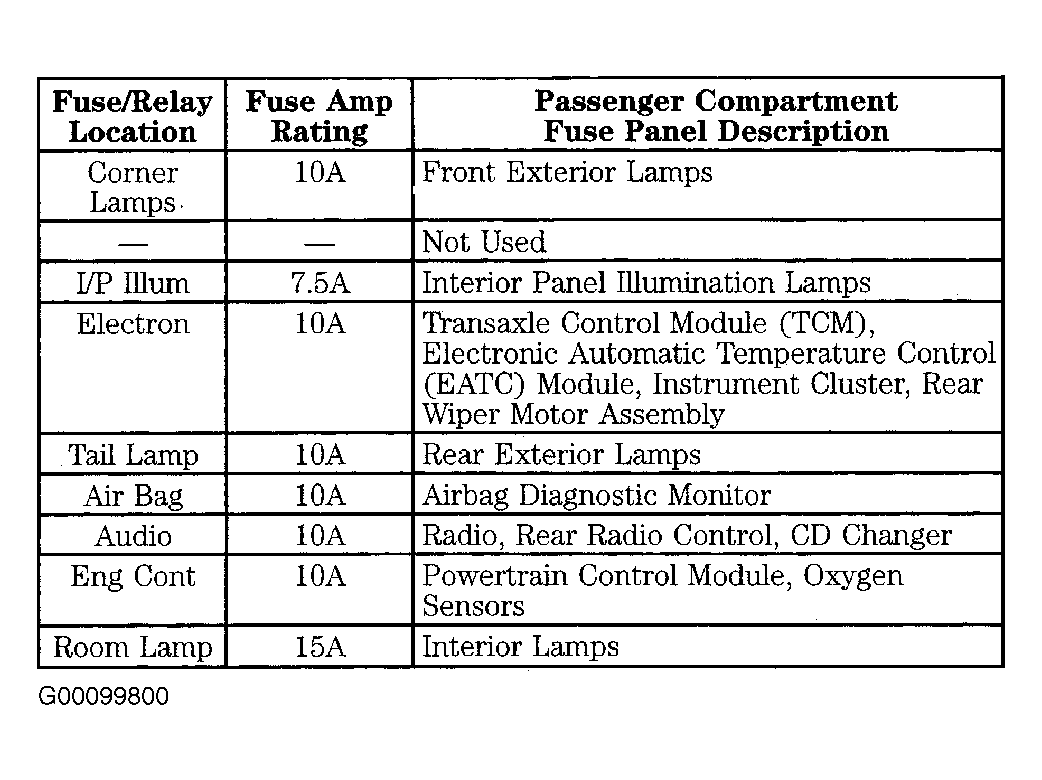

Fig 2: Central Junction Box Legend (1 Of 2)

Courtesy of FORD MOTOR CO.

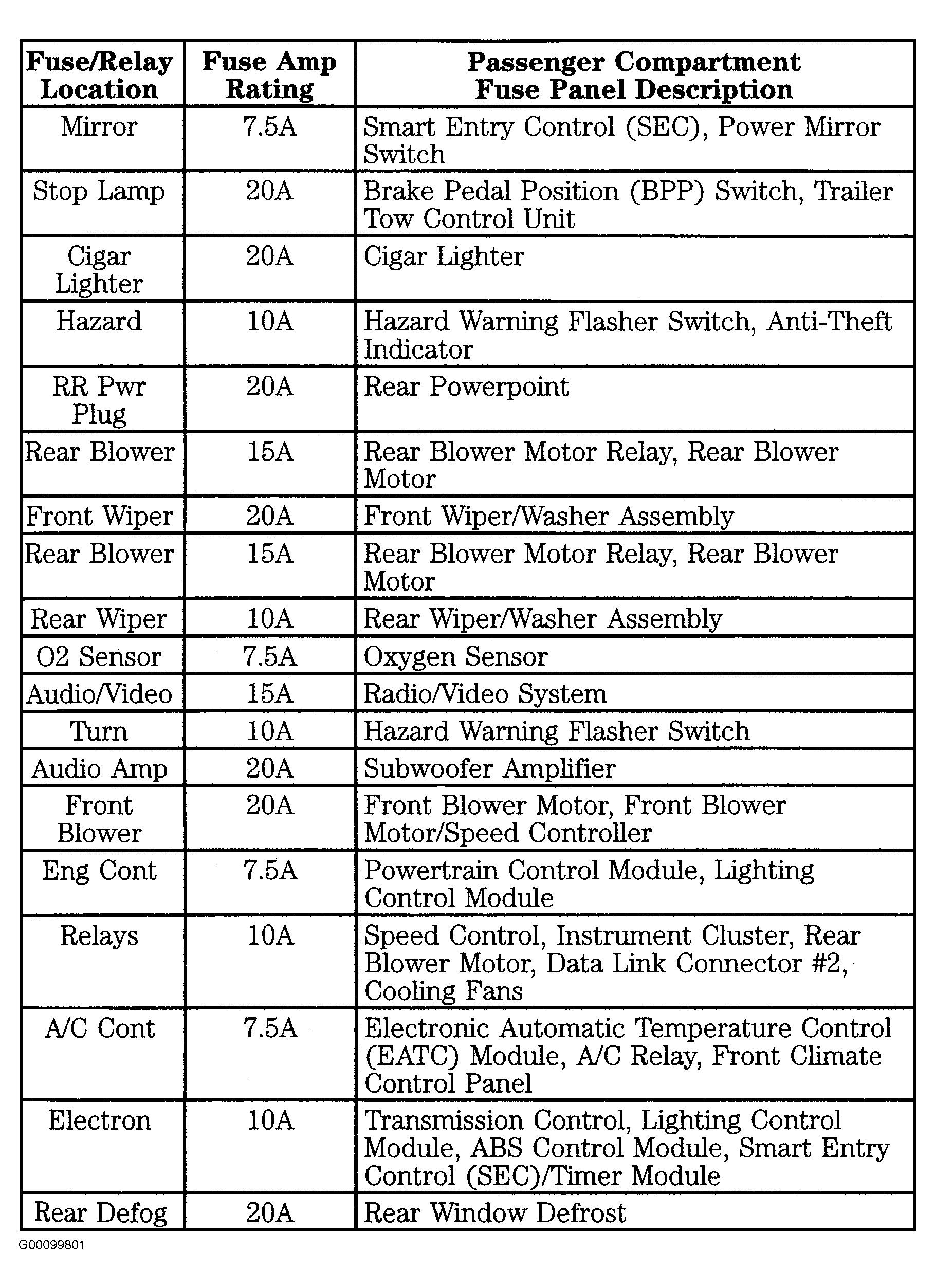

Fig 3: Central Junction Box Legend (2 Of 2)

Courtesy of FORD MOTOR CO.

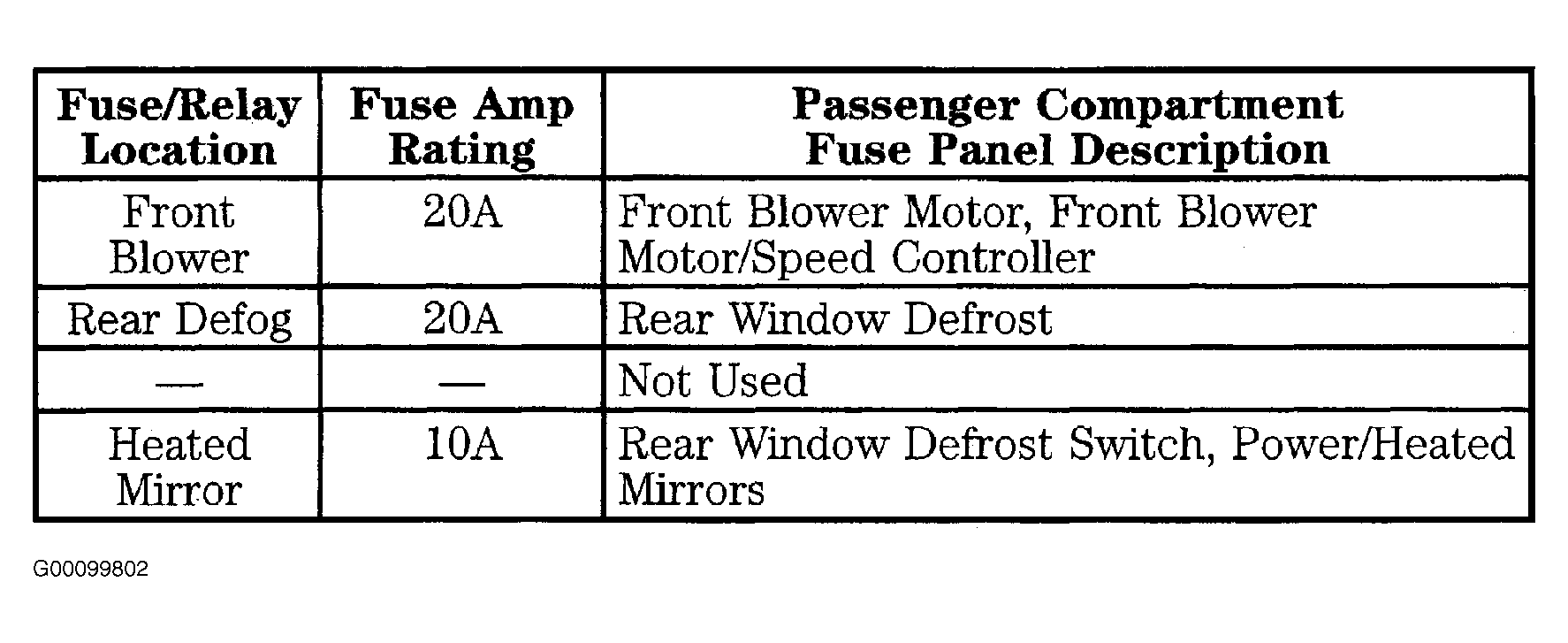

Fig 4: Passenger Compartment Fuse Panel Legend (3 Of 3)

Courtesy of FORD MOTOR CO.
