DEACTIVATOR Switch

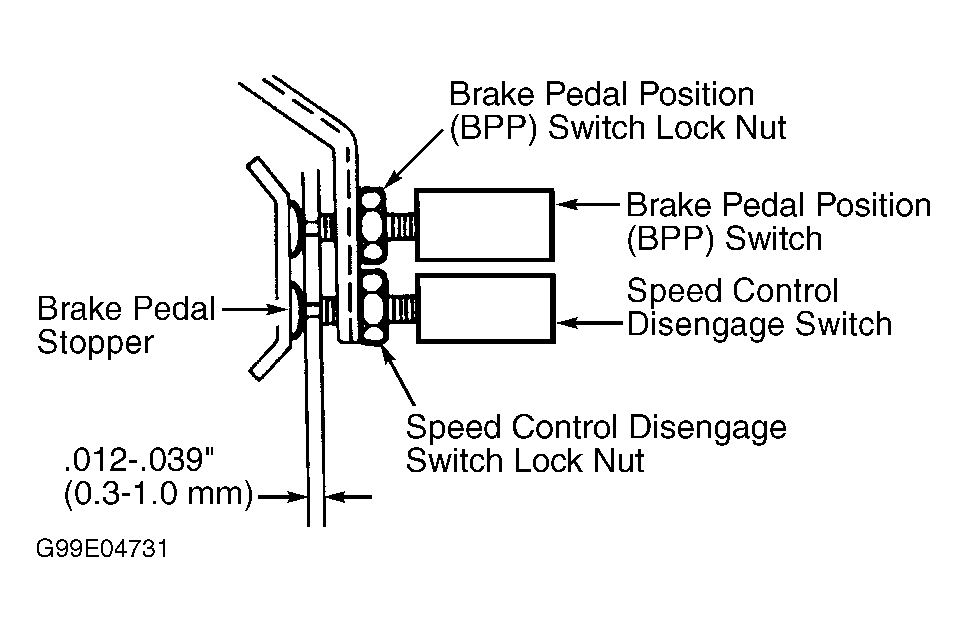

Adjust brake pedal height. See BRAKE PEDAL HEIGHT . Disconnect negative battery cable. Measure distance between brake pedal stopper and threaded end of speed control deactivator or Brake Pedal Position (BPP) switch. See Fig 1 . Distance should be .012-.039" (0.3-1.0 mm). If distance is not as specified, loosen appropriate switch lock nut. Adjust switch until distance is as specified. Tighten lock nut to 11 ft. lbs. (15 N.m).
