Transaxle Support Insulator: Installation

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine and transaxle support insulator and bolts.

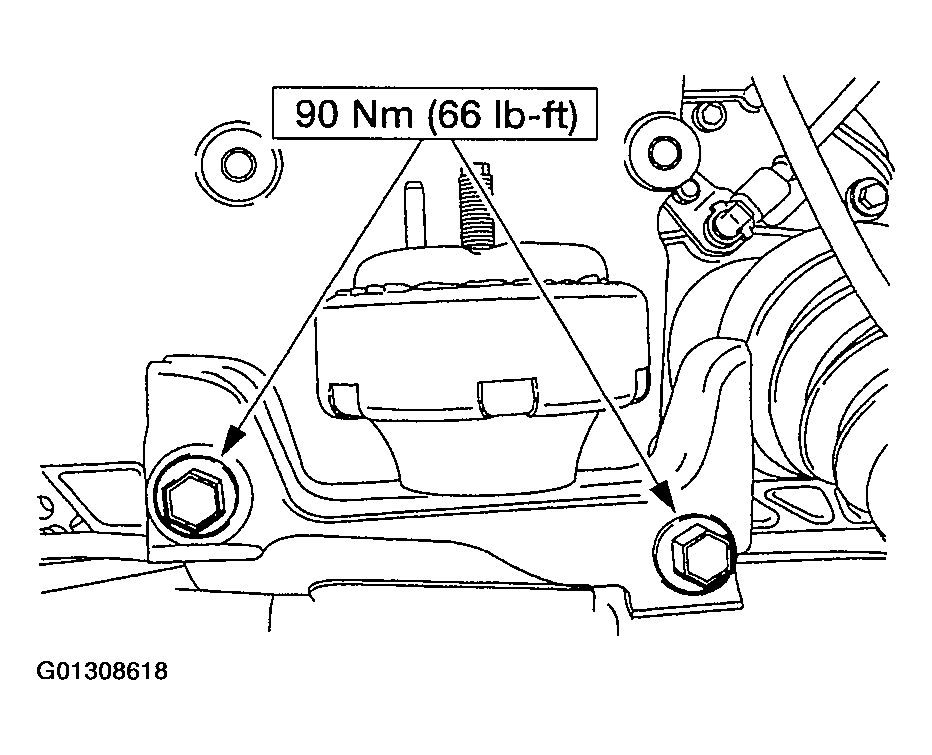

    Fig 1: Installing Engine And Transaxle Support Insulator And Bolts
    G01308618Courtesy of FORD MOTOR CO.
  2. Install the engine and transaxle upper support bracket bolts and bracket.

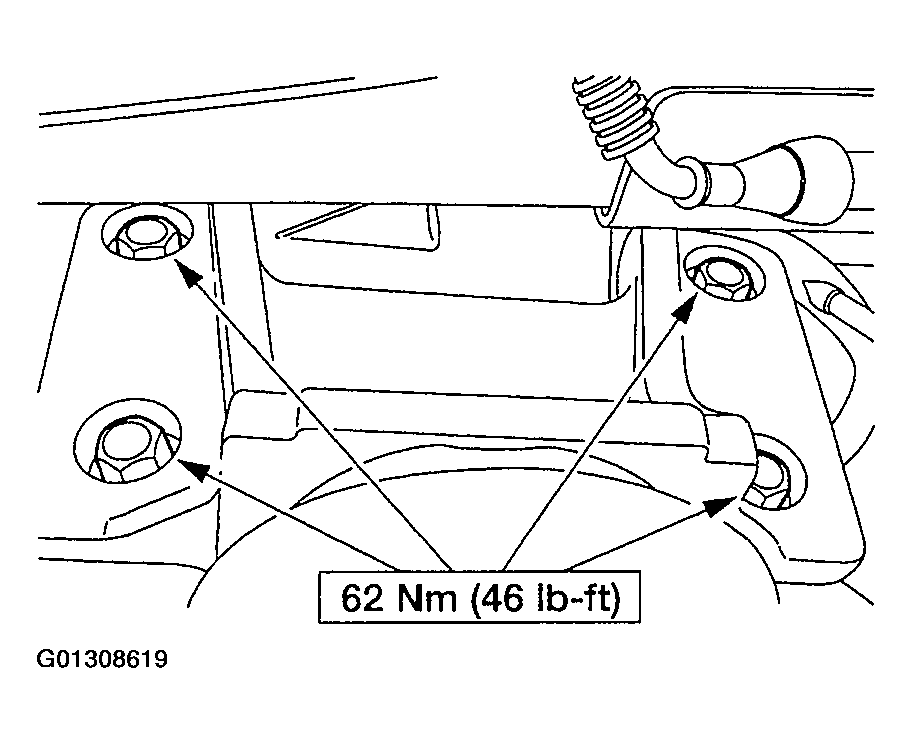

    Fig 2: Installing Engine And Transaxle Upper Support Bracket Bolts And Bracket
    G01308619Courtesy of FORD MOTOR CO.
  3. Install the engine and transaxle upper support insulator nut.

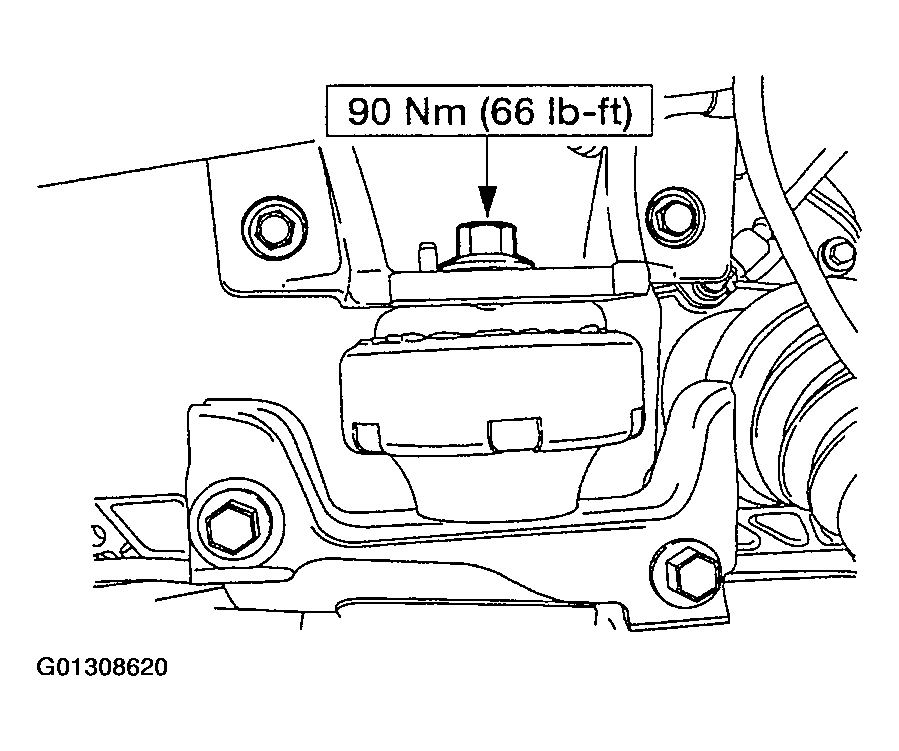

    Fig 3: Installing Engine And Transaxle Upper Support Insulator Nut
    G01308620Courtesy of FORD MOTOR CO.
  4. Remove the high lift transmission jack.
  5. Install the LH wheel and tire.
  6. Lower the vehicle.
