Component Locations
NOTE:

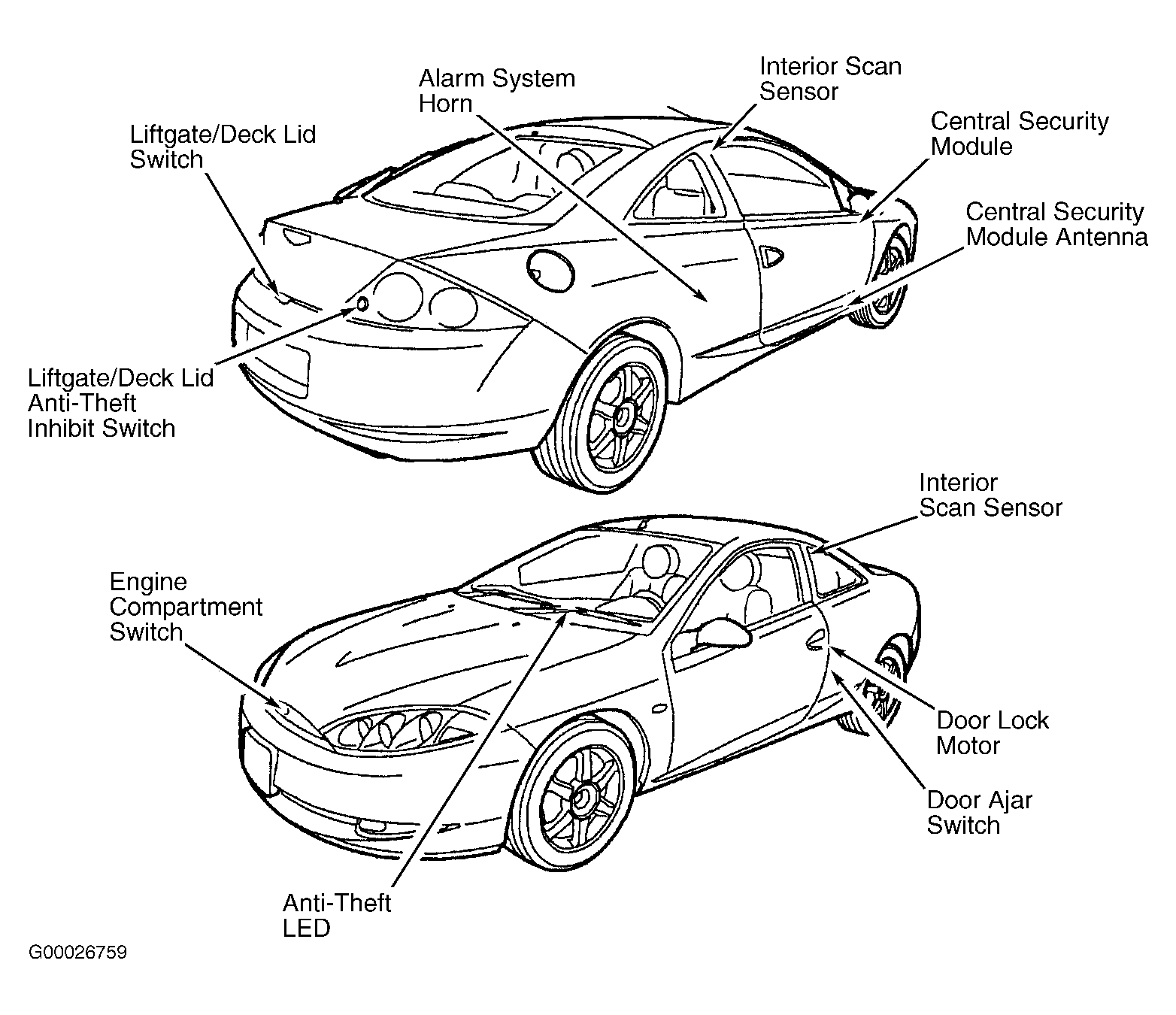

Central locking module may also be referred to as Central Security Module (CSM). For component locations, refer to illustration. See Fig 1
.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Alarm System Horn | Behind Passenger's Side Rear Quarter Trim Panel |
| Anti-Theft Flasher Relay | Center Of Passenger Side "A" Pillar |
| Battery Junction Box | Left Front Of Engine Compartment |
| Central Junction Box | Behind Left Side Of Instrument Panel |
| Central Locking Module | Above Passenger Side Kick Panel |
| Data Link Connector | Below Instrument Panel, Right Of Steering Column |
| Door Lock Motors | Part Of Door Latch Assemblies |
| In-Line Harness Connector | Center Of Passenger Side "A" Pillar at Bottom |
| Hybrid Electronic Cluster Module | Integral Part Of Instrument Cluster. |
| Interior Scan Sensors | Top Of "B" Pillars |
| Liftgate/Decklid Anti-Theft Inhibit Switch | Rear Center Of Trunk |
| Liftgate/Decklid Switch | Rear Of Trunk On Passenger's Side |
| Tailgate Ajar Relays 1 & 2 | Behind Dashboard On Passenger's Side |
