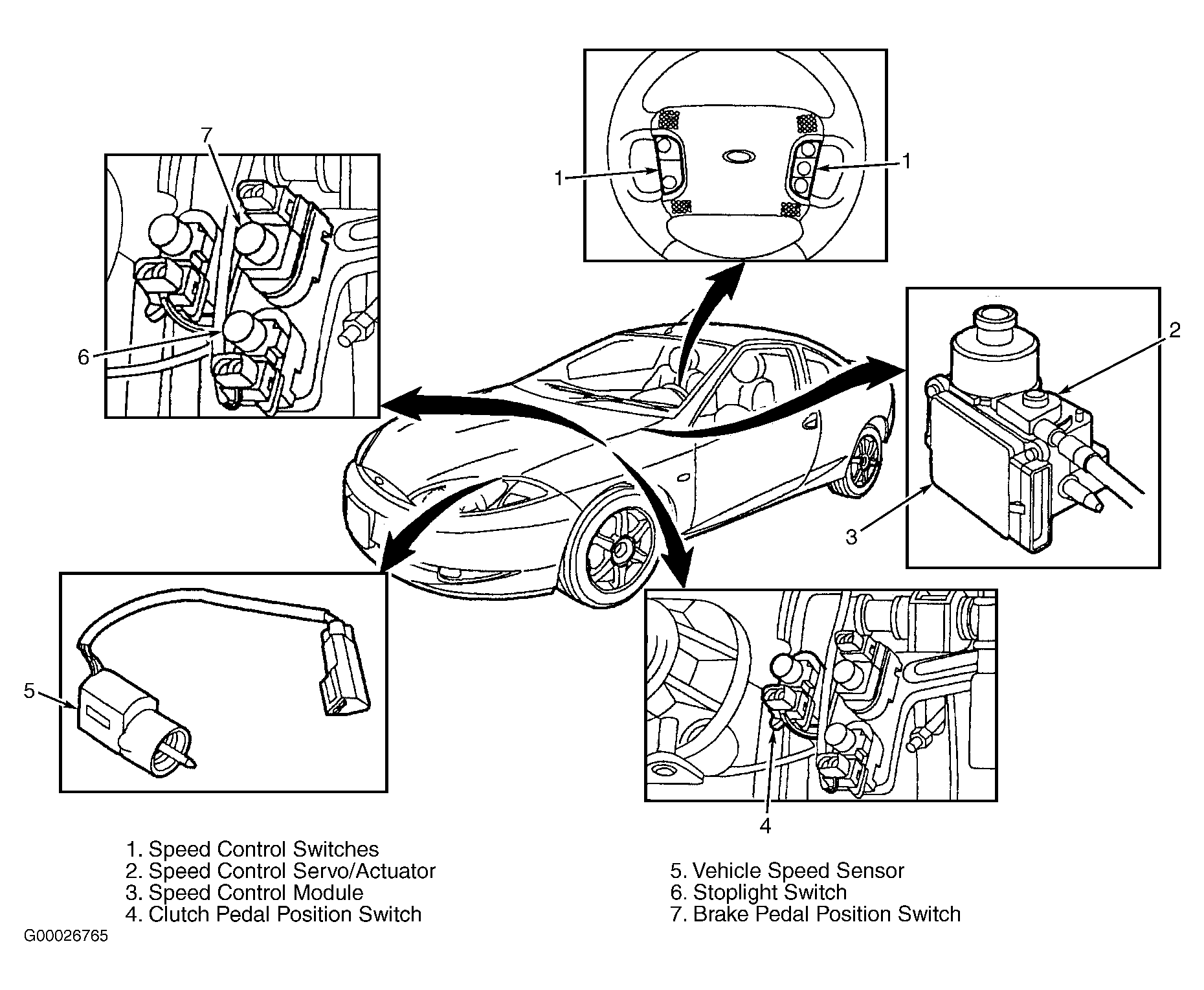

Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Brake Pedal Position Switch | On Brake Pedal Bracket |
| Clutch Pedal Position Switch | On Clutch Pedal Bracket |
| Speed Control Switches | On Steering Wheel |
| Speed Control Module | Attached To Speed Control Servo/Actuator |
| Speed Control Servo/Actuator | Left Rear Of Engine Compartment, On Strut Tower |
| Stoplight Switch | On Brake Pedal Bracket, Below Brake Pedal Position Switch |
| Vehicle Speed Sensor | On Side Of Transmission |
