Power Distribution Box

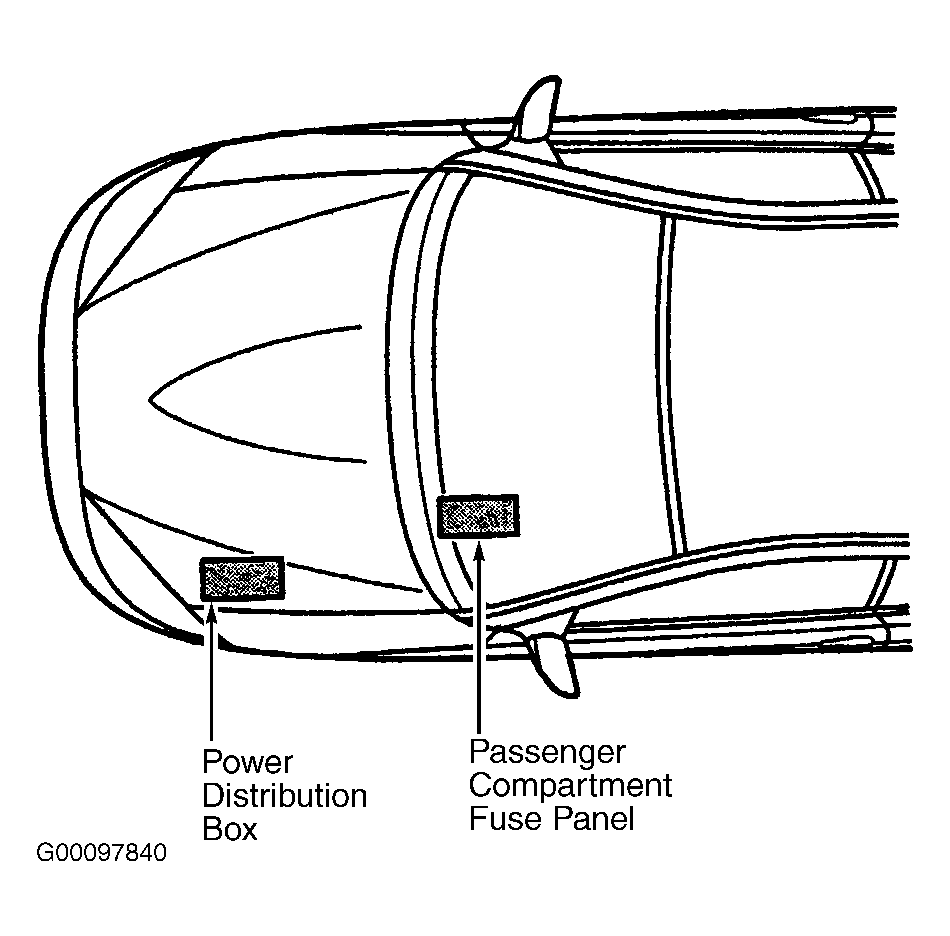

NOTE: Power distribution box may also be referred to as Battery Junction Box (BJB). Power distribution box is located on the drivers side of engine compartment, near battery. See Figure.

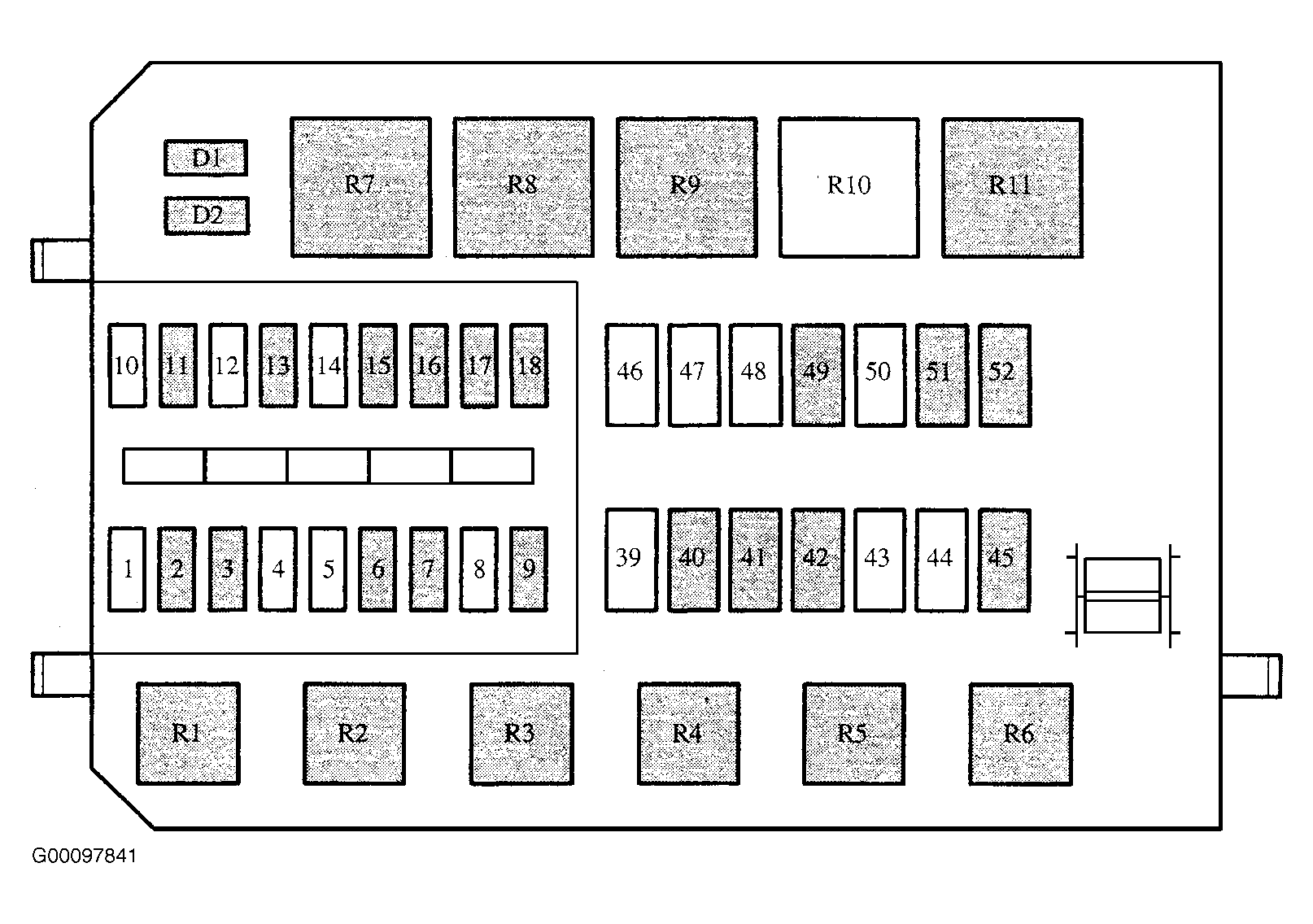

Fig 1: Identifying Power Distribution Box Components

Courtesy of FORD MOTOR CO.

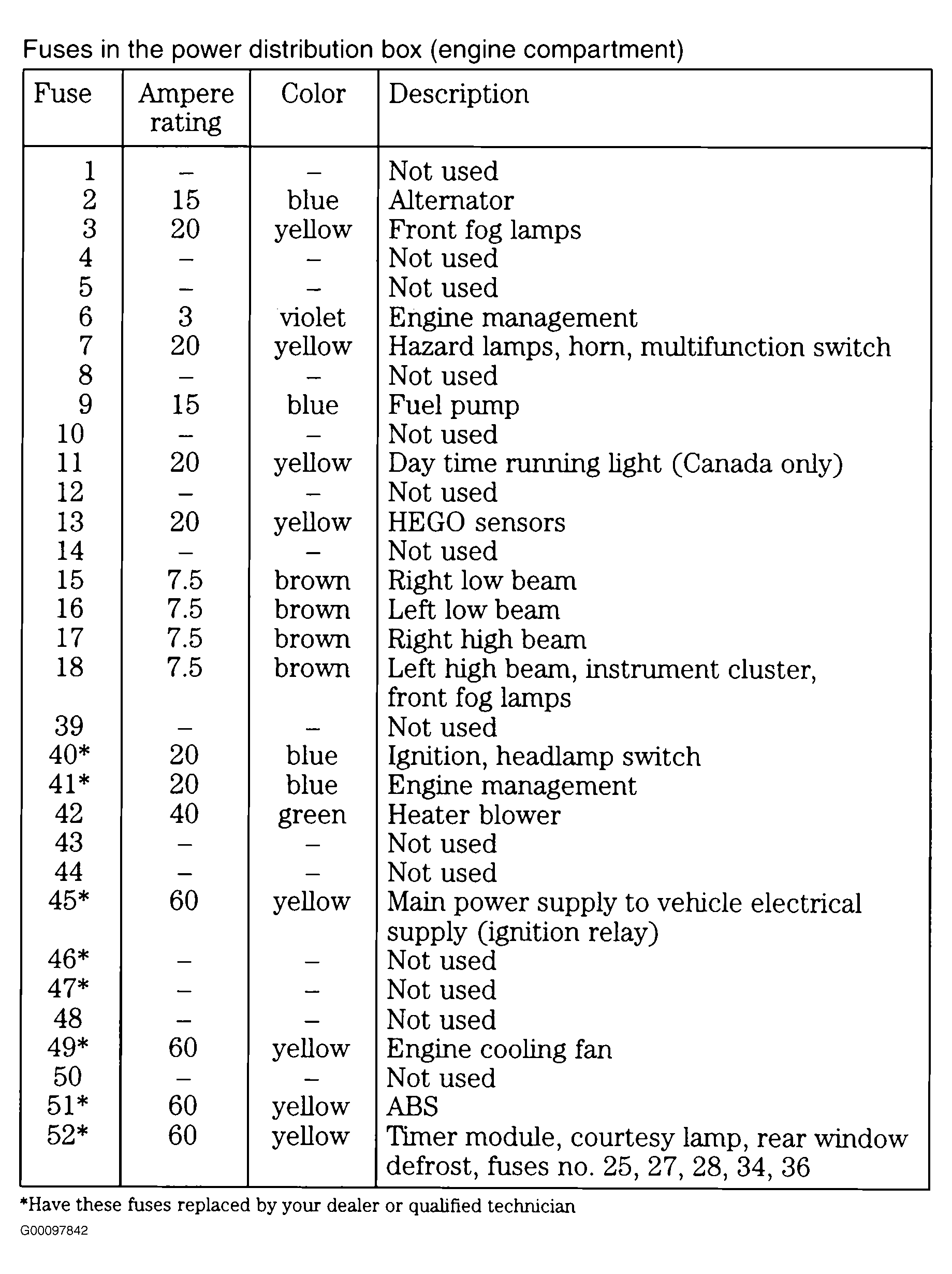

Fig 2: Power Distribution Box Legend (1 Of 2)

Courtesy of FORD MOTOR CO.

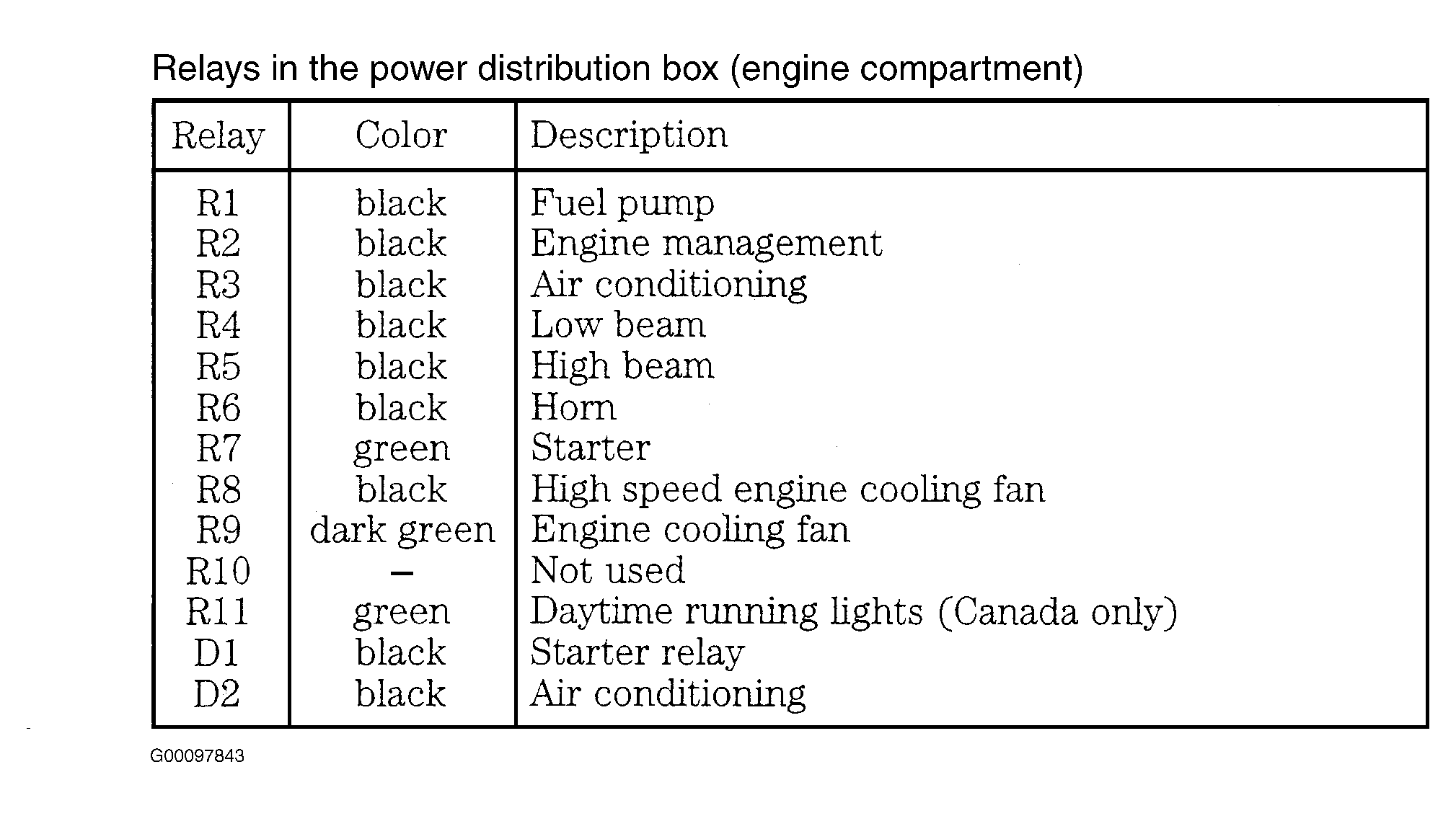

Fig 3: Power Distribution Box Legend (2 Of 2)

Courtesy of FORD MOTOR CO.
