Selector Lever Cable: Installation

All vehicles

1. Attach the selector cable to the selector lever assembly.
   NOTE: Do not lock the selector cable adjusting cap.
   1. Insert the selector cable to the bracket.
   2. Clip the selector cable in place.

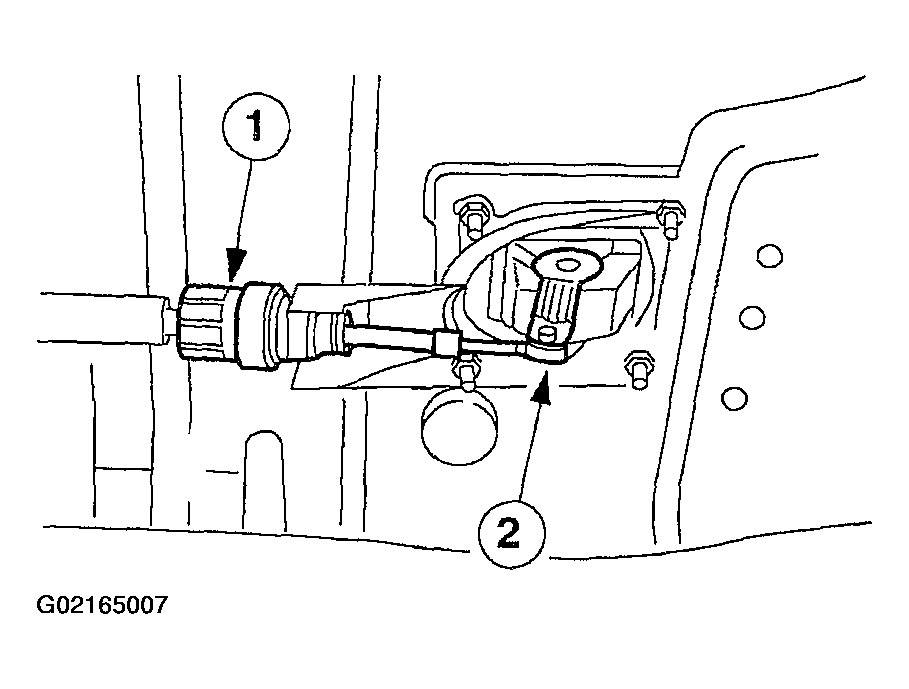

   Fig 1: Attaching Selector Cable To Selector Lever Assembly


2. Install the heat shield.
3. Lower the vehicle.
4. Connect the shifter cable.
   1. Position the cable.
   2. Install the bolts.

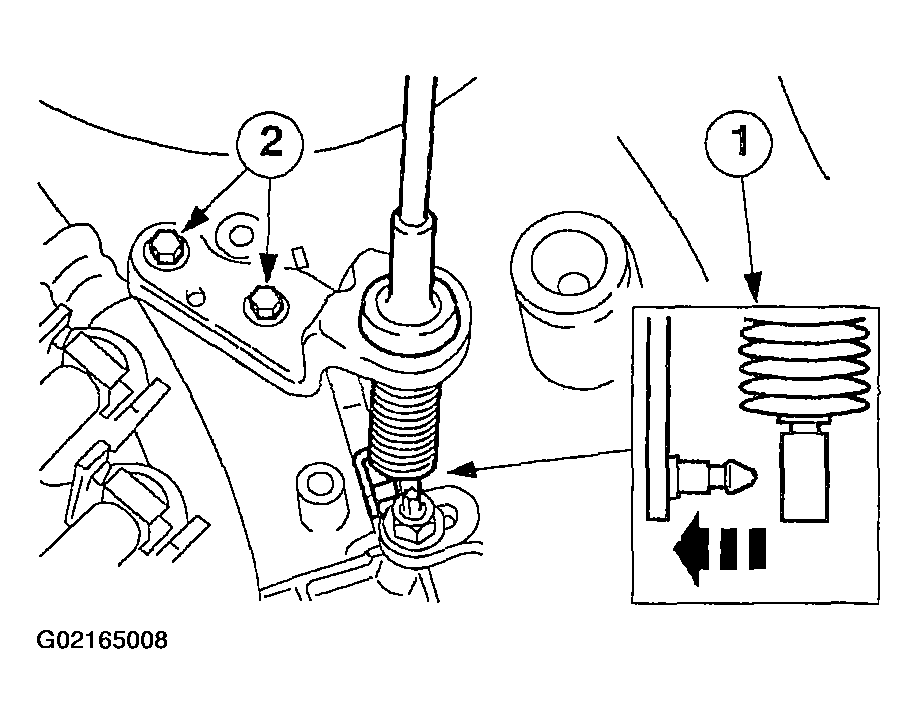

   Fig 2: Connecting Shifter Cable


5. Adjust the selector cable. See SELECTOR LEVER CABLE ADJUSTMENT .

   Vehicles with 2.5L engine

6. Install the air cleaner (AC).
