Selector Lever Cable Adjustment: Adjustment

    NOTE: The selector lever has its own detent mechanism. There is no need to hold it after engaging a gear.
    Fig 1: Moving Selector Lever To Position "D"
    G02165030
  1. Move the selector lever to position "D".
  2. Raise and support the vehicle.
  3. Adjust the selector cable.
    NOTE: The marks line up in position "D". It is not necessary to hold it after engaging a gear because it has its own detent mechanism.
    1. Move the selector lever to position "D".
    2. Lock the selector cable adjusting cap.

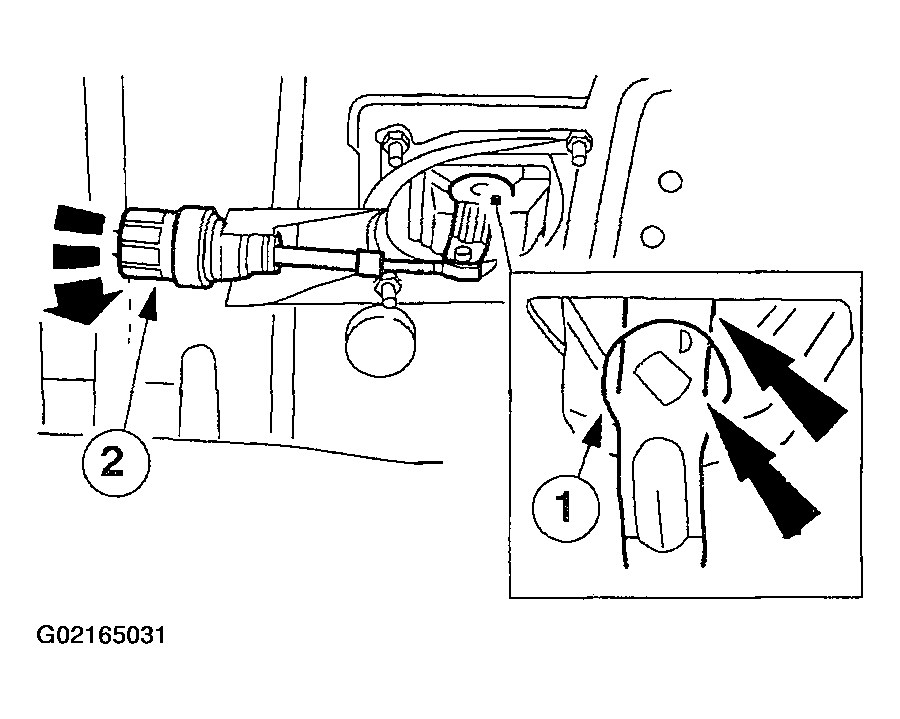

    Fig 2: Adjusting Selector Cable
    G02165031
  4. Lower the vehicle.
