Selector Lever: Assembly

Assemble the selector lever.
1. Put the spring in place.
2. Insert the plunger.
3. Slide on the sleeve and compress it.
4. Pretension the spring using a screwdriver.
- Pull the plunger back slightly.
Fig 1: Assembling Selector Lever
Install the sleeve.
1. Position the sleeve.
2. Drive in the retaining pin and align it centrally.
Fig 2: Installing Sleeve
Install the selector lever.
1. Position the selector lever into the transaxle.
  NOTE: Bring the locating tooth into engagement.
2. Drive in the pivot pin.
Fig 3: Installing Selector Lever

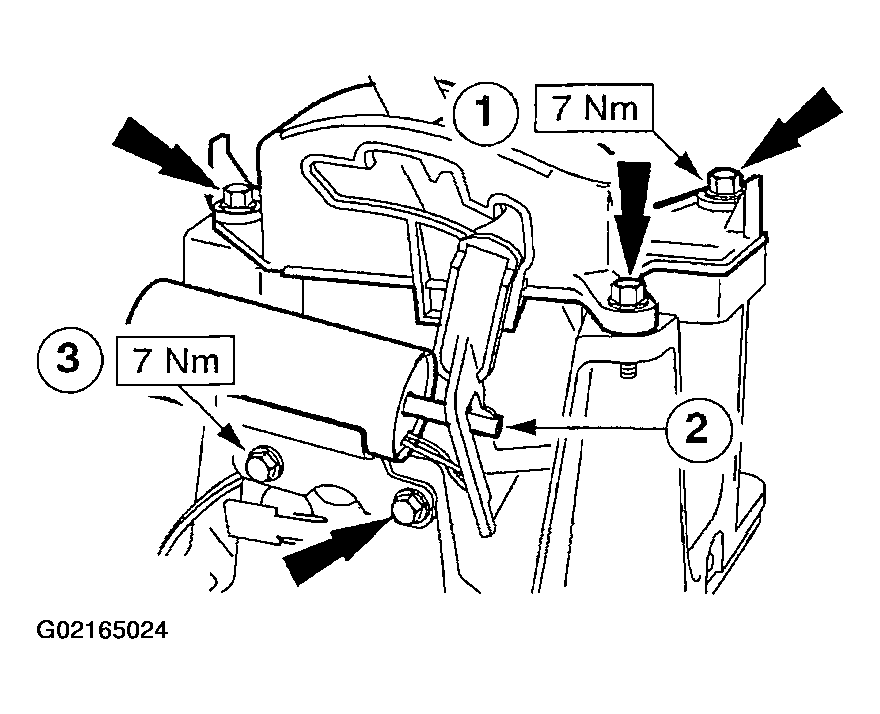

Position the upper part of the body and the solenoid switch.
1. Install the upper body bolts.
2. Hook the plunger of the solenoid switch onto the lever.
3. Install the solenoid switch bolts.
Fig 4: Installing Upper Body Bolts, Hooking Plunger Of Solenoid Switch Onto Lever, & Installing Solenoid Switch Bolts

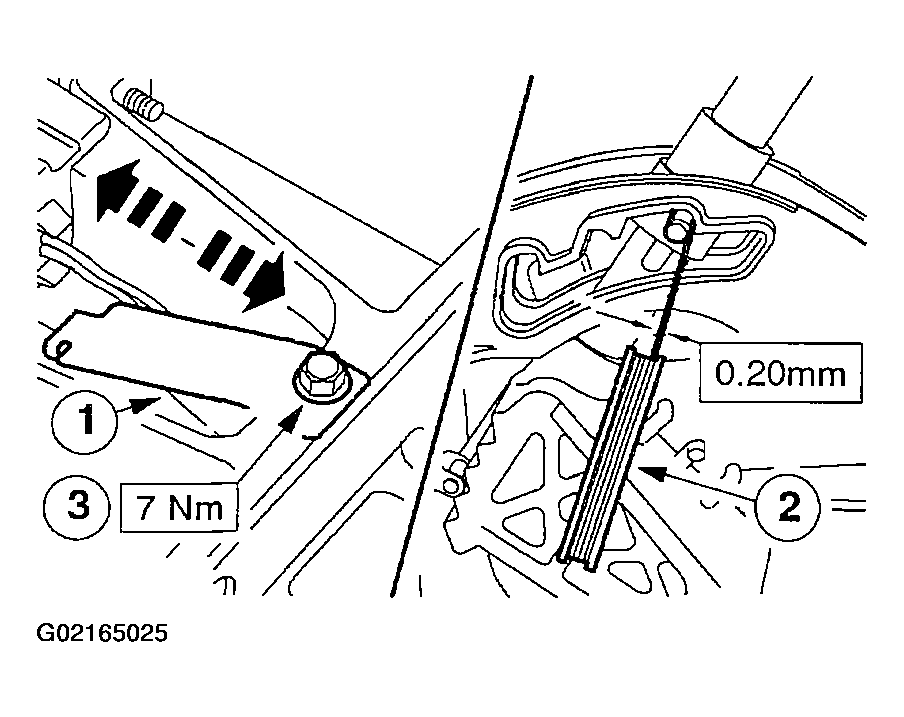

Position the detent spring and adjust the selector lever.
- Move the selector lever to position "D".
1. Install the detent spring loosely.
2. Position feeler gauge.
3. Tighten the detent spring.
- Check the gap again after moving the selector lever several times.
Fig 5: Installing Detent Spring Loosely, Positioning Feeler Gauge & Tightening Detent Spring

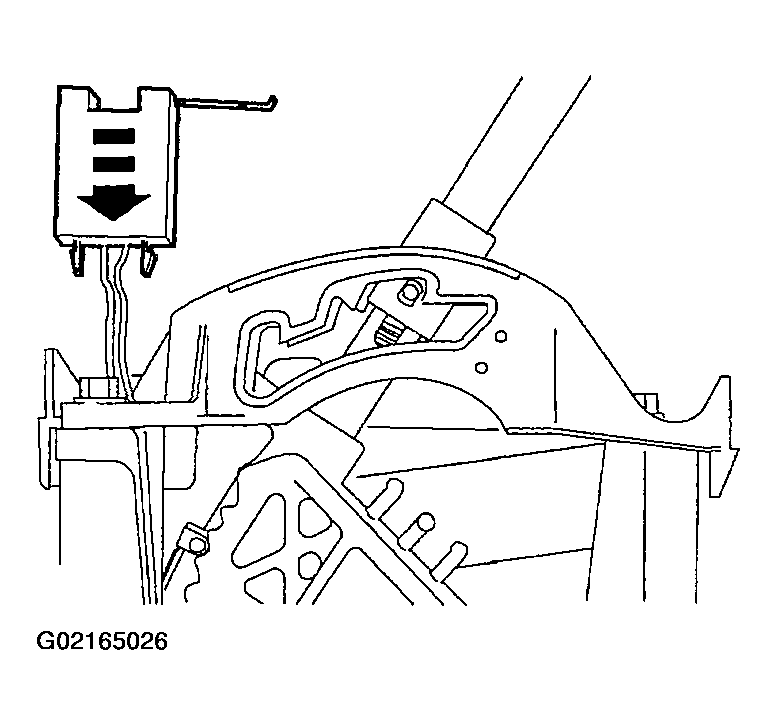

Install the park position switch.

Fig 6: Installing Park Position Switch
Install the cover.
1. Insert the lamp.
2. Position cover.
Fig 7: Inserting Lamp & Positioning Cover

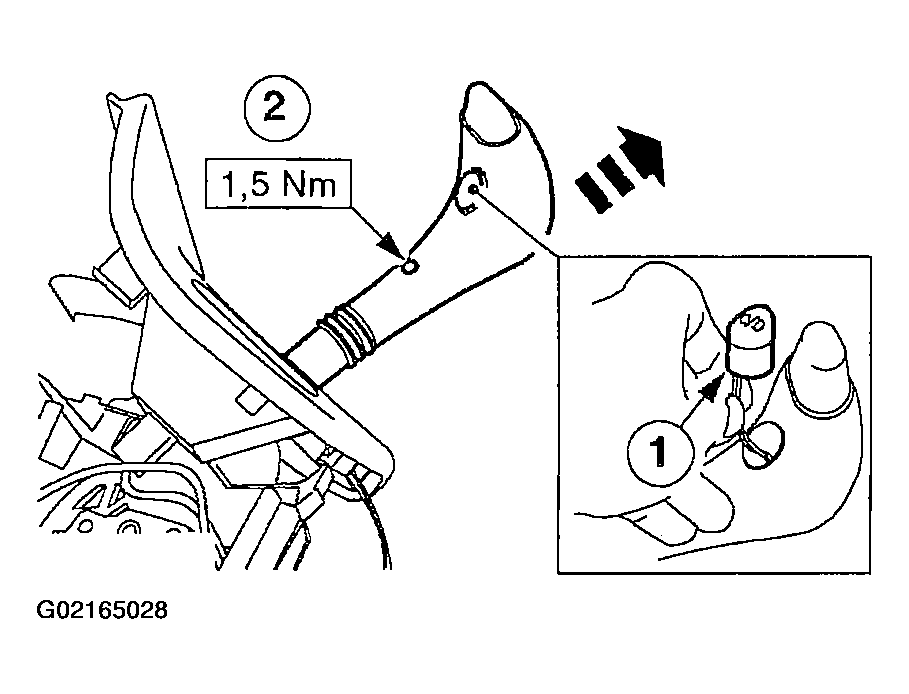

Install the selector lever knob.
1. Using cable installed during disassembly, guide the cable in and insert the O/D switch.
  - Push the selector lever knob on the selector lever.
  CAUTION: Do not damage the O/D cable when pushing it on.
  - Carefully route the cable.
2. Install the screw.
Connect the electrical connector.
1. Violet/White wire
2. Black/White wire
3. Yellow/Orange wire
4. Yellow/Orange wire
5. Orange/Black wire
6. Black wire
7. Black/Green wire
8. Black/Green wire
- Insert the cable retainer.
- Install the connector.
