Pinpoint Test D: The Transaxle Control Switch Is Not Operating Properly

Fig 1: Pinpoint Test D: The Transaxle Control Switch Is Not Operating Properly (Steps 1-2)
G02164977

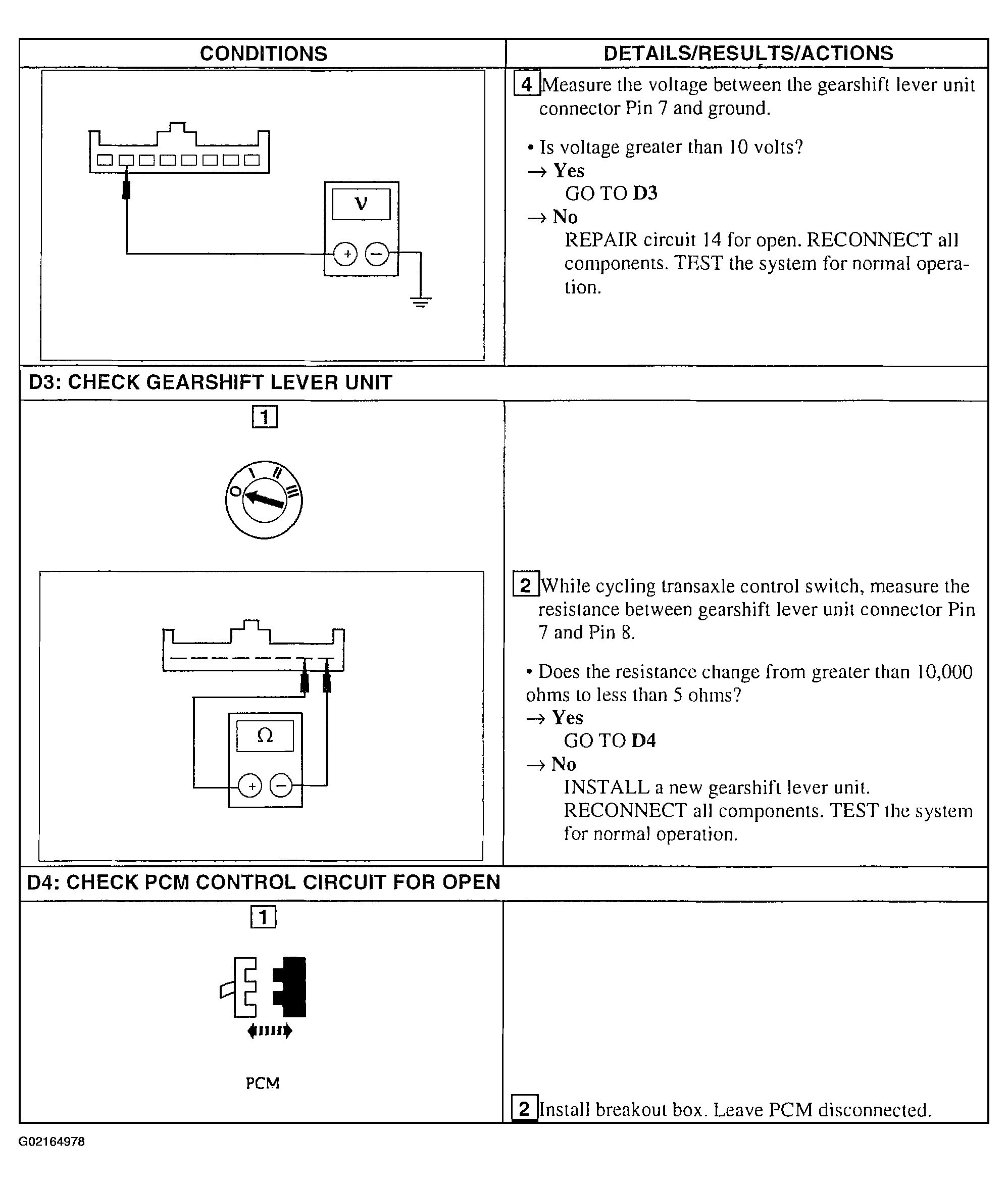

Fig 2: Pinpoint Test D: The Transaxle Control Switch Is Not Operating Properly (Steps 2 Cont.-4)
G02164978

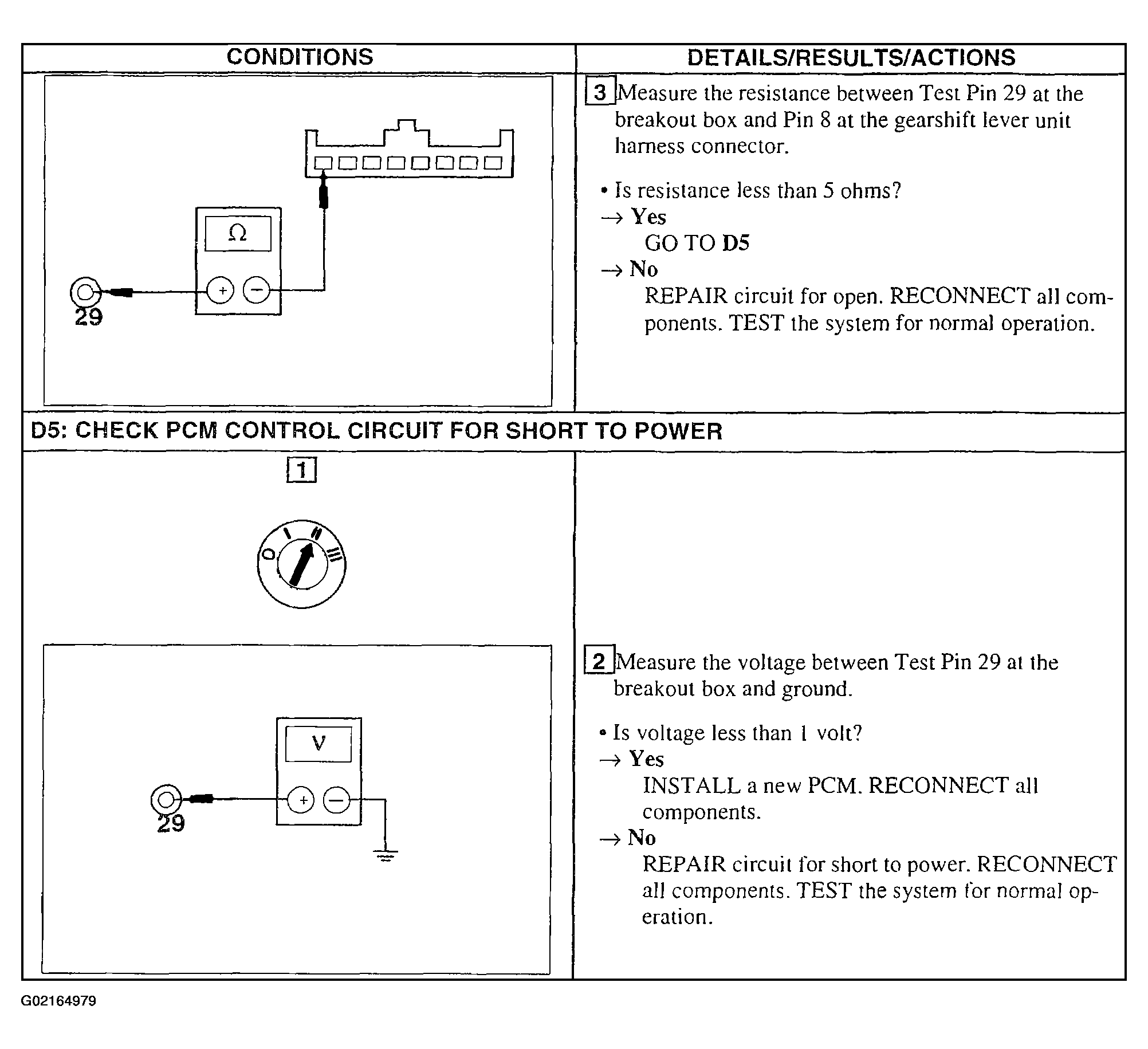

Fig 3: Pinpoint Test D: The Transaxle Control Switch Is Not Operating Properly (Steps 4 Cont.-5)
G02164979
