Vehicle Speed Sensor (VSS): Installation

  1. Install the driven gear.
    • Coat the driven gear bore with Motorcraft MERCON® Multi-purpose automatic transmission fluid or equivalent meeting MERCON® specification.

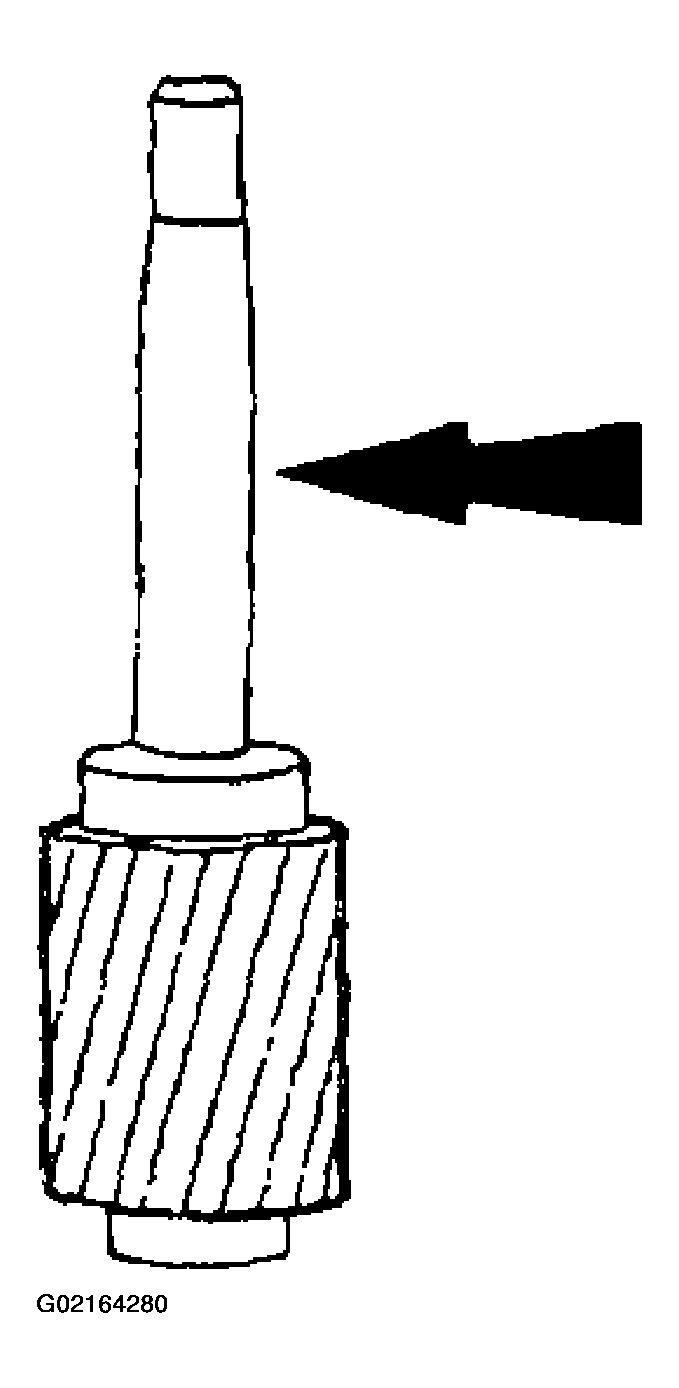

    Fig 1: Coating Driven Gear Bore With Motorcraft MERCON® Multi-Purpose Automatic Transmission Fluid
    G02164280
  2. To install, reverse the removal procedure.

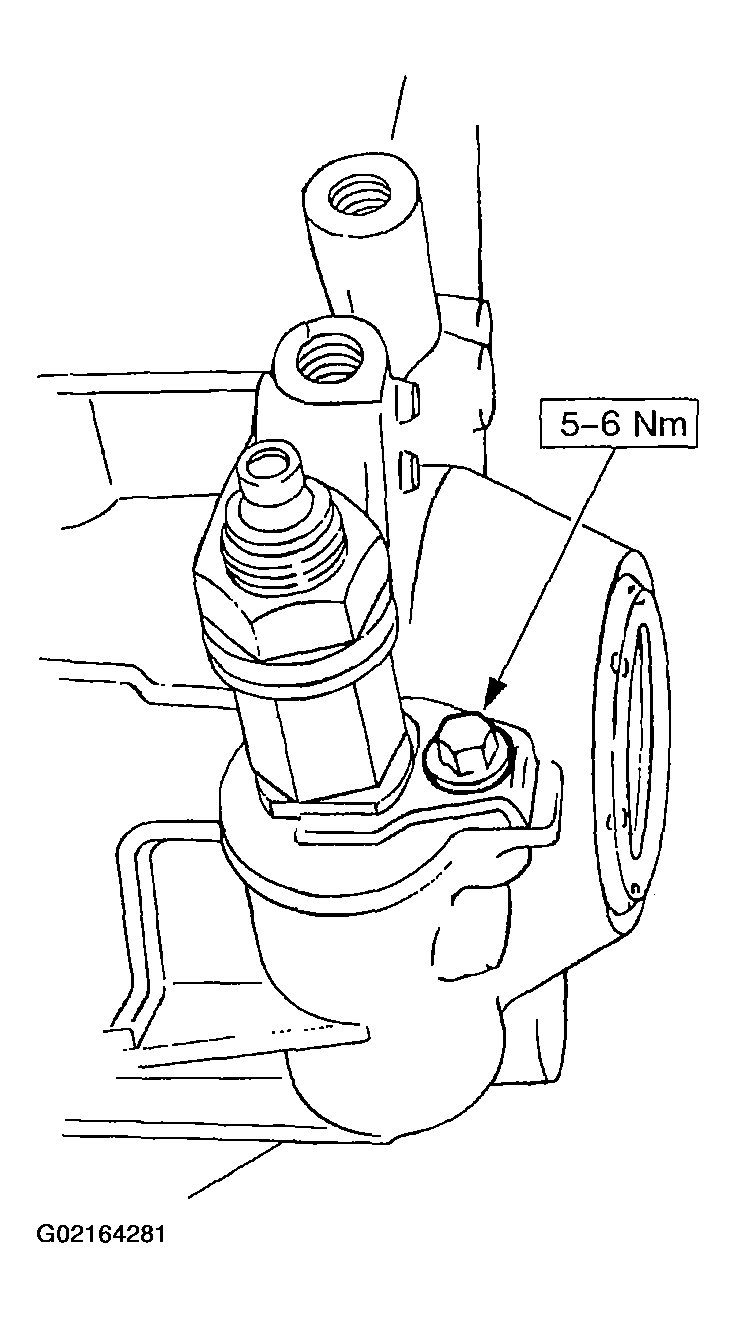

    Fig 2: Installing Driven Gear
    G02164281
