Transmission Range (TR) Sensor: Installation

    NOTE: Make sure the transaxle is in the NEUTRAL position.

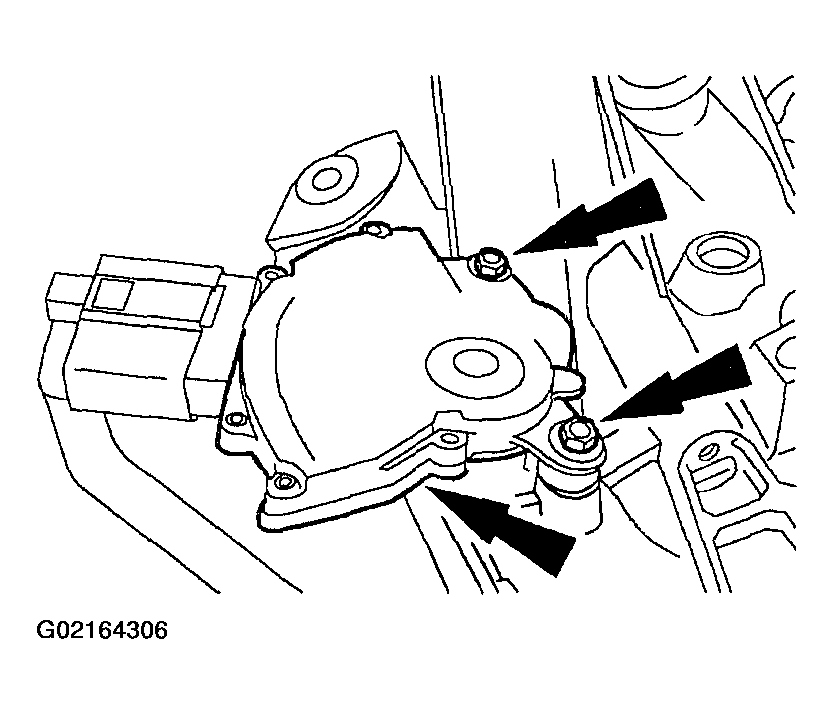

    Fig 1: Positioning Transmission Range (TR) Sensor
    G02164306
  1. Position the transmission range (TR) sensor and loosely install the bolts.
    2. NOTE: As necessary, move the manual control lever to N position for TR sensor adjustment.

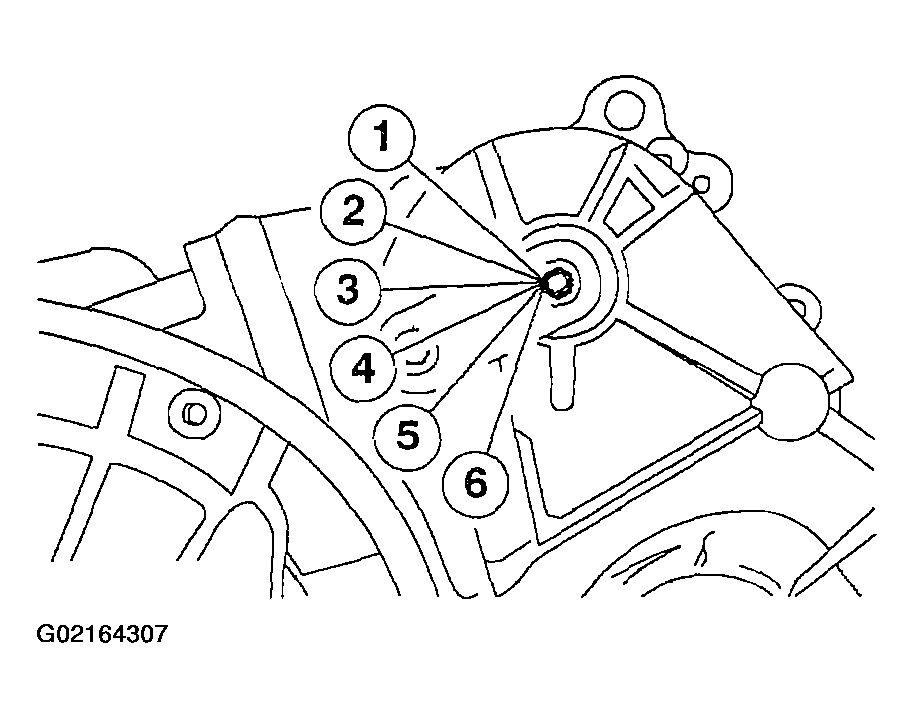

    Fig 2: Rotating Manual Valve Detent Lever Assembly
    G02164307
  2. Rotate the manual valve detent lever assembly to the NEUTRAL position.
    1. Low 1
    2. Low 2
    3. Drive
    4. Neutral
    5. Reverse
    6. Park
  3. Install the TR sensor.
    • Using the special tool, align the TR sensor.
    • Tighten the bolts and remove the special tool.
    • Connect the electrical connector.

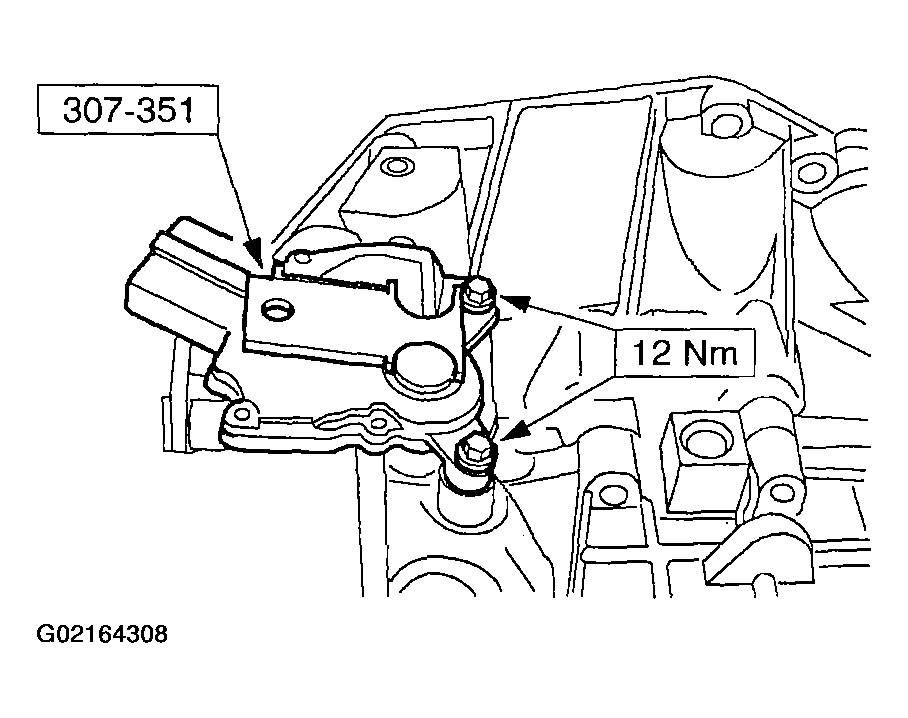

    Fig 3: Installing TR Sensor
    G02164308
  4. Install the battery tray.
    5. NOTE: When the battery has been disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 Km (10 miles) or more to relearn the strategy.
  5. Connect the battery ground cable.
  6. Check the correct operation with the parking brake control engaged. The engine should start only in PARK or NEUTRAL. Backup lamps should be active only in the REVERSE position.
