Torque Converter Leak Check: Check

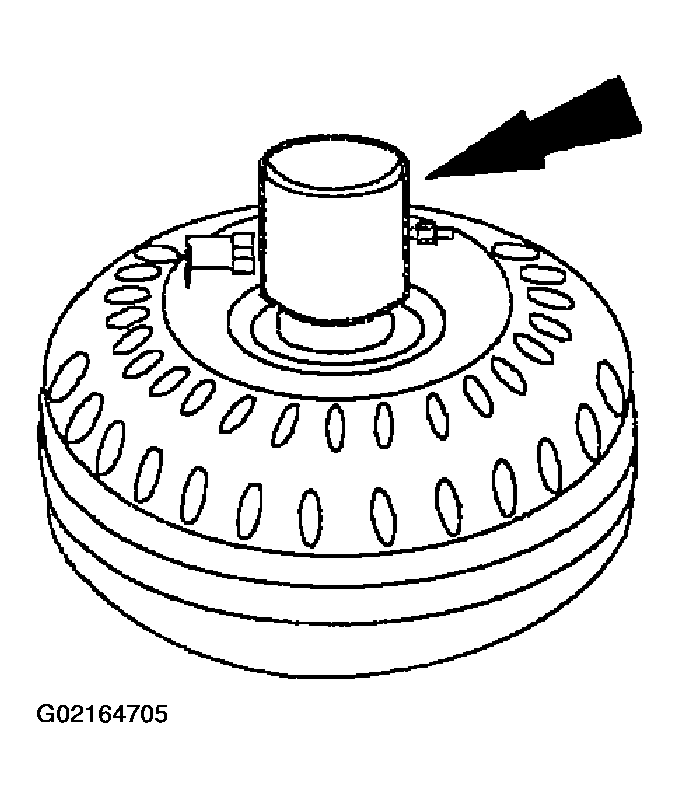

- Clean the outside surface of the torque converter.
- Install the Torque Converter Leak Check Tool and Gasket (014-R1075) into converter hub.
- Install torque converter with installed Torque Converter Leak Check Tool and Gasket (014-R1075) into press.
- Secure press. Apply enough force from press to seal tool into torque converter.
- Apply air pressure to valve on Torque Converter Leak Check Tool and Gasket (014-R1075).
- Release pressure and then slowly release press. Remove air hose.
- Rotate torque converter and Torque Converter Leak Check Tool and Gasket then reinstall into press with tool up.
- Secure press. Apply enough force from press to seal Torque Converter Leak Check Tool and Gasket into torque converter.
- Apply air pressure to valve on Torque Converter Leak Check Tool and Gasket (014-R1075).
- With air pressure applied to valve, inspect for leaks at converter hub, seams and studs. A soap bubble solution may be applied around those areas to aid in diagnosis. If leaks are present, install a new converter.
- Remove air hose. Release pressure and then slowly release press. Remove the converter. Remove the Torque Converter Leak Check Tool and Gasket (014-R1075).
WARNING:
Always Follow Proper Safety Procedures While Using Press. Failure To Follow These Instructions Will Result In Personal Injury.
NOTE:
Use clean dry shop air.
WARNING:
Always follow proper safety procedures while using press. Failure to follow these instructions will result in personal injury.
NOTE:
Use clean dry shop air.
