Torque Converter Insert Check

  1. Install the oil pump drive shaft into the torque converter.

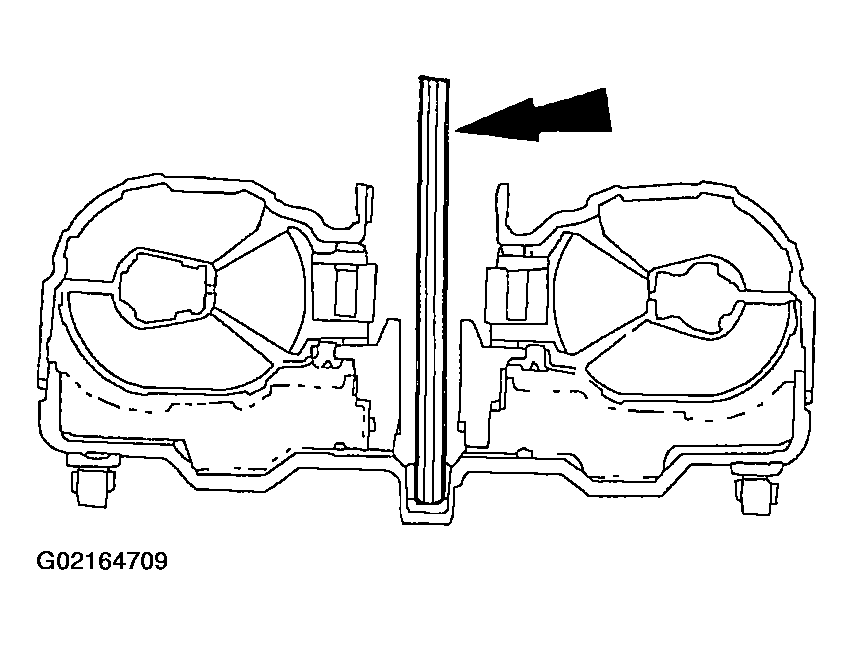

    Fig 1: Installing Oil Pump Drive Shaft Into Torque Converter
    G02164709
  2. Install a torque wrench with a 5/16 Allen head socket attached on the oil pump drive shaft.
    Fig 2: Installing Torque Wrench On Oil Pump Drive Shaft
    G02164710
  3. Verify that the insert can hold torque.

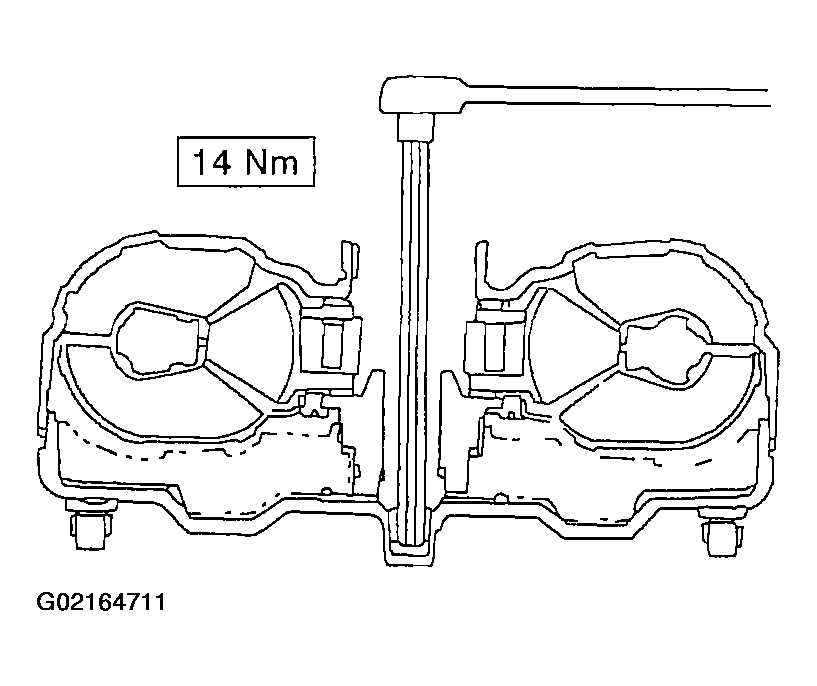

    Fig 3: Verifying That Insert Can Hold Torque
    G02164711
  4. If the insert cannot hold the specified torque, install a new torque converter.
