Torque Converter Housing: Assembly

  1. Position a new differential lube tube in the torque converter housing.

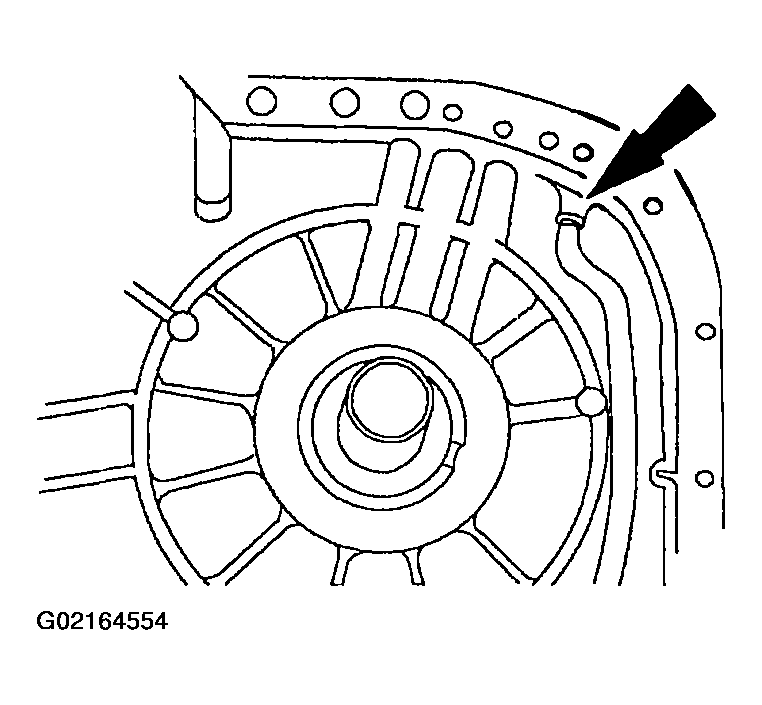

    Fig 1: Positioning New Differential Lube Tube In Torque Converter Housing
    G02164554
  2. Using the special tool, install the differential lube tube.
    Fig 2: Installing Differential Lube Tube
    G02164555
  3. Install the differential lube tube bolt.

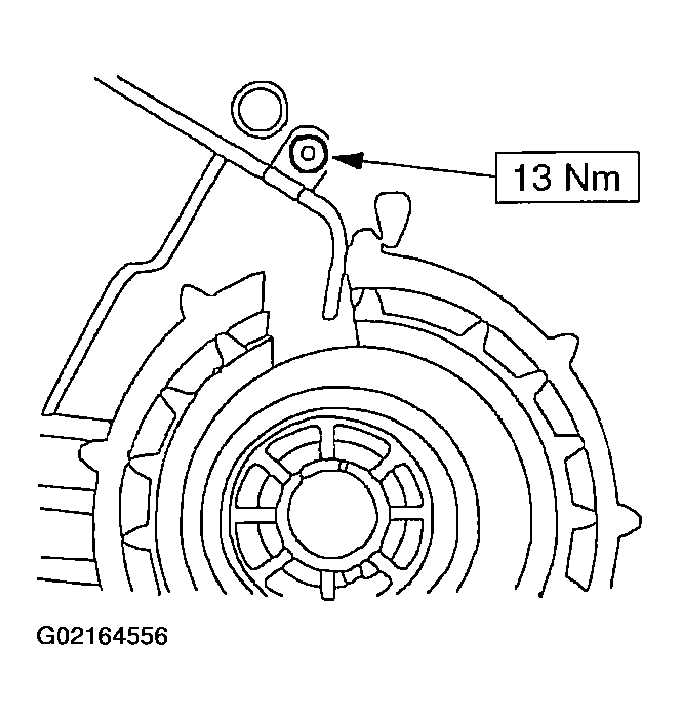

    Fig 3: Installing Differential Lube Tube Bolt
    G02164556
    4. NOTE: The final drive ring gear is installed with the lug end uppermost.

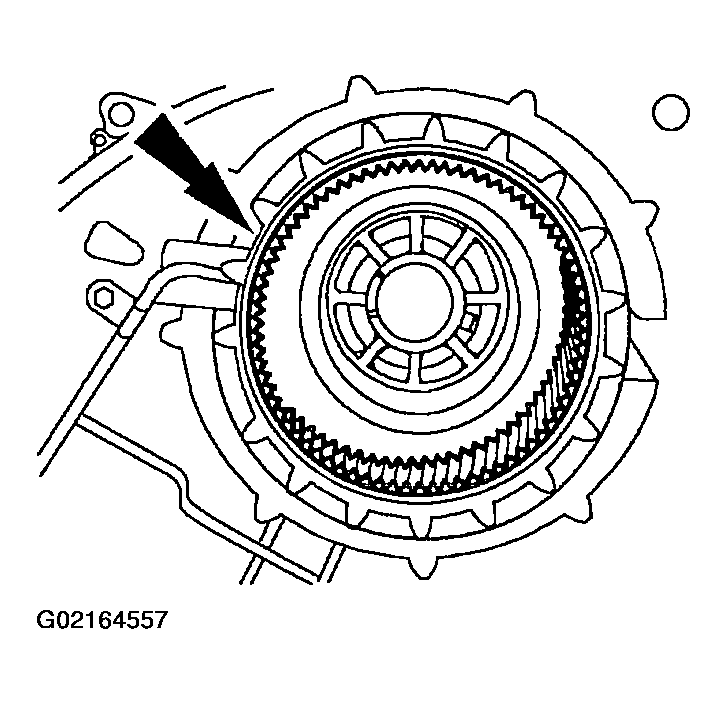

    Fig 4: Installing Final Drive Ring Gear
    G02164557
  4. Install the final drive ring gear.
  5. Install the final drive ring gear retaining ring.

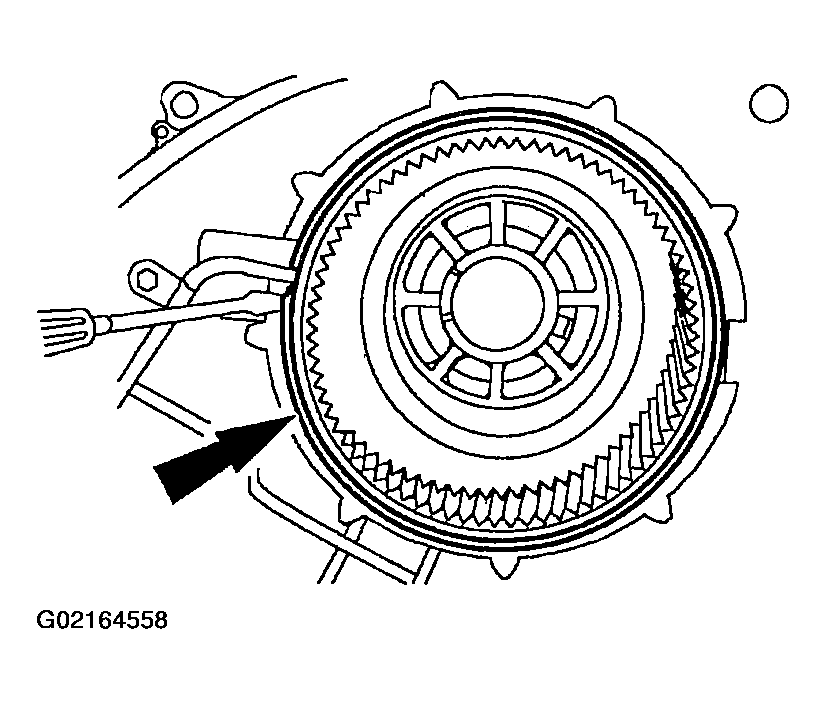

    Fig 5: Installing Final Drive Ring Gear Retaining Ring
    G02164558
  6. Install the cooler tube fitting.

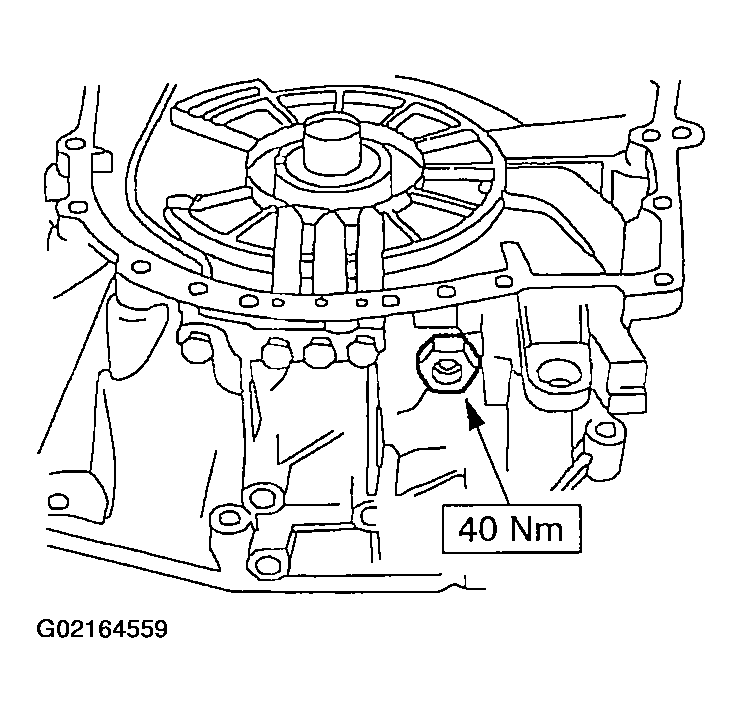

    Fig 6: Installing Cooler Tube Fitting
    G02164559
