Main Control Valve Body: Assembly

    WARNING: Air pressure must not exceed 1.38 bar (20 psi). Wear safety glasses when using compressed air. Failure to follow these instructions may result in personal injury.
    CAUTION: If the valve sticks in its bore and cannot be freed, install a new main control valve body.
    NOTE: Clean the main control valve body and accumulator body assembly of the main control in cleaning solvent. Blow dry with moisture-free regulated compressed air. The solenoid valve body should not be cleaned in cleaning solvent. It may be blown clean with compressed air or wiped clean with a lint-free cloth.
  1. Install a new intermediate and overdrive accumulator plug seal and coat with petroleum jelly. See Figure.
  2. CAUTION: Do not install the intermediate and overdrive accumulator valve plug and seal too far into the bore and damage the seal. Only push the intermediate and overdrive accumulator valve plug until it is flush with the accumulator body assembly.
  3. Install the intermediate and overdrive accumulator valve plug. See Figure.
  4. Install the intermediate and overdrive accumulator valve plug retaining plate. See Figure.
  5. Install the special tool.
    Fig 1: Installing Special Tool
    G02164491
  6. Using the special tool, install the valve body separator plate gaskets and valve body separator plate.
    1. Install a new valve body separator plate gasket.
    2. Install the valve body separator plate.
    3. Install a new valve body separator plate gasket.
    Fig 2: Installing Valve Body Separator Plate Gaskets & Valve Body Separator Plate
    G02164492
  7. Using the special tool, install the main control valve body.
    Fig 3: Installing Main Control Valve Body
    G02164493
  8. Using the special tool, install the accumulator body separator plate and gaskets.
    1. Install a new accumulator body separator plate gasket.
    2. Install the accumulator body separator plate.
    3. Install a new accumulator body separator plate gasket.
    Fig 4: Installing Accumulator Body Separator Plate & Gaskets
    G02164494
  9. Using the special tool, install the accumulator body assembly.
    Fig 5: Installing Accumulator Body Assembly
    G02164495
  10. Install the accumulator body transfer plate bolts.
    • Start with the middle bolt.

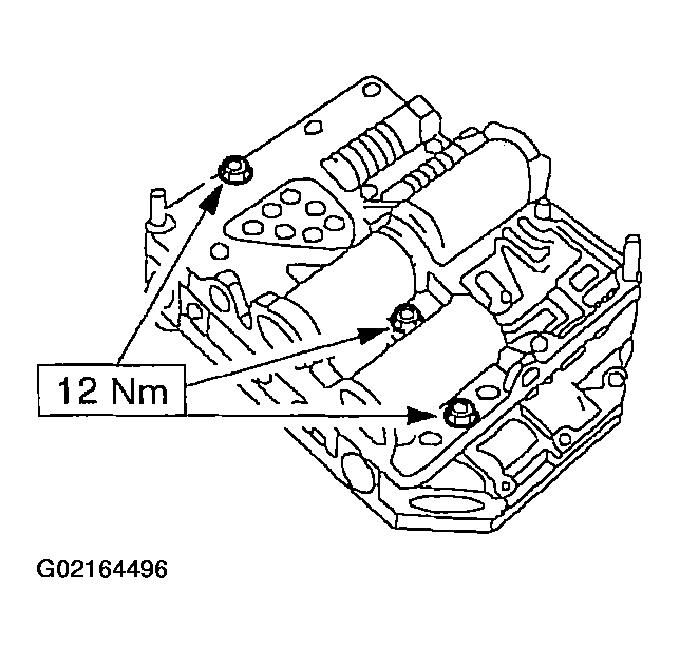

    Fig 6: Installing Accumulator Body Transfer Plate Bolts
    G02164496
  11. Install the main control valve body to transfer plate bolts.
    1. Install the manual valve detent spring.
    2. Install the control valve body to transfer plate bolts.
    • Start with the middle bolt.
    Fig 7: Installing Main Control Valve Body To Transfer Plate Bolts
    G02164497
  12. Install a new pressure tap plate gasket.

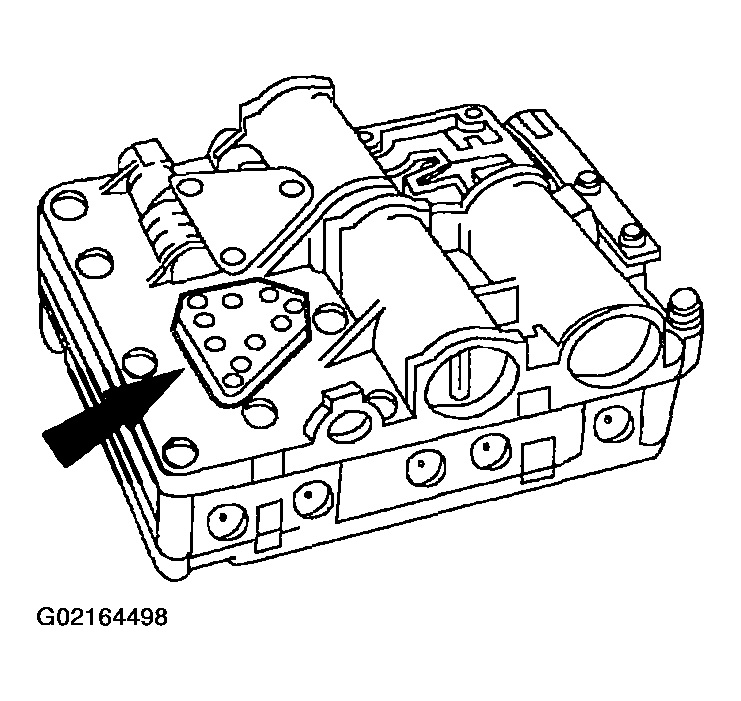

    Fig 8: Installing New Pressure Tap Plate Gasket
    G02164498
  13. Install the pressure tap plate and bolts.
    Fig 9: Installing Pressure Tap Plate & Bolts
    G02164499
  14. NOTE: Match the solenoid valve body gasket to passages.
    Fig 10: Installing Solenoid Valve Body
    G02164500
  15. Install the solenoid valve body.
    1. Install the solenoid valve body gasket.
    2. Install the solenoid valve body.
    3. Install the two solenoid valve body bolts.
    • Remove the special tool.
  16. Install the manual valve.
    Fig 11: Installing Manual Valve
    G02164501
