Low One-Way Clutch Assembly: Disassembly

  1. Inspect the low one-way clutch components:
    1. Low one-way clutch inner race
    2. Roller assembly
    3. Low one-way clutch outer race
    4. Outer race groove
    5. Inner race groove

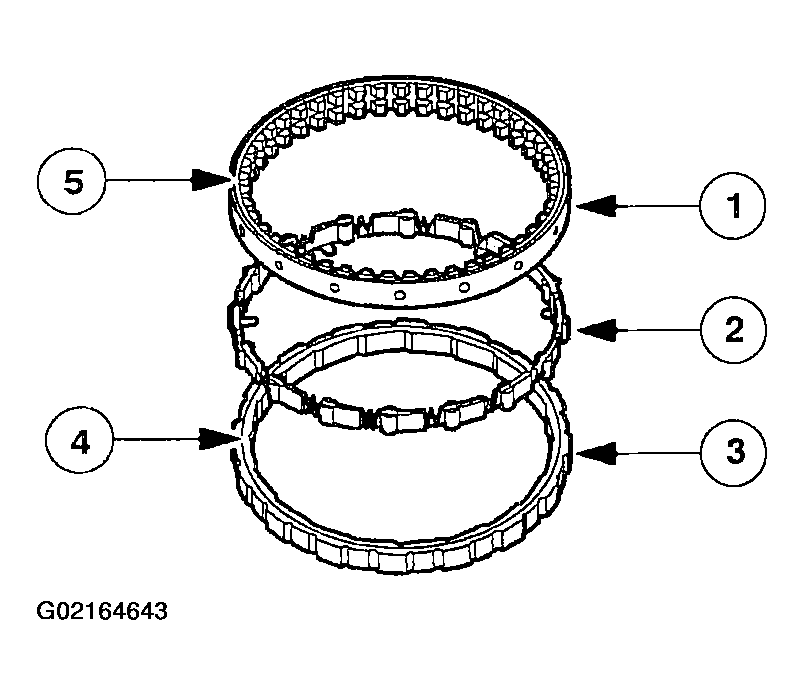

    Fig 1: Identifying Low One-Way Clutch Assembly
    G02164643
  2. Position the low one-way clutch so the inner and outer race grooves are facing upward.

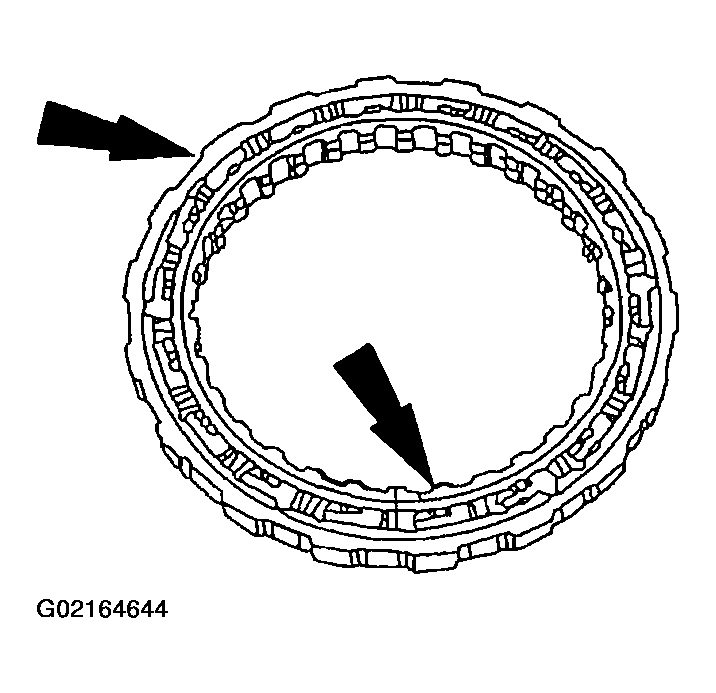

    Fig 2: Positioning Low One-Way Clutch So Inner & Outer Race Grooves Face Upward
    G02164644
  3. Remove the inner race.

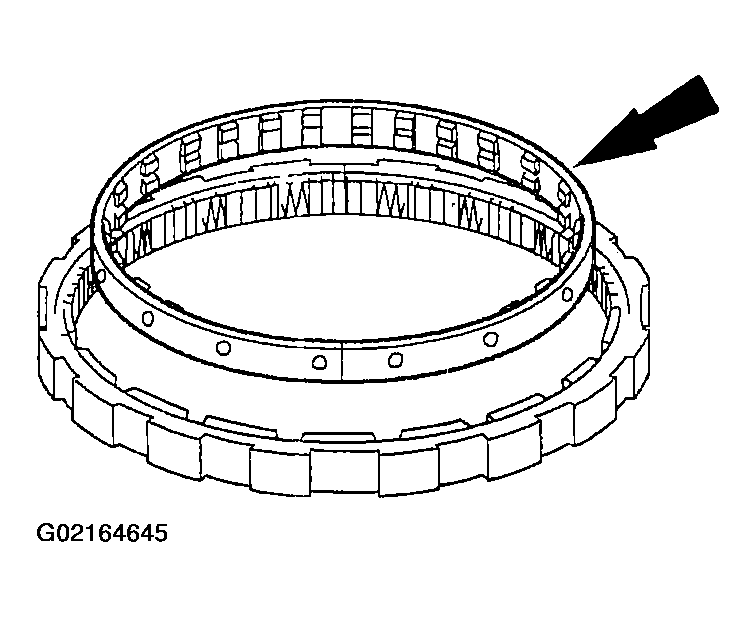

    Fig 3: Removing Inner Race
    G02164645
  4. Remove the roller assembly.
    Fig 4: Removing Roller Assembly
    G02164646
    5. WARNING: Air pressure must not exceed 1.38 bar (20 psi). Wear safety glasses when using compressed air. Failure to follow these instructions can result in personal injury.
  5. Clean all parts thoroughly in clean solvent and blow dry with moisture-free regulated compressed air.
  6. Inspect the low one-way clutch parts for damage and wear.
    • Outer race
    • Sprag assembly
    • Inner race
    • Lubrication holes
