Low One-Way Clutch Assembly: Assembly

    NOTE: Outer tabs of the roller assembly must face up.
  1. Position outer race with groove up, and install the roller assembly into the outer race. See Figure.
    2. NOTE: To aid in inner race installation, rotate the inner race clockwise during installation.

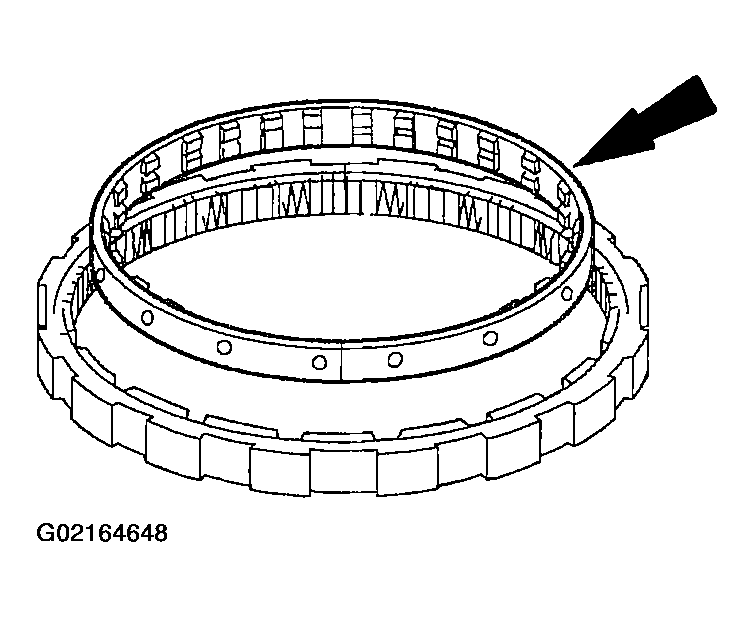

    Fig 1: Installing Inner Race With Grooves Facing Up
    G02164648
  2. Install the inner race with the grooves facing up.
  3. Check the operation of the one-way clutch as follows:
    1. Hold the outer race.
    2. Rotate the inner race clockwise; it should rotate with a slight drag without attempting to rotate the outer race.
    3. Rotate the inner race counterclockwise. The inner race should rotate the outer race.

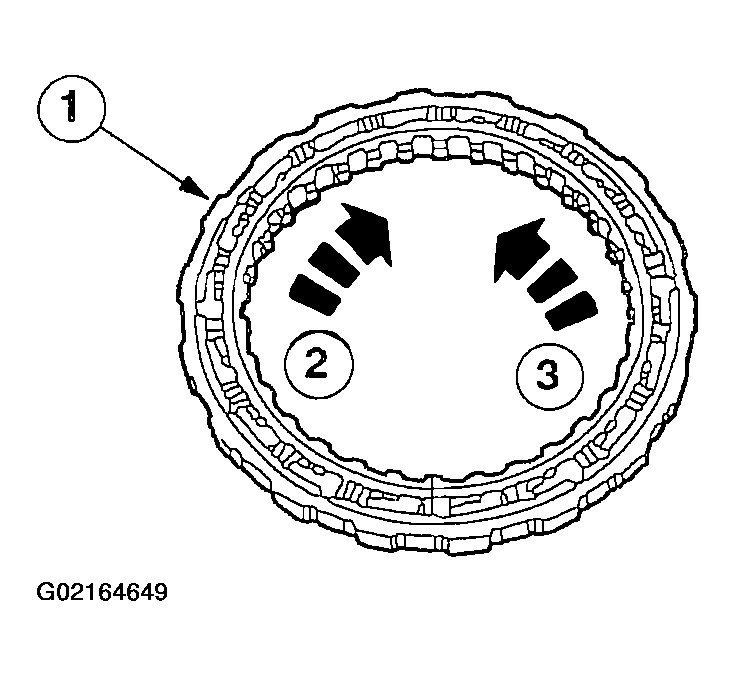

    Fig 2: Checking Operation Of One-Way Clutch
    G02164649
