Forward One-Way Clutch: Disassembly

Remove the coast clutch hub retaining ring.

Fig 1: Removing Coast Clutch Hub Retaining Ring
Remove the coast clutch hub.

Fig 2: Removing Coast Clutch Hub
Remove the forward one-way clutch outer race and sprag assembly with end caps.

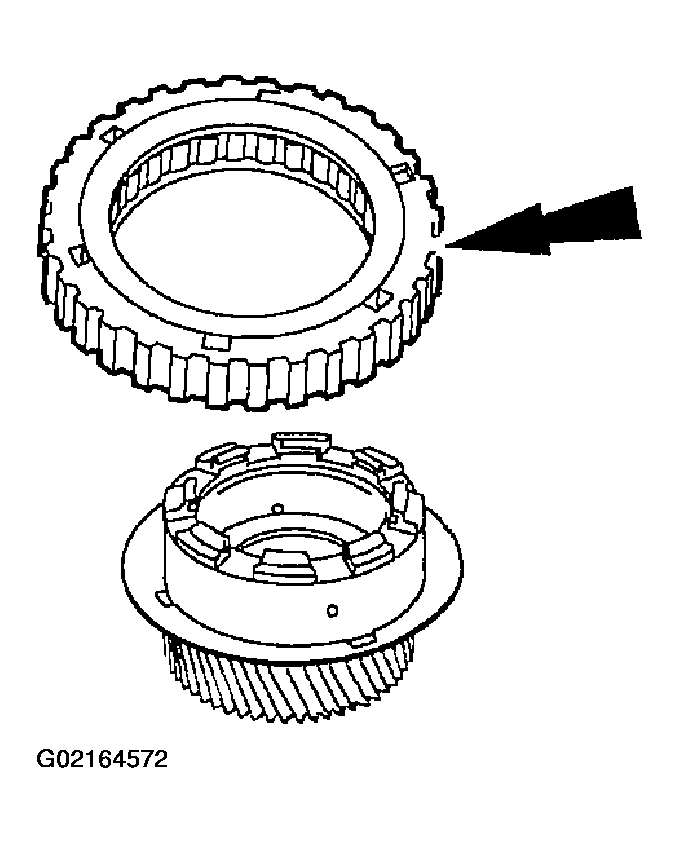

Fig 3: Removing Forward One-Way Clutch Outer Race & Sprag Assembly With End Caps

NOTE: Orientation of end caps to the sprag assembly. New design end caps are the same thickness and interchangeable (but not reversible).

NOTE: Not all transaxles contain this style sprag assembly.

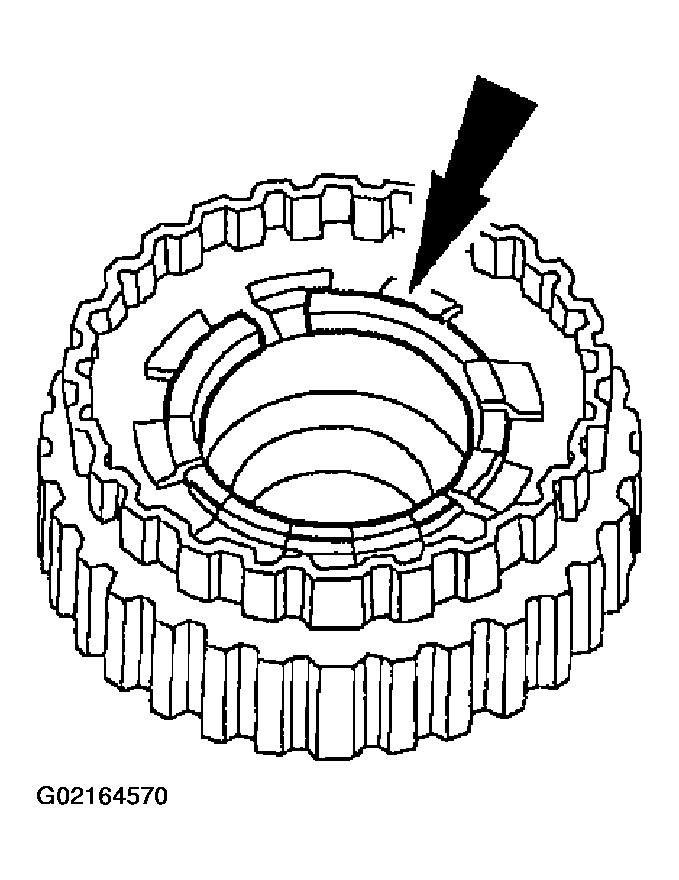

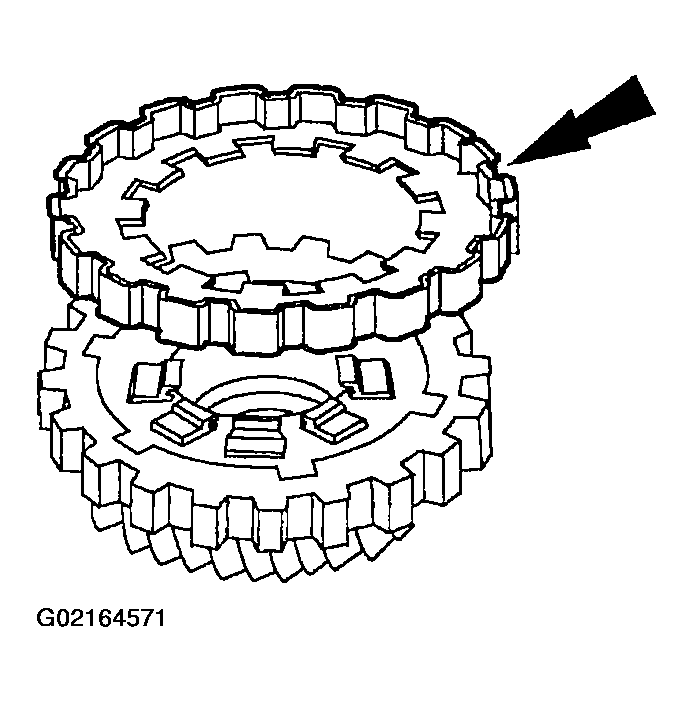

Fig 4: Removing Forward One-Way Clutch End Caps From Sprag Assembly

Remove the forward one-way clutch end caps from the sprag assembly.
Remove the forward one-way clutch retainer.

Fig 5: Removing Forward One-Way Clutch Retainer
Remove the retaining ring down over the gear.

Fig 6: Removing Retaining Ring Down Over Gear

WARNING: Air pressure must not exceed 1.38 bar (20 psi). Wear safety glasses when using compressed air. Failure to follow these instructions may result in personal injury.

Clean all parts thoroughly in clean solvent and blow dry with moisture-free compressed air.
Inspect the forward one-way clutch parts for damage and wear.
- Outer race
- Sprag assembly and end caps
- Inner race and low-intermediate sun gear assembly
- Lube holes
- Coast clutch hub
