Forward One-Way Clutch: Assembly

  1. Install the retaining ring.
    Fig 1: Installing Retaining Ring
    G02164576
    2. NOTE: The tabs on the retainer face downward.
    Fig 2: Installing Forward One-Way Clutch Retainer
    G02164577
  2. Install the forward one-way clutch retainer.
    3. NOTE: Orientation of end caps to the sprag assembly. New design end caps are the same thickness and interchangeable (but not reversible).
    Fig 3: Installing Forward One-Way Clutch End Caps Onto Sprag Assembly
    G02164578
  3. Install the forward one-way clutch end caps onto the sprag assembly.
  4. Install the sprag assembly and end caps in the outer race.

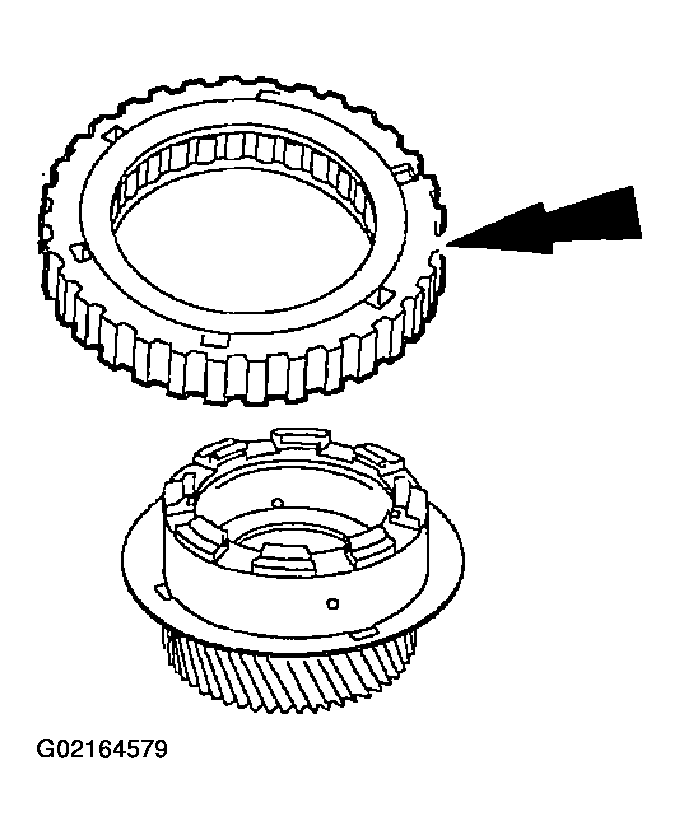

    Fig 4: Installing Sprag Assembly & End Caps In Outer Race
    G02164579
    5. NOTE: Lube grooves face upward (away from the sun gear).

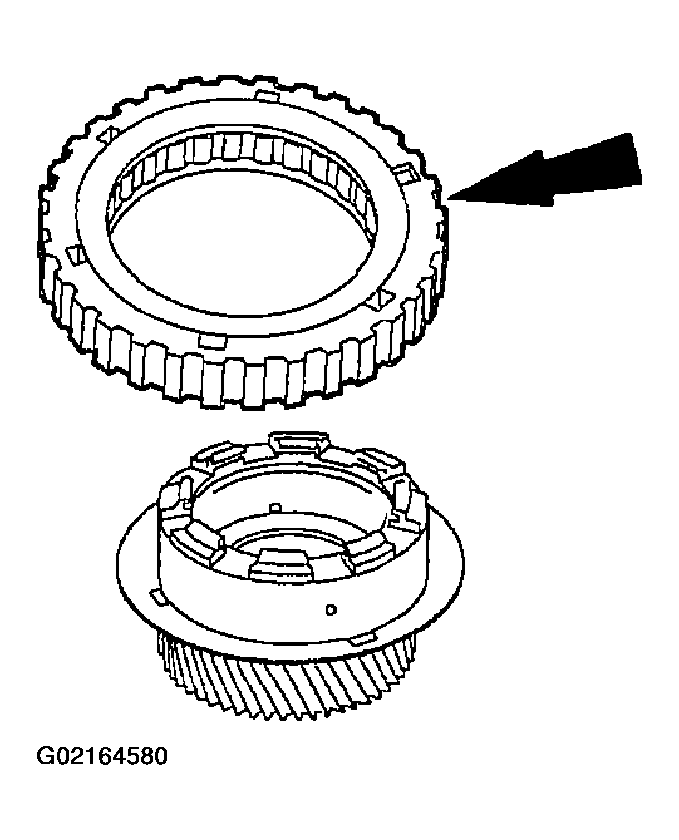

    Fig 5: Installing Lube Grooves To Face Upward Away From Sun Gear
    G02164580
  5. Rotate the outer race and sprag assembly (with end caps) over and install it on the forward one-way clutch inner race.
  6. Install the coast clutch hub.

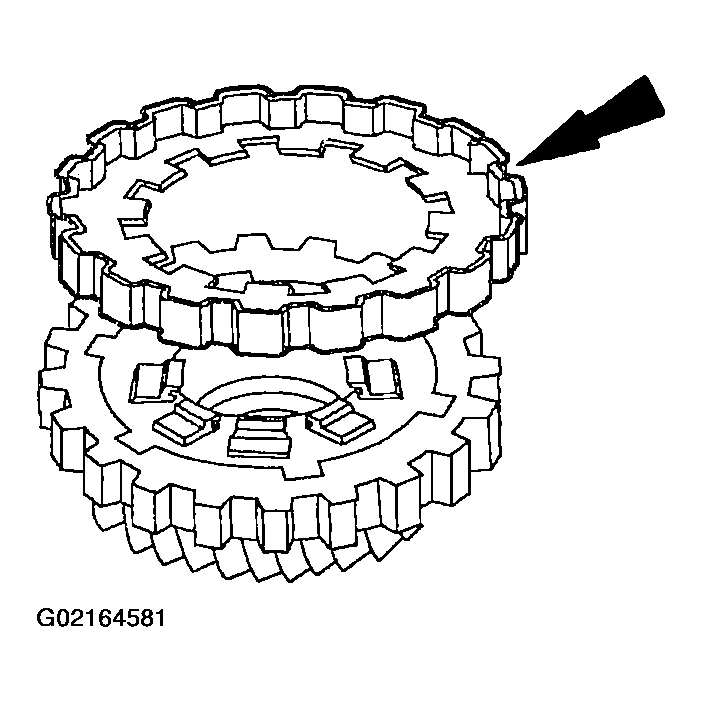

    Fig 6: Installing Coast Clutch Hub
    G02164581
    7. NOTE: The ends of the retaining ring should point toward the coast clutch hub.
    NOTE: Make sure the retaining ring is fully seated upon installation.

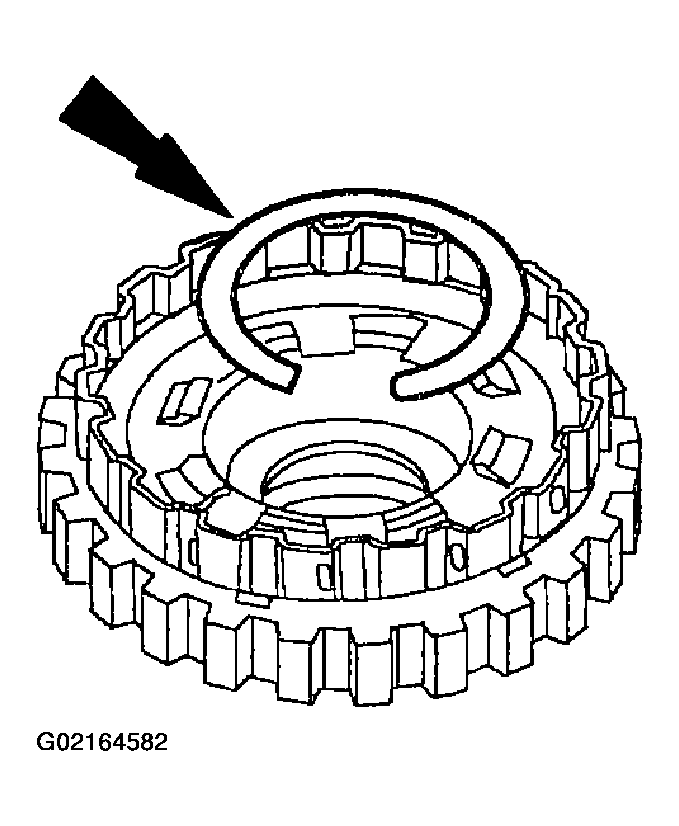

    Fig 7: Installing Coast Clutch Hub Retaining Ring
    G02164582
  7. Install the coast clutch hub retaining ring.
  8. Check the operation of the forward one-way clutch with the low-intermediate sun gear facing upward.
    • Hold the outer race firmly.
    • Rotate the low-intermediate sun gear clockwise.
    • The low-intermediate sun gear should rotate with a slight drag without attempting to rotate the outer race.
    • Rotate the low-intermediate sun gear counterclockwise; the low-intermediate sun gear should rotate the outer race.

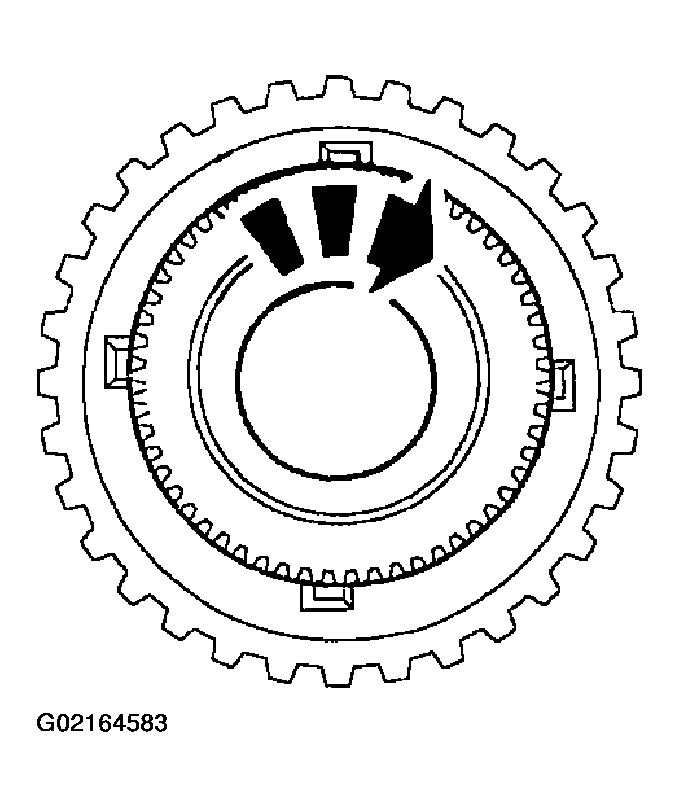

    Fig 8: Rotating Low-Intermediate Sun Gear Clockwise
    G02164583
