Component Locations
NOTE:

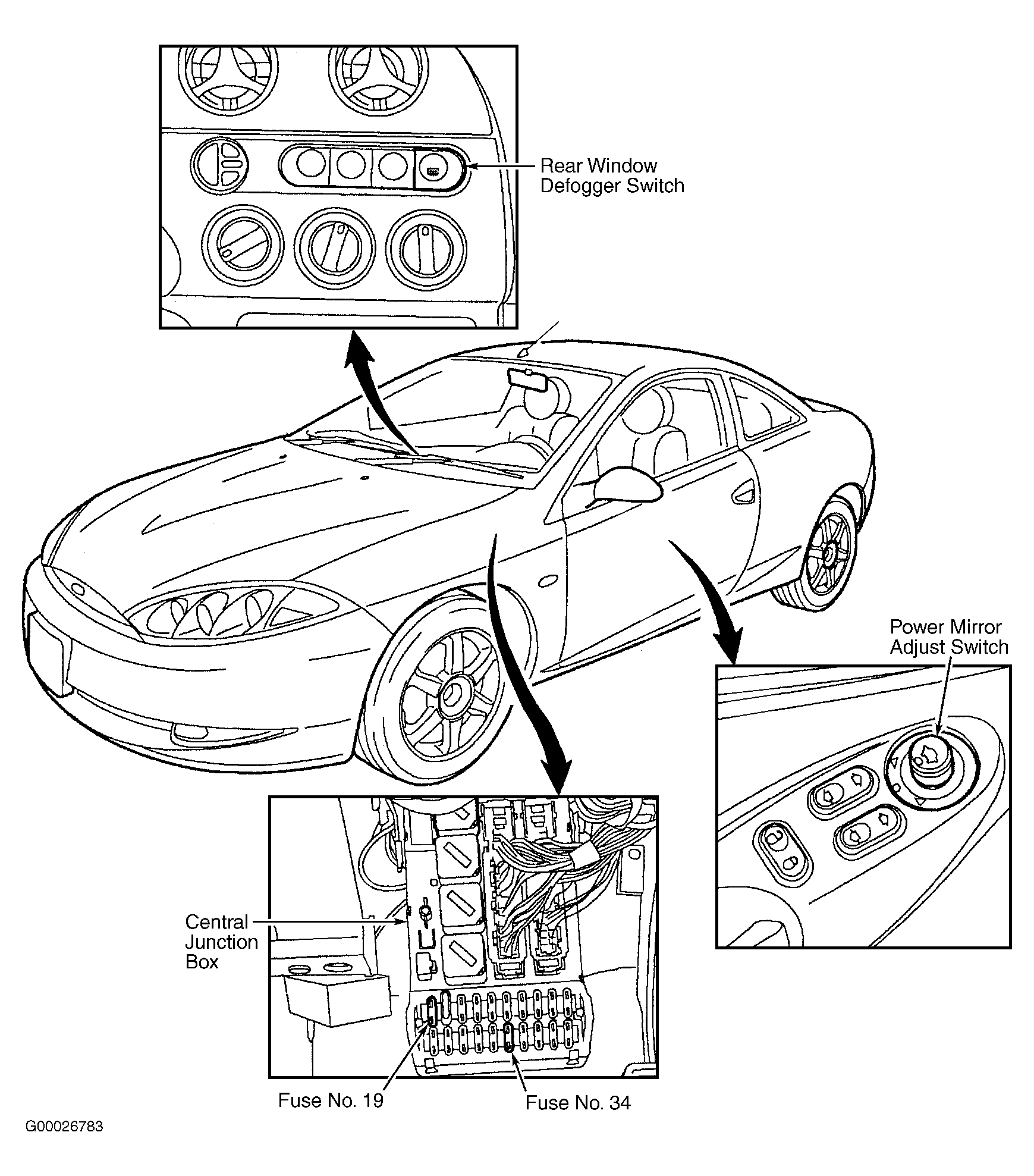

For additional component locations, refer to illustration. See Fig 1
.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Central Junction Box | Below Left Side Of Instrument Panel |
| Fuse No. 19 (7.5-Amp) | In Central Junction Box |
| Fuse No. 34 (7.5-Amp) | In Central Junction Box |
| In-Line Harness Connector | Bottom Of Passenger's Side "A" Pillar |
| Power Mirror Adjust Switch | On Door Trim Panel |
| Rear Window Defogger Switch | Center Of Instrument Panel |
| Splice S3 | Inside Driver's Door |
