Mercury
>>
2000
>>
Villager Base
>>
Repair and Diagnosis
>>
Electrical
>>
Fuses & Circuit Breakers
>>
Identification
>>
Central Junction Box
Central Junction Box
NOTE:
Central junction box may also be referred to as passenger compartment fuse panel. Central junction box is located under driver's side of instrument panel.

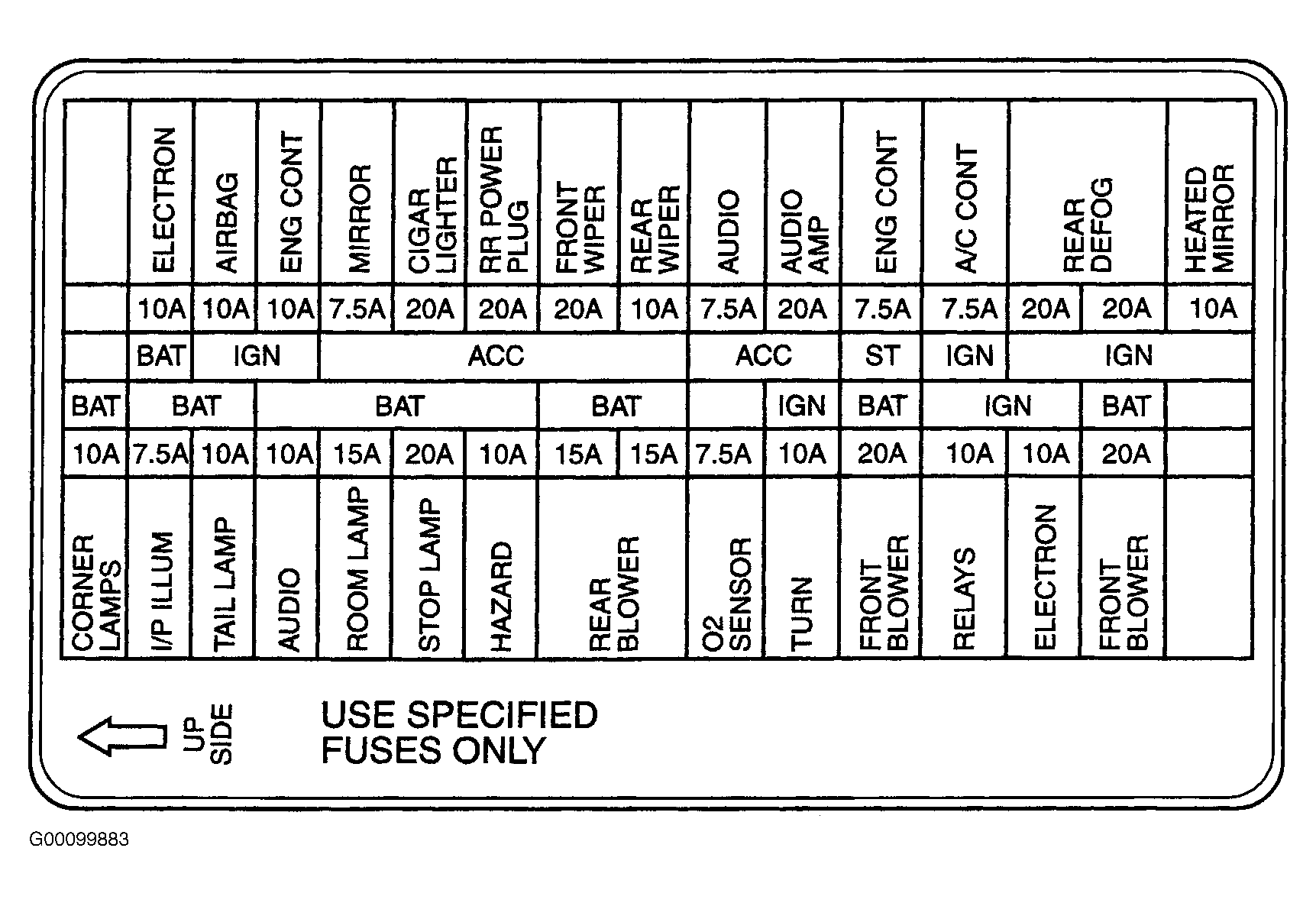

Fig 1: Identifying Central Junction Box Fuses
Courtesy of FORD MOTOR CO.

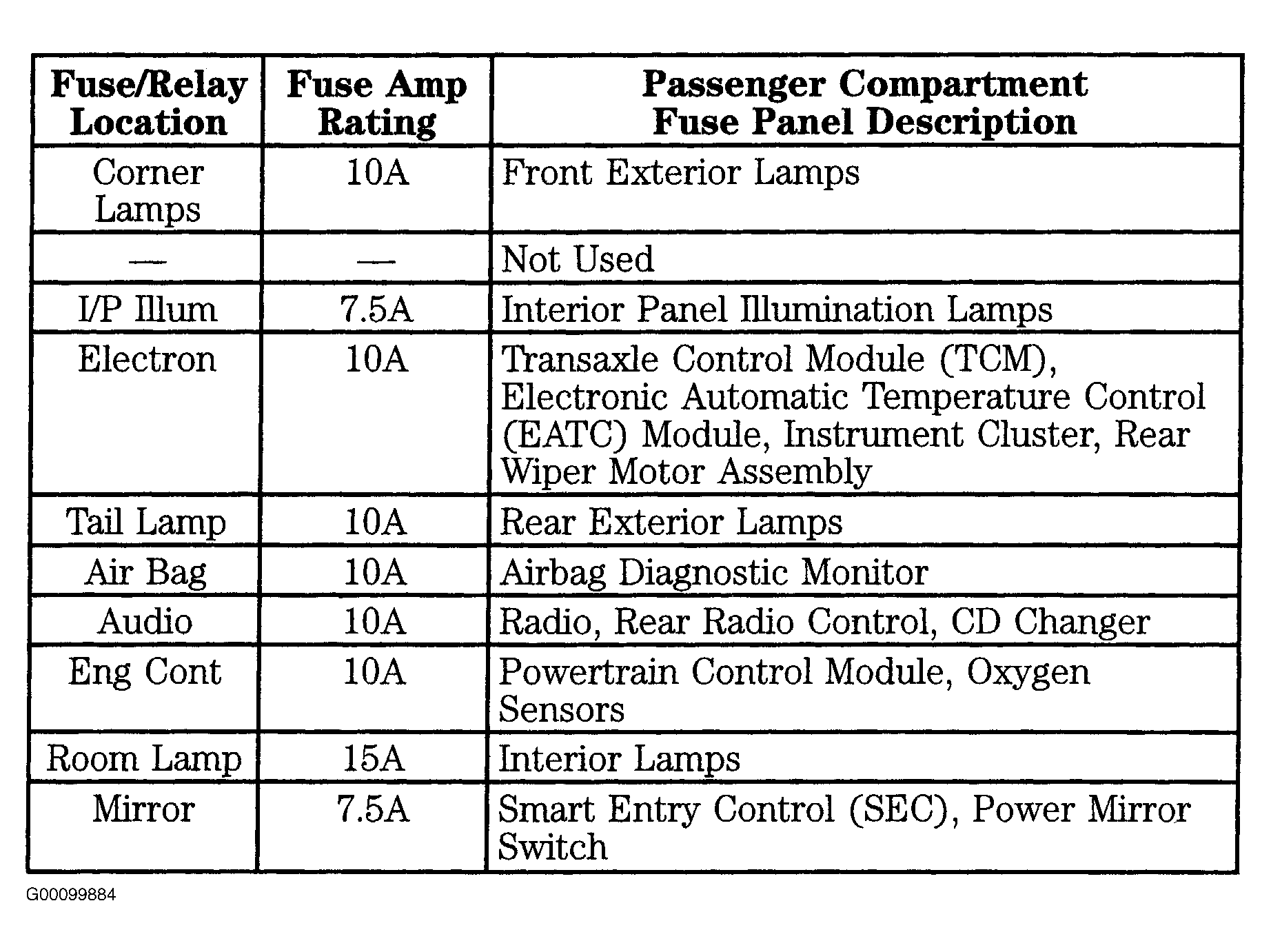

Fig 2: Central Junction Box Legend (1 Of 3)
Courtesy of FORD MOTOR CO.

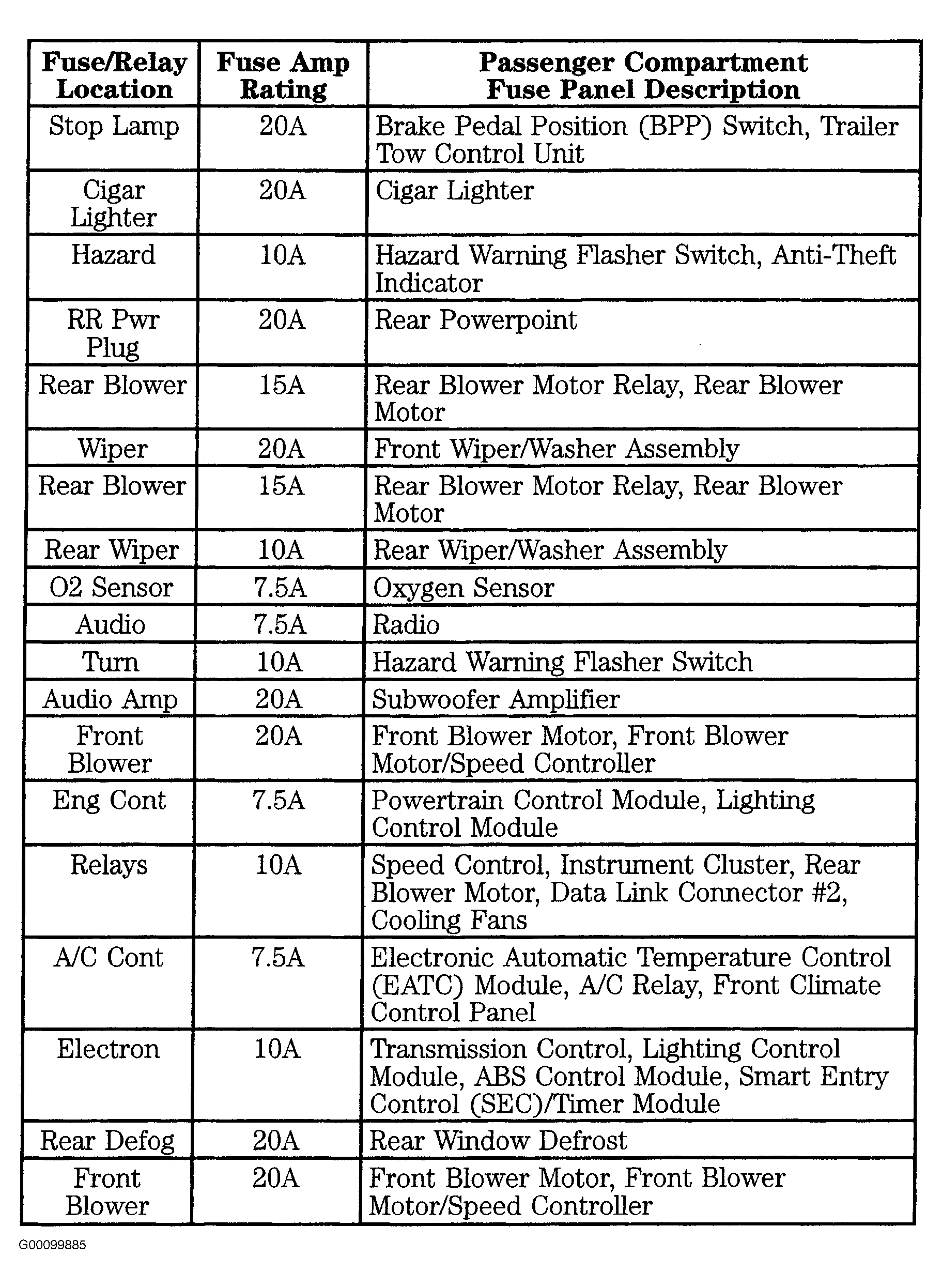

Fig 3: Central Junction Box Legend (2 Of 3)
Courtesy of FORD MOTOR CO.

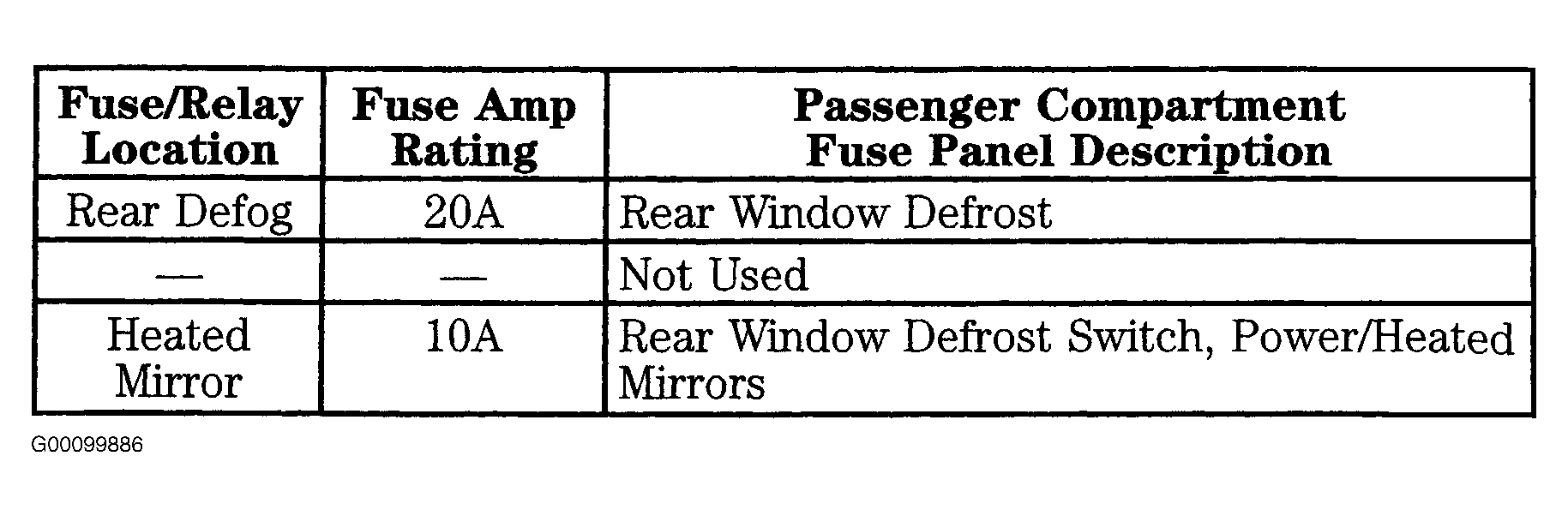

Fig 4: Central Junction Box Legend (3 Of 3)
Courtesy of FORD MOTOR CO.
