Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Battery Junction Box On left front of engine compartment.
Central Junction Box Behind left side of dash.

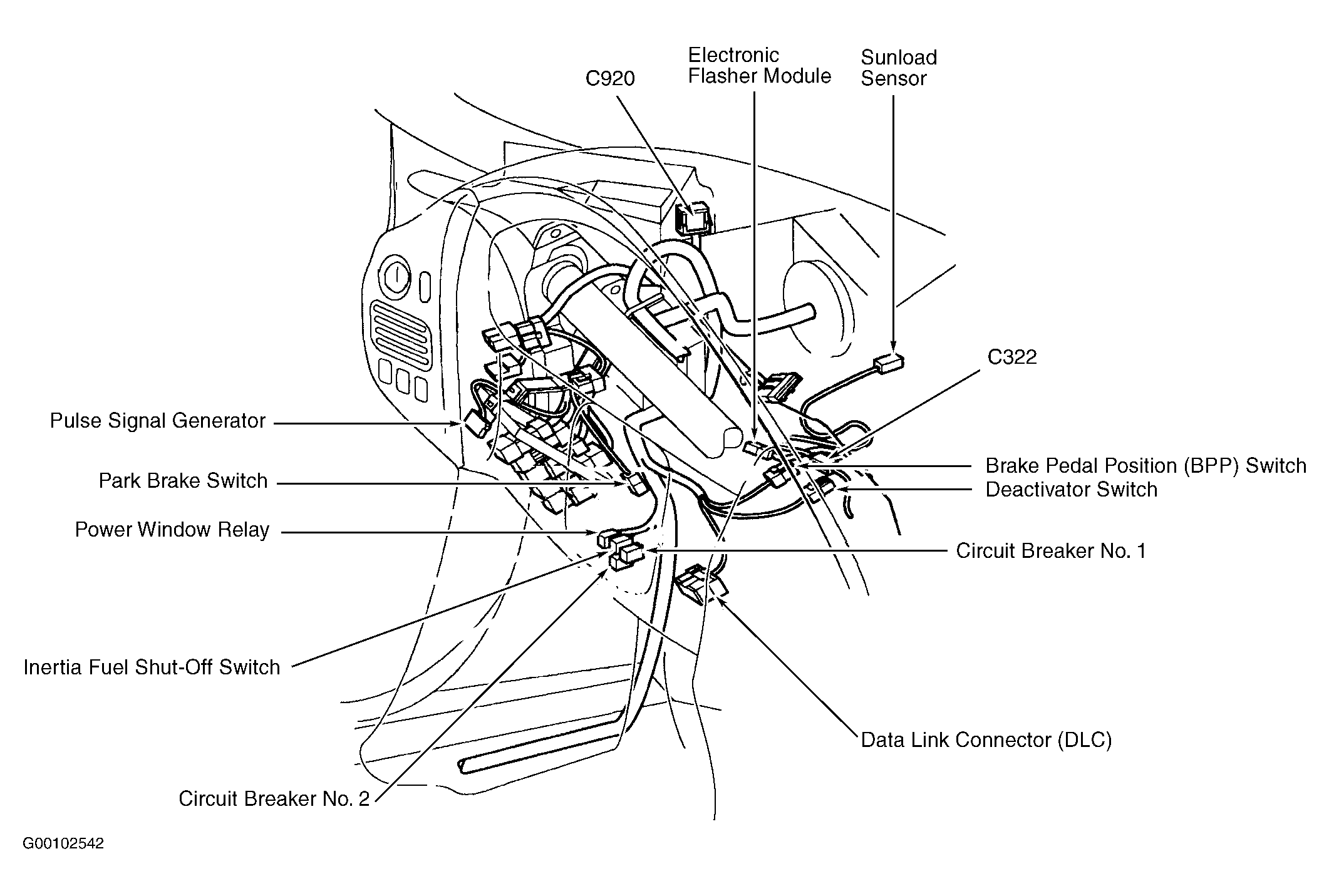

Circuit Breaker No. 1 Behind left side of dash. See Figure.
Circuit Breaker No. 2 Behind left side of dash. See Figure.
Engine Compartment Relay Box On left front of engine compartment.
