Engine Support Insulators: Installation
WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

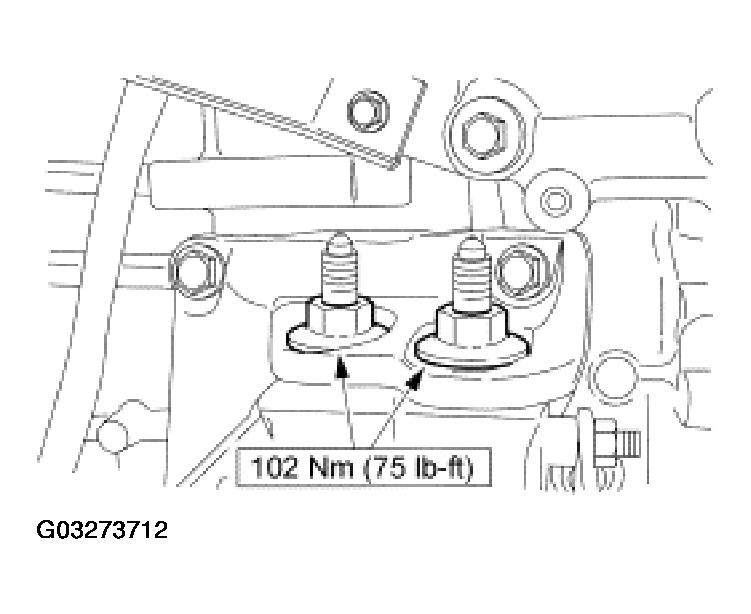

- Install the engine support insulators and the nuts.
- Lower the vehicle.
- Lower the engine and remove the 3-Bar Engine Support Kit.
- Remove the Lifting Eyes.

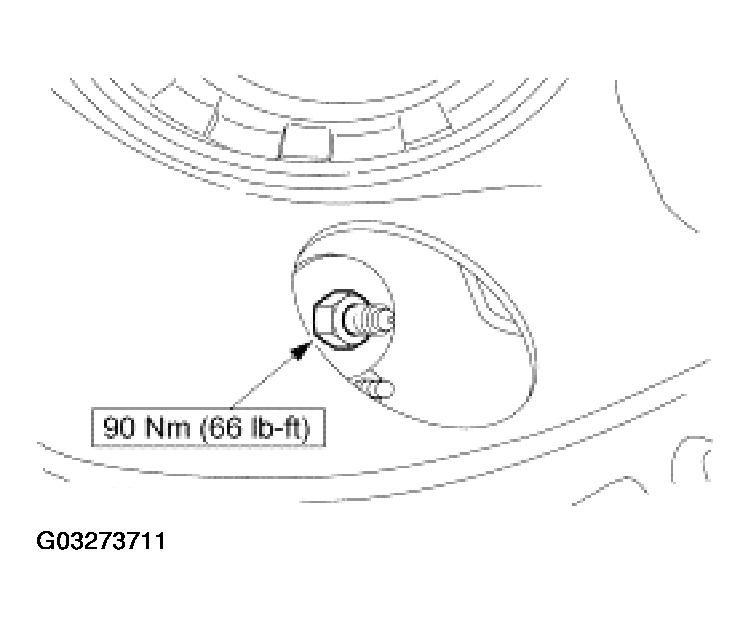

- Install the LH and RH engine support insulator nuts.
- Install the clutch fan. For additional information, refer to ENGINE COOLING .
- Raise the vehicle.

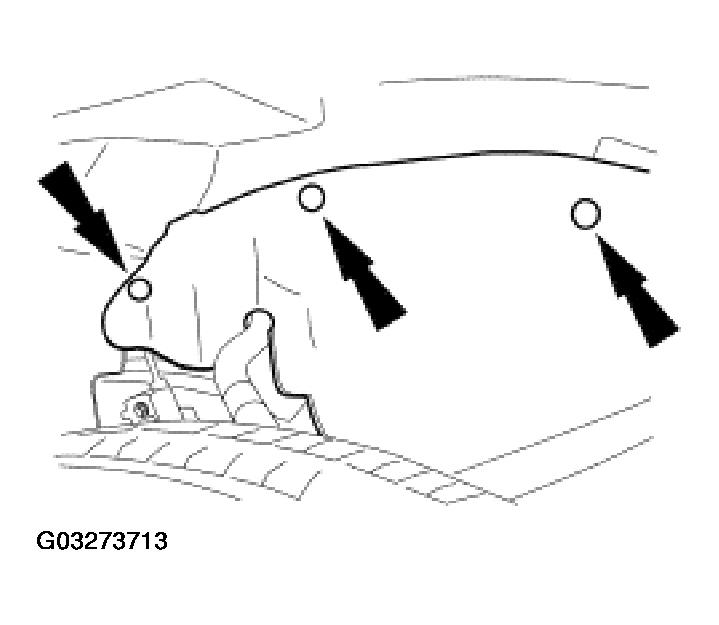

- Position the right inner fender splash shield and install the push pins.
- Install the front springs. For additional information, refer to FRONT - 2WD for 4x2 vehicles, or FRONT - 4WD TORSION BAR for 4x4 vehicles.
NOTE:
Right hand shown, left hand similar.
NOTE:
Right hand shown, left hand similar.
