Cylinder Head Distortion

WARNING: This page is about a different car, the 2002 Mercury Cougar. However, it is still accessible from the selected car via links, so may be relevant.

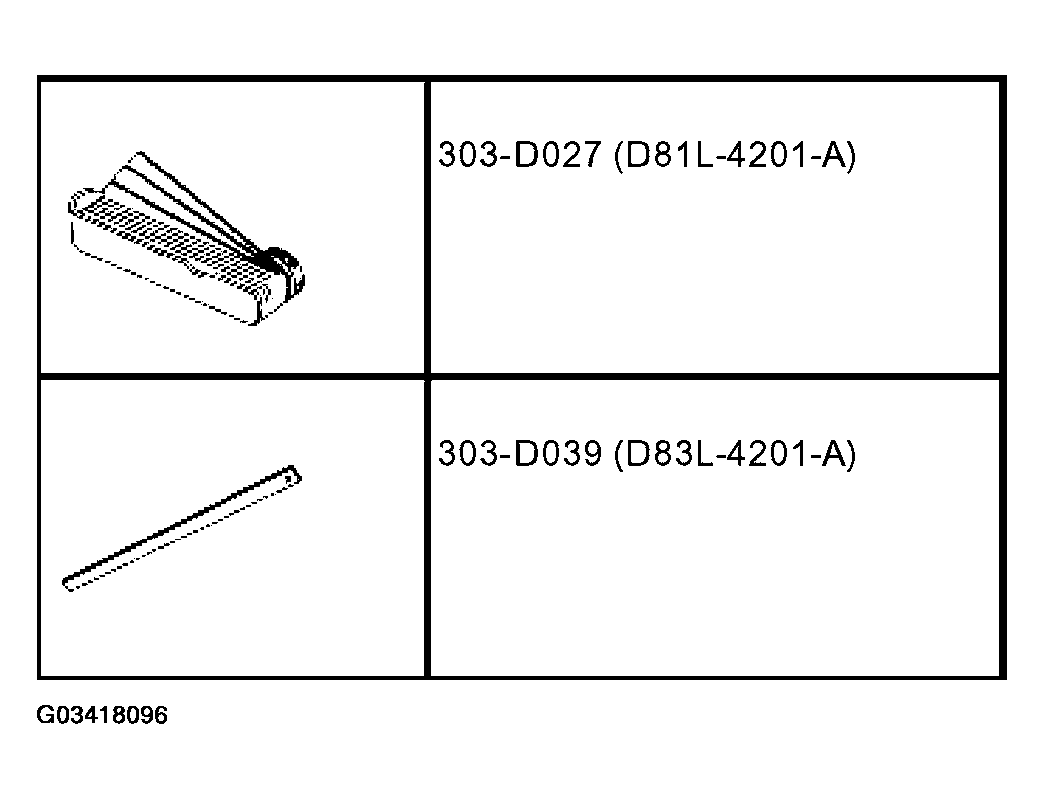

Fig 1: Identifying Special Tools
G03418096Courtesy of FORD MOTOR CO.
  1. Measure the cylinder block/cylinder head distortion.
    • Using the special tool, measure the mating face distortion.
      • CAUTION: The mating face on the 2.5L engines must not be reworked.

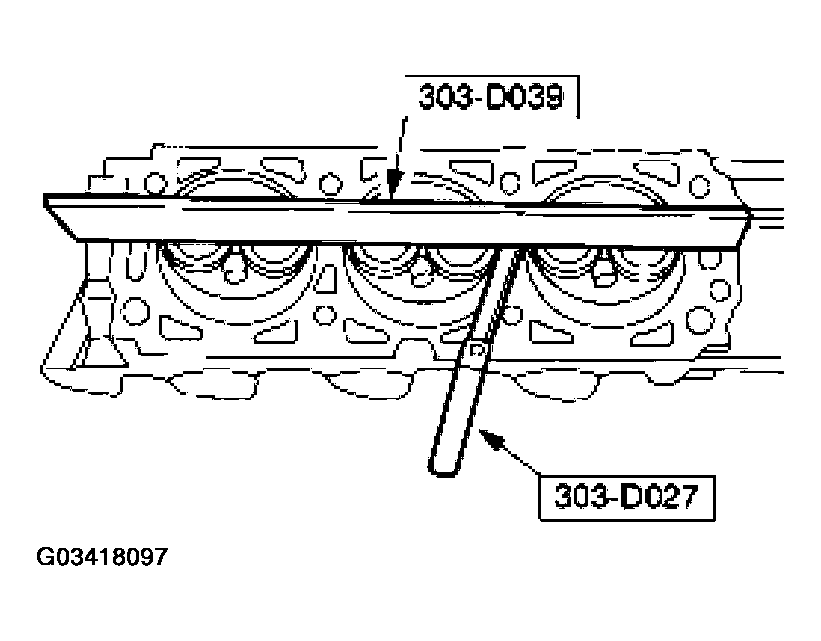

      Fig 2: Measuring Mating Face Distortion Using Special Tool
      G03418097Courtesy of FORD MOTOR CO.
    • If the value is not to specification rework the mating face.
