Steering System

WARNING: This page is about a different car, the 2002 Mercury Cougar. However, it is still accessible from the selected car via links, so may be relevant.

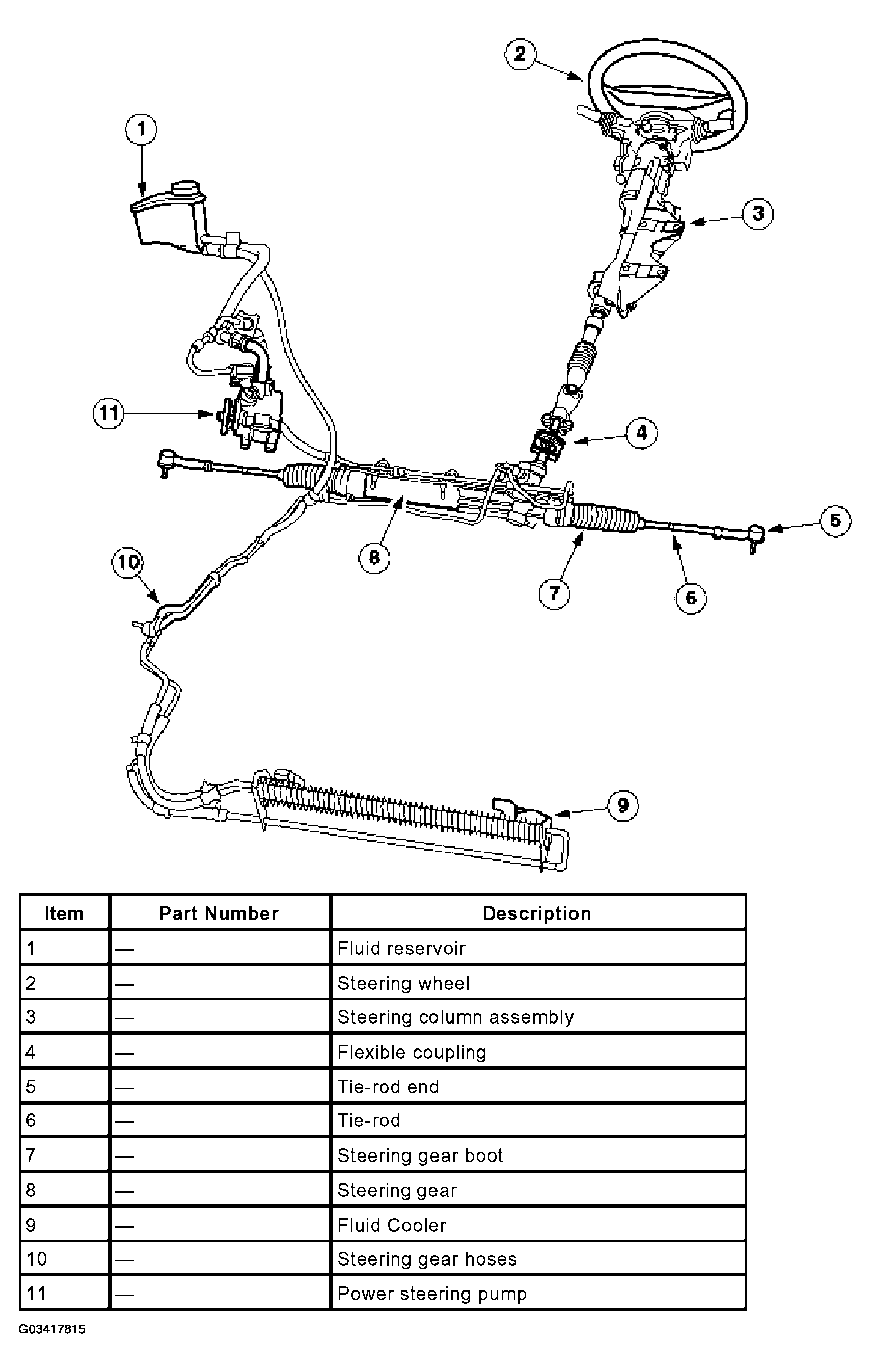

Fig 1: Identifying Steering System Components
G03417815Courtesy of FORD MOTOR CO.
